Roller Sun Blind, Rear Window (As of 09/05 up to 03/07 with Saloon)

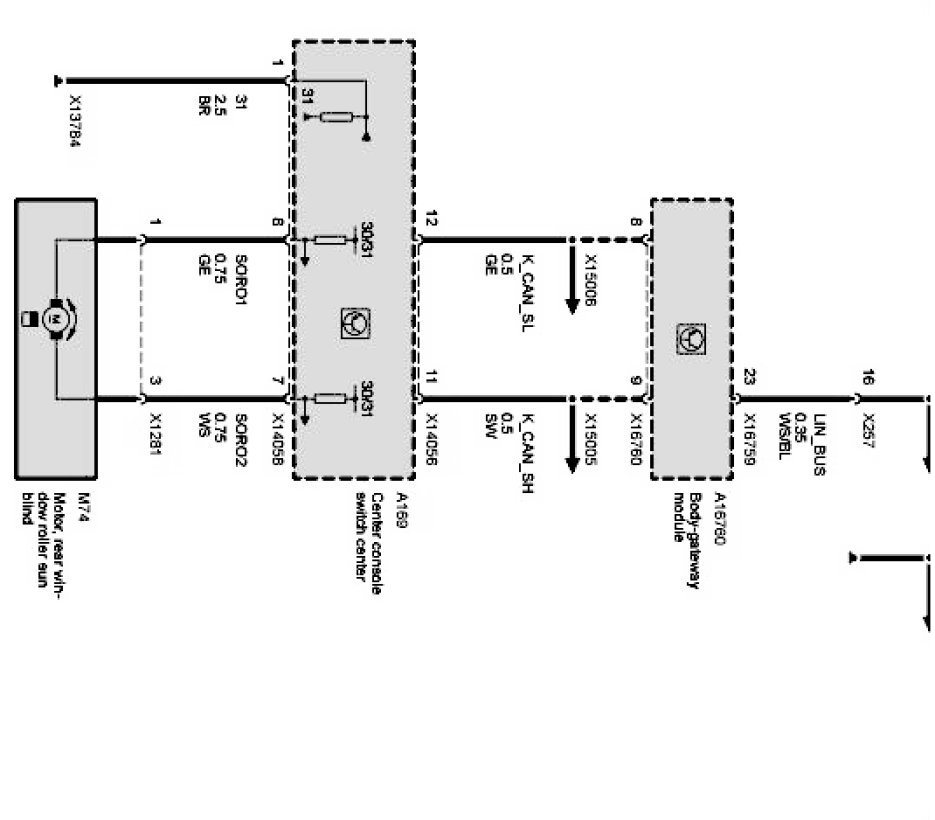

Roller sun blind, rear window Part 1:

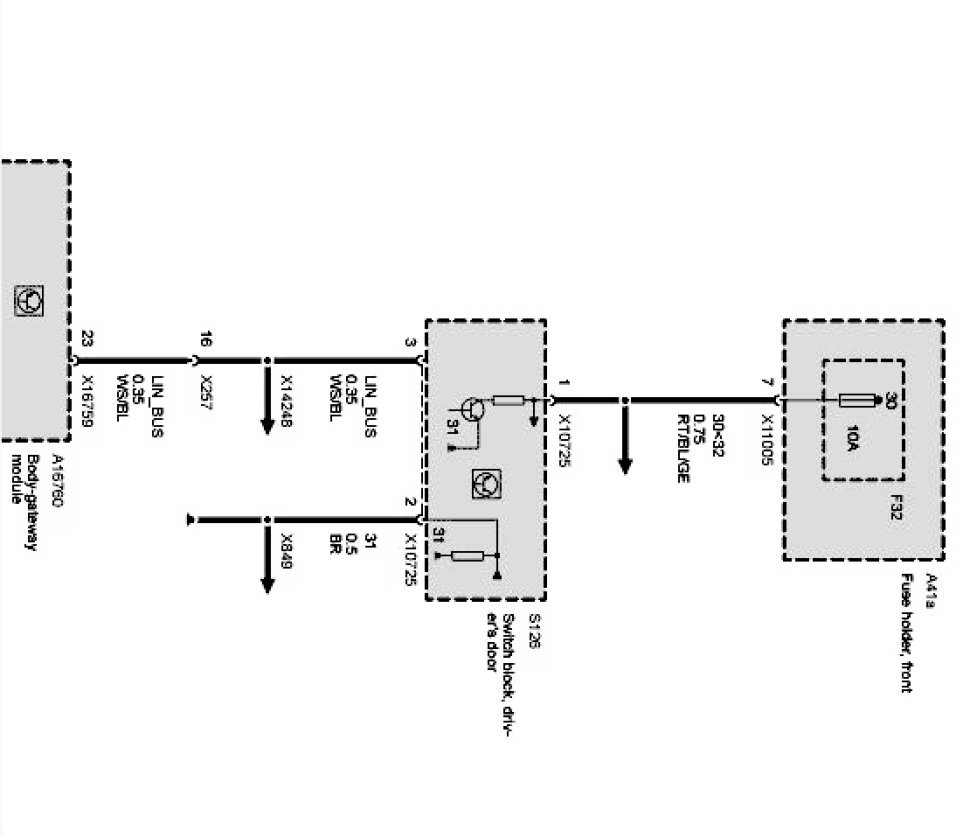

Roller sun blind, rear window Part 2:
