Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> General Vehicle Electrical System >> OBD Socket Outlet >> Obdii Socket (S85 Engine As of 09/05 Up to 03/07)

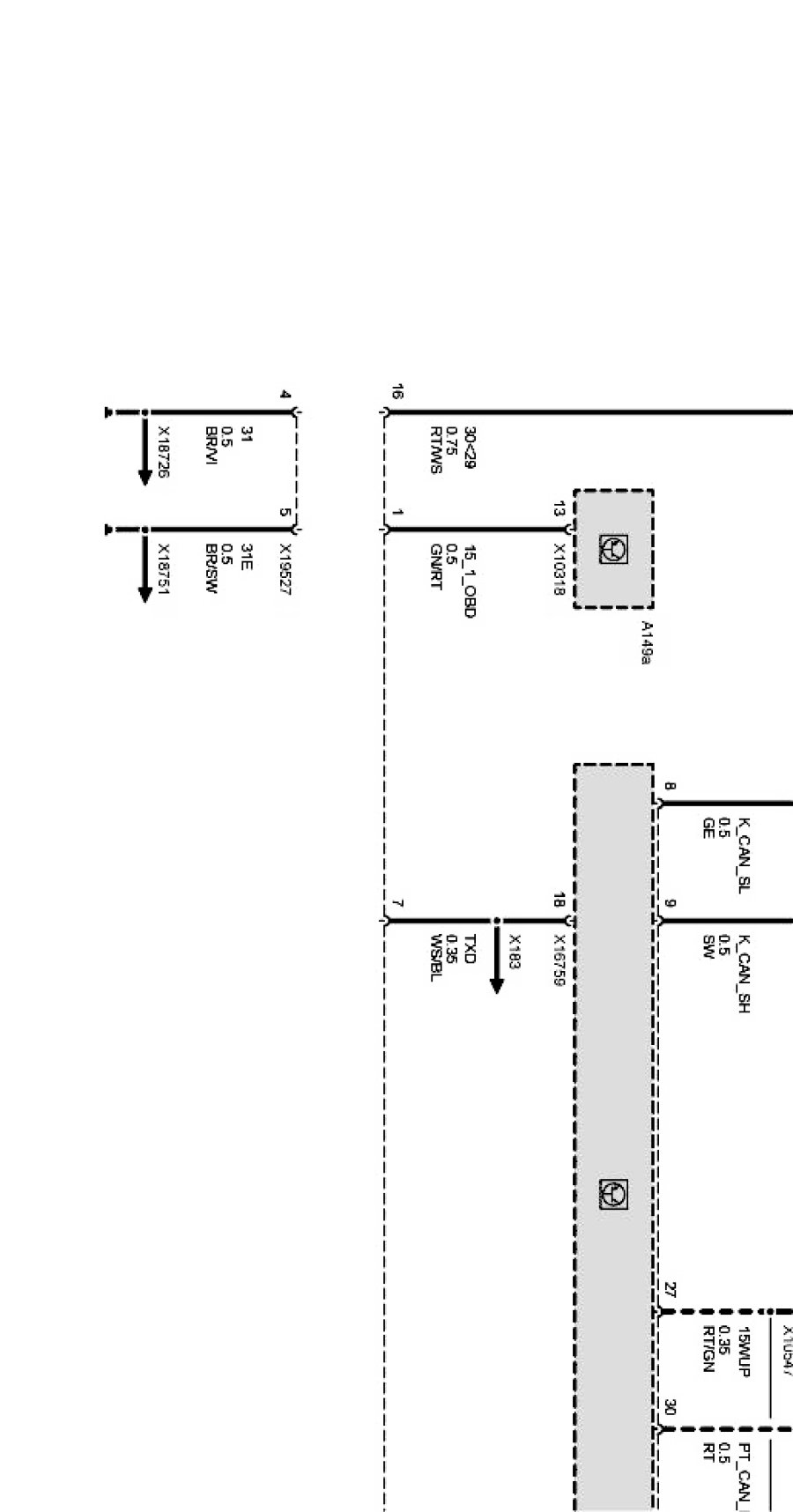

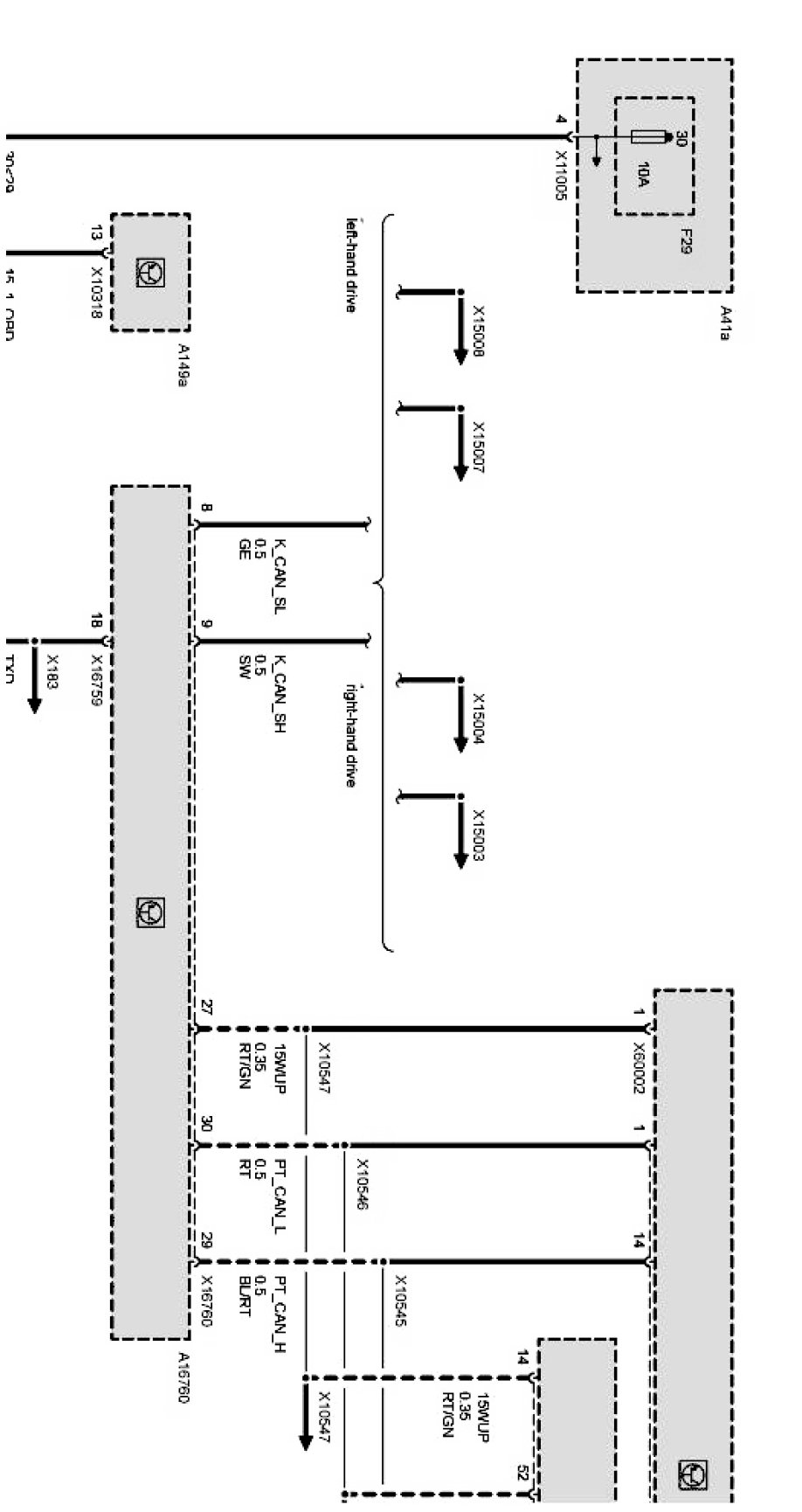

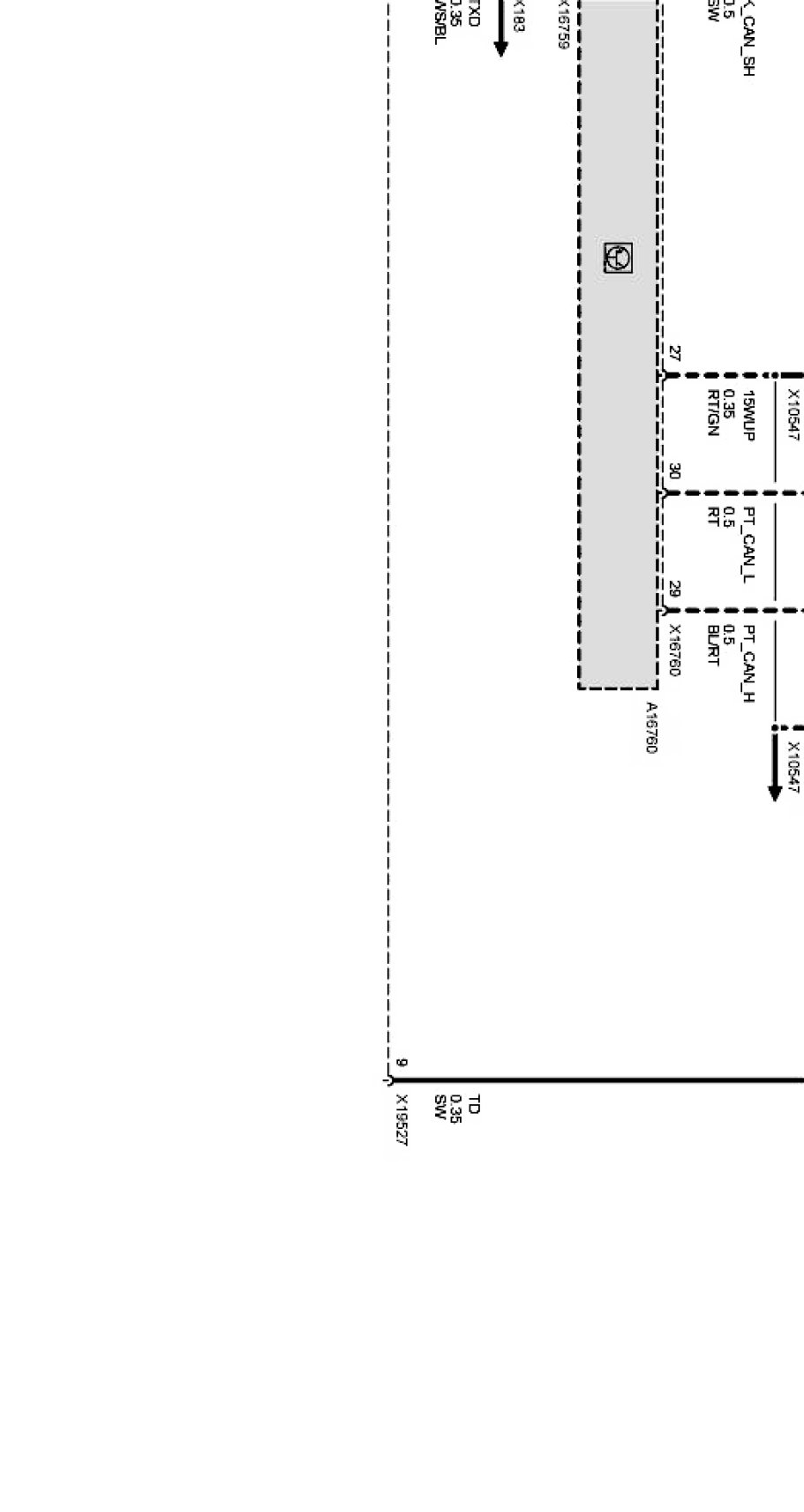

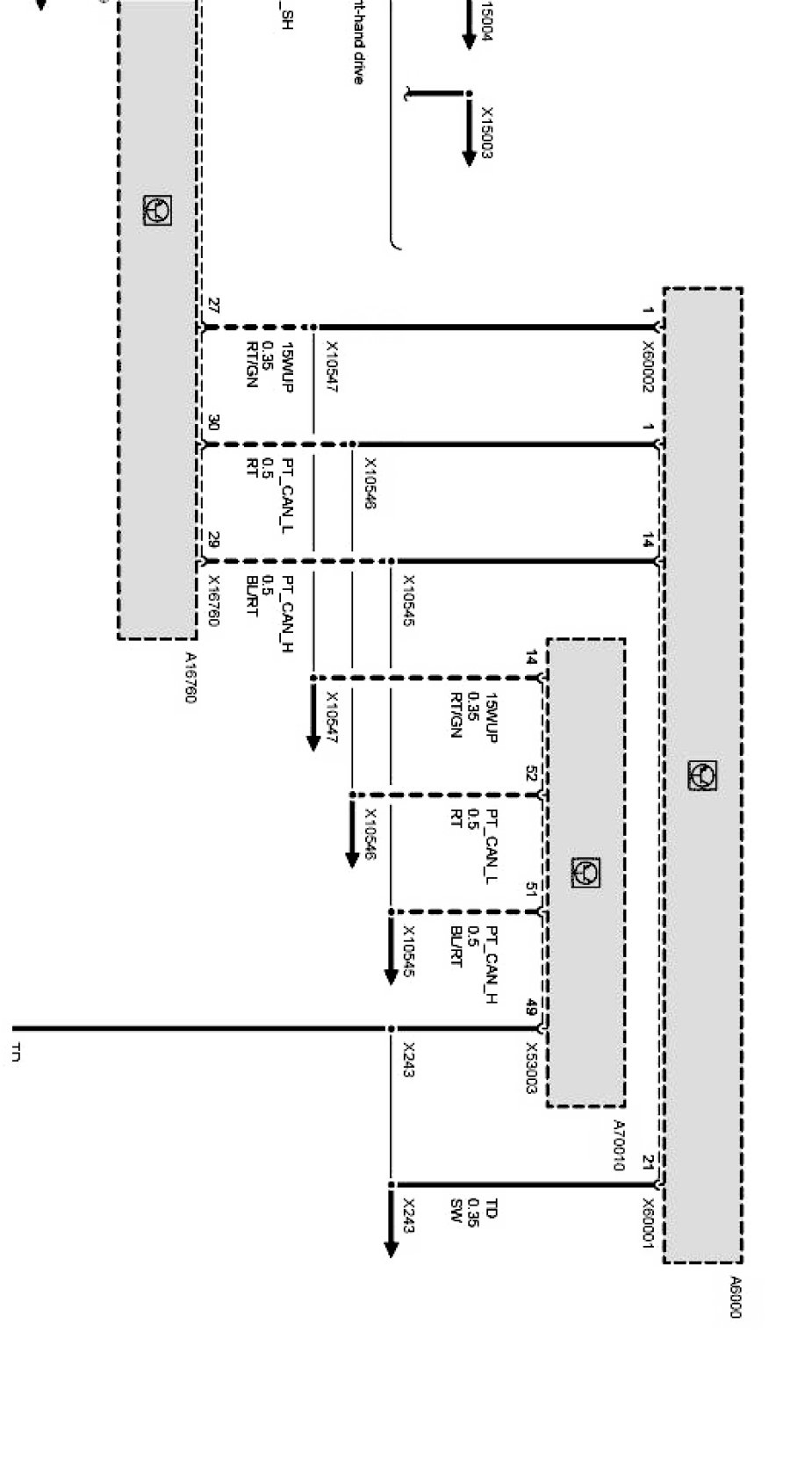

Obdii Socket (S85 Engine As of 09/05 Up to 03/07)
