Supply, Steering Column Switch Center (S85 Engine Up to 09/05)

Supply, steering column switch center Part 1:



Supply, steering column switch center Part 2:

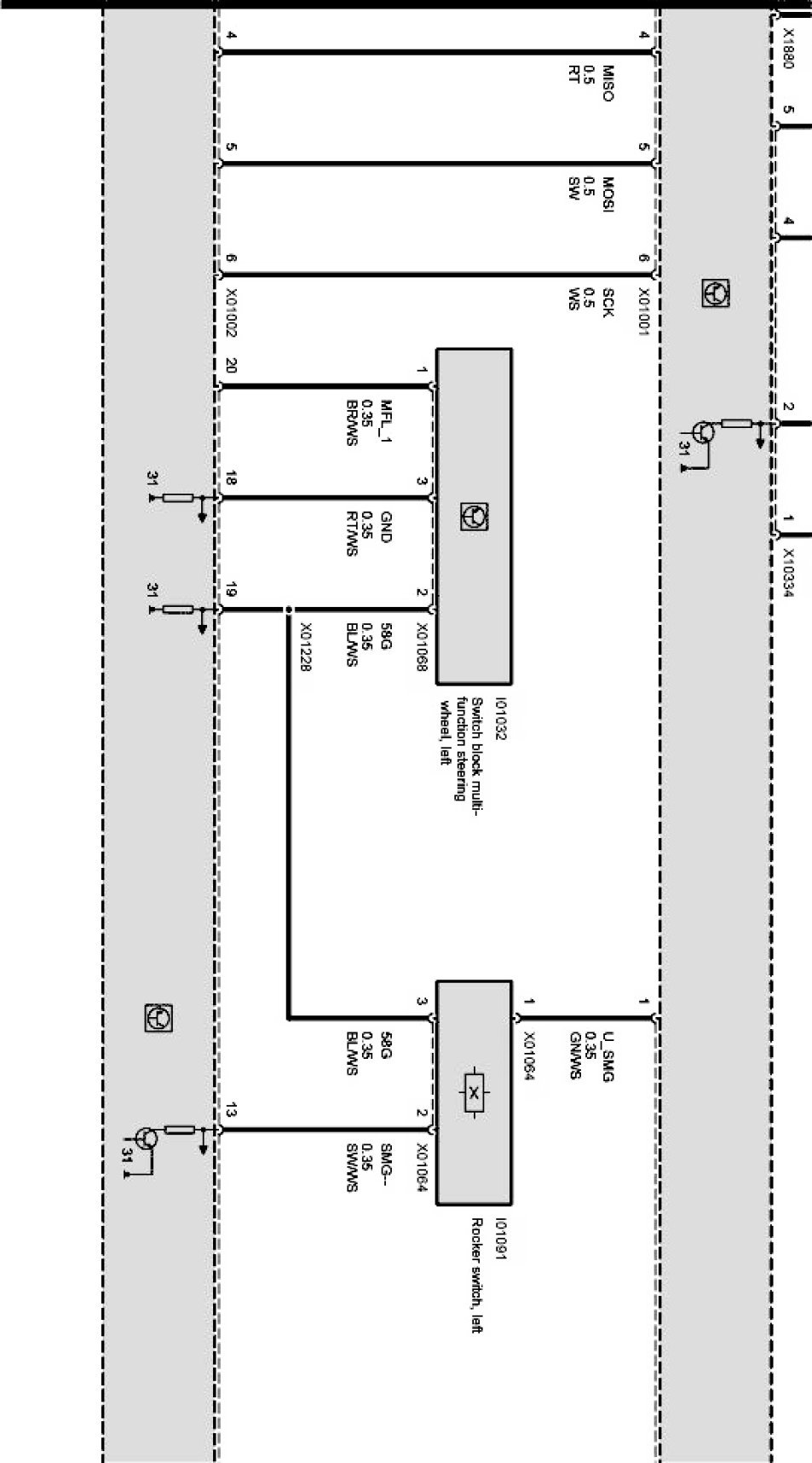

Supply, steering column switch center Part 3:

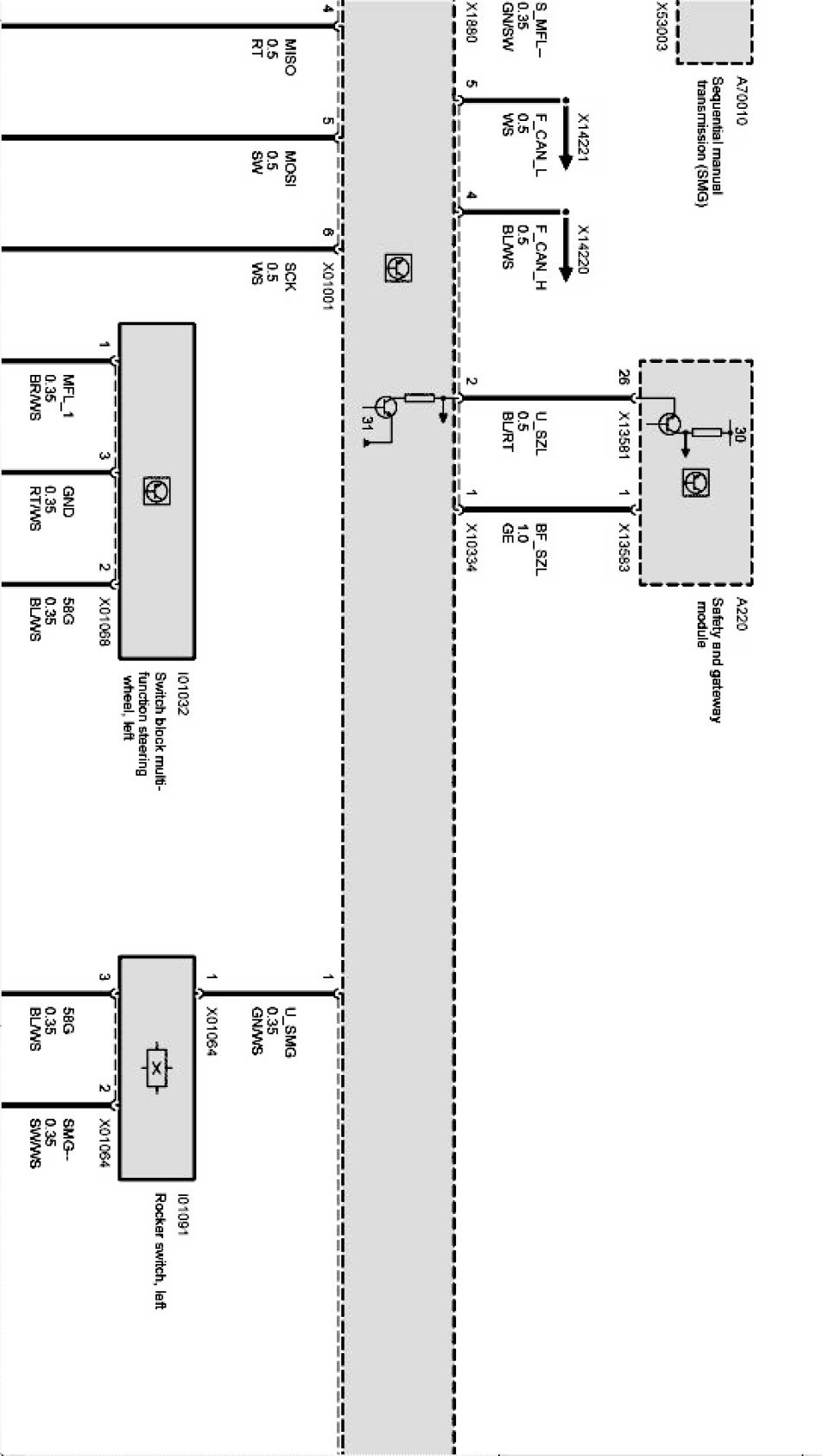

Supply, steering column switch center Part 4:



Supply, steering column switch center Part 5:



Supply, steering column switch center Part 6:
