FD Rear-Cabin Display, Right, Supply (FD2 Rear-Compartment Display 2)

Rear compartment monitor, right Part 1:

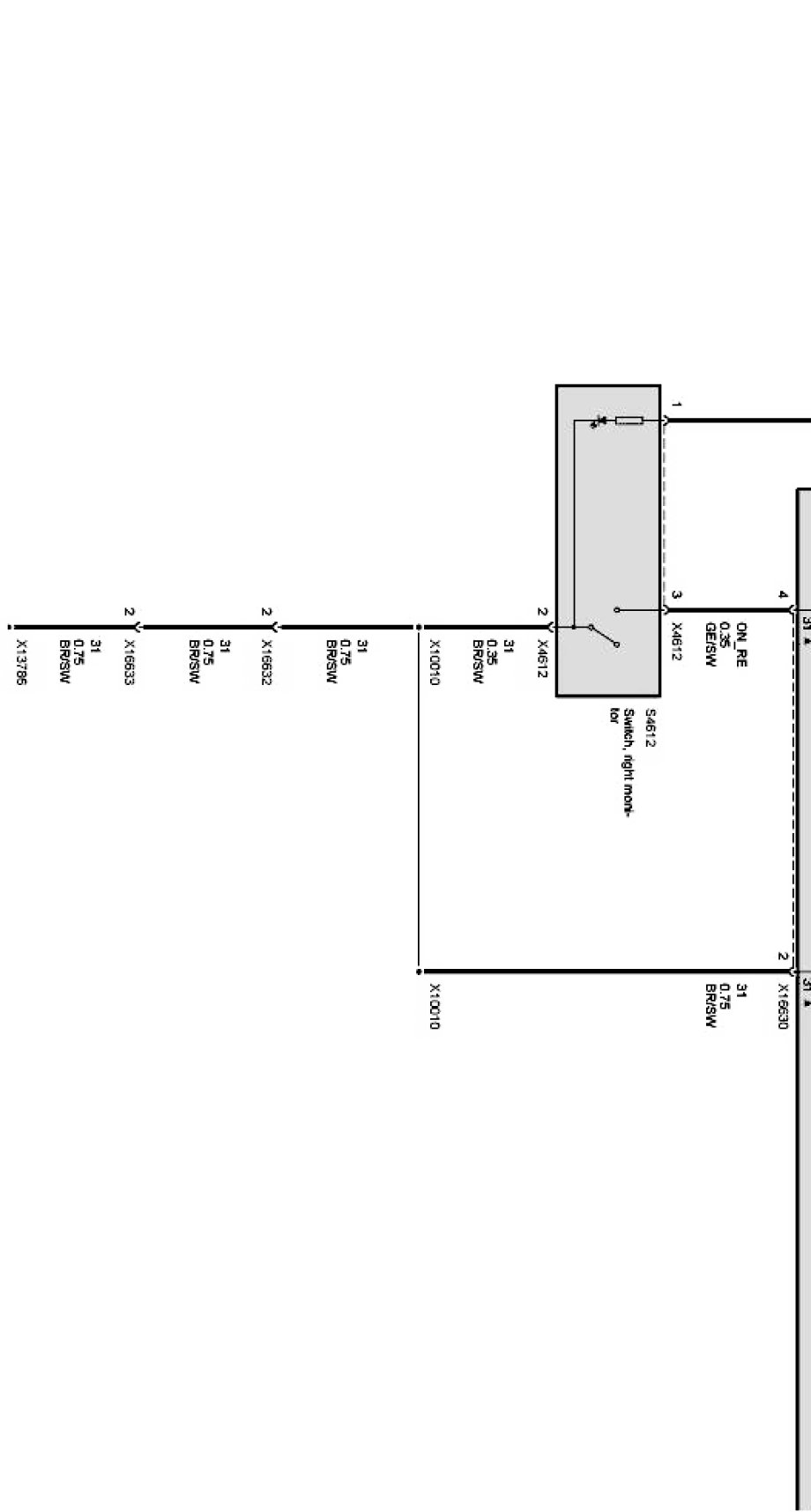

Rear compartment monitor, right Part 2:

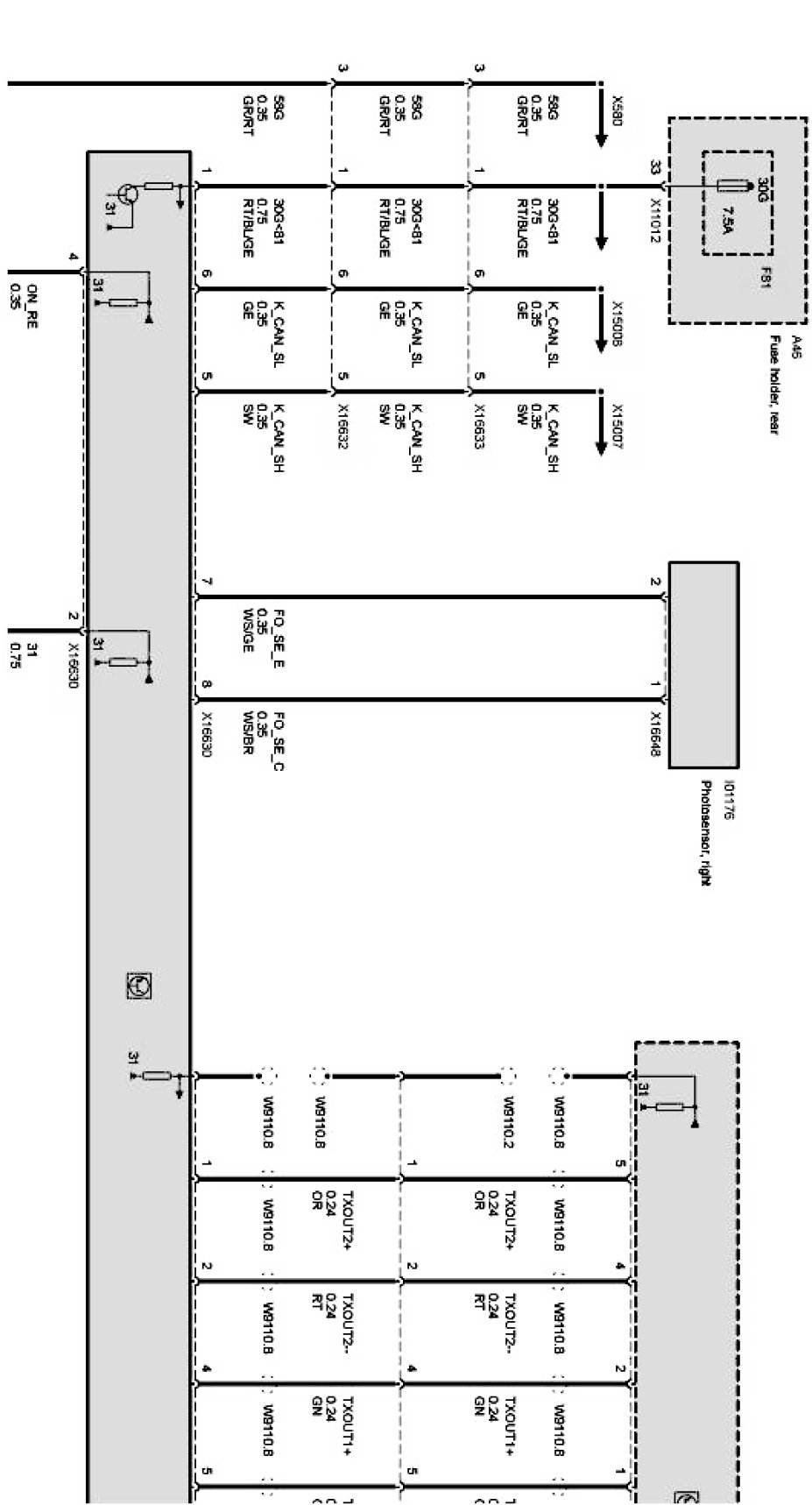

Rear compartment monitor, right Part 3:
