Rear Compartment Display (Without Rse Rear Seat Entertainment)

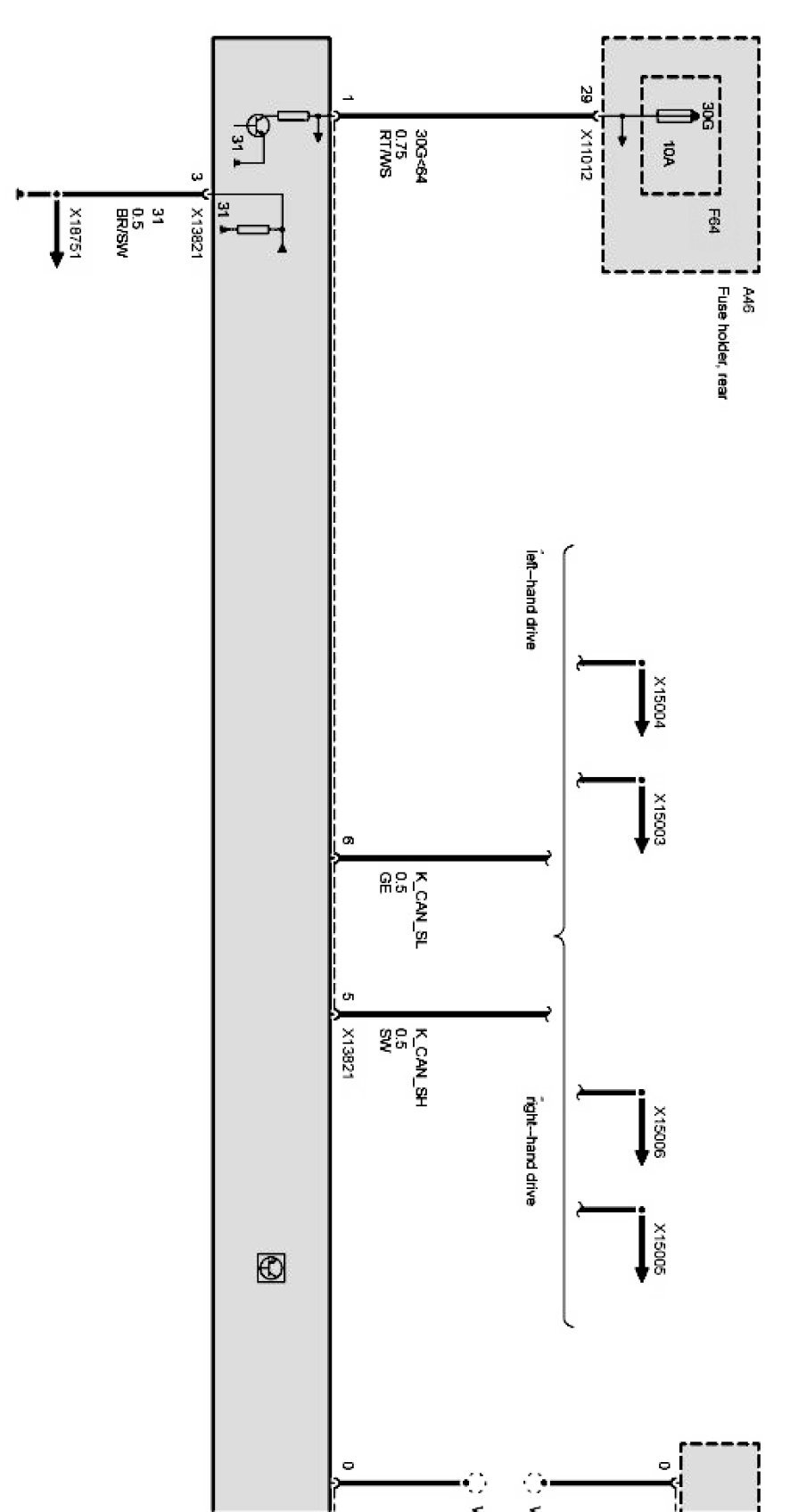

Rear-compartment display Part 1:

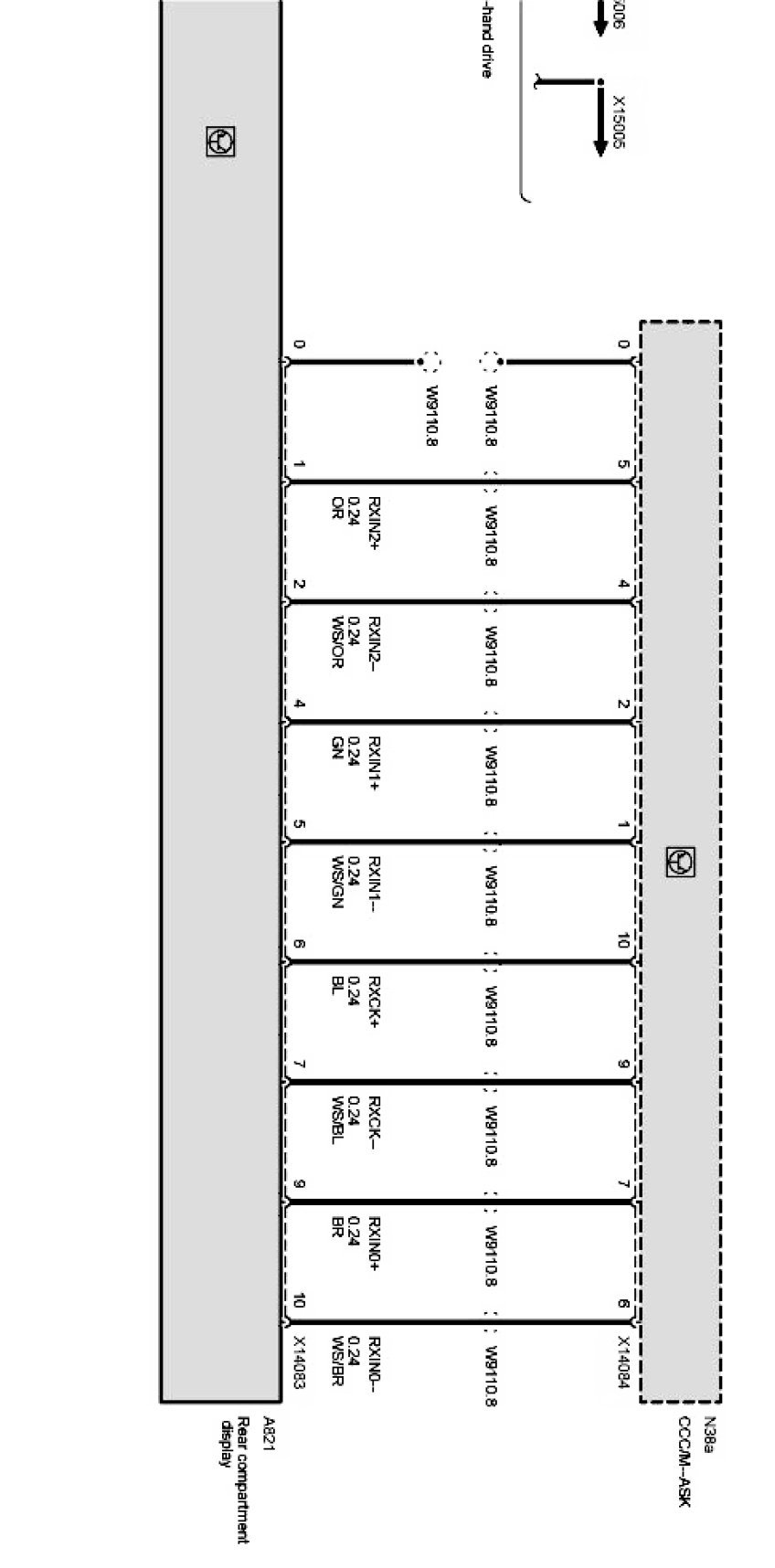

Rear-compartment display Part 2:
