Video Module (Without Touring As of 09/05)

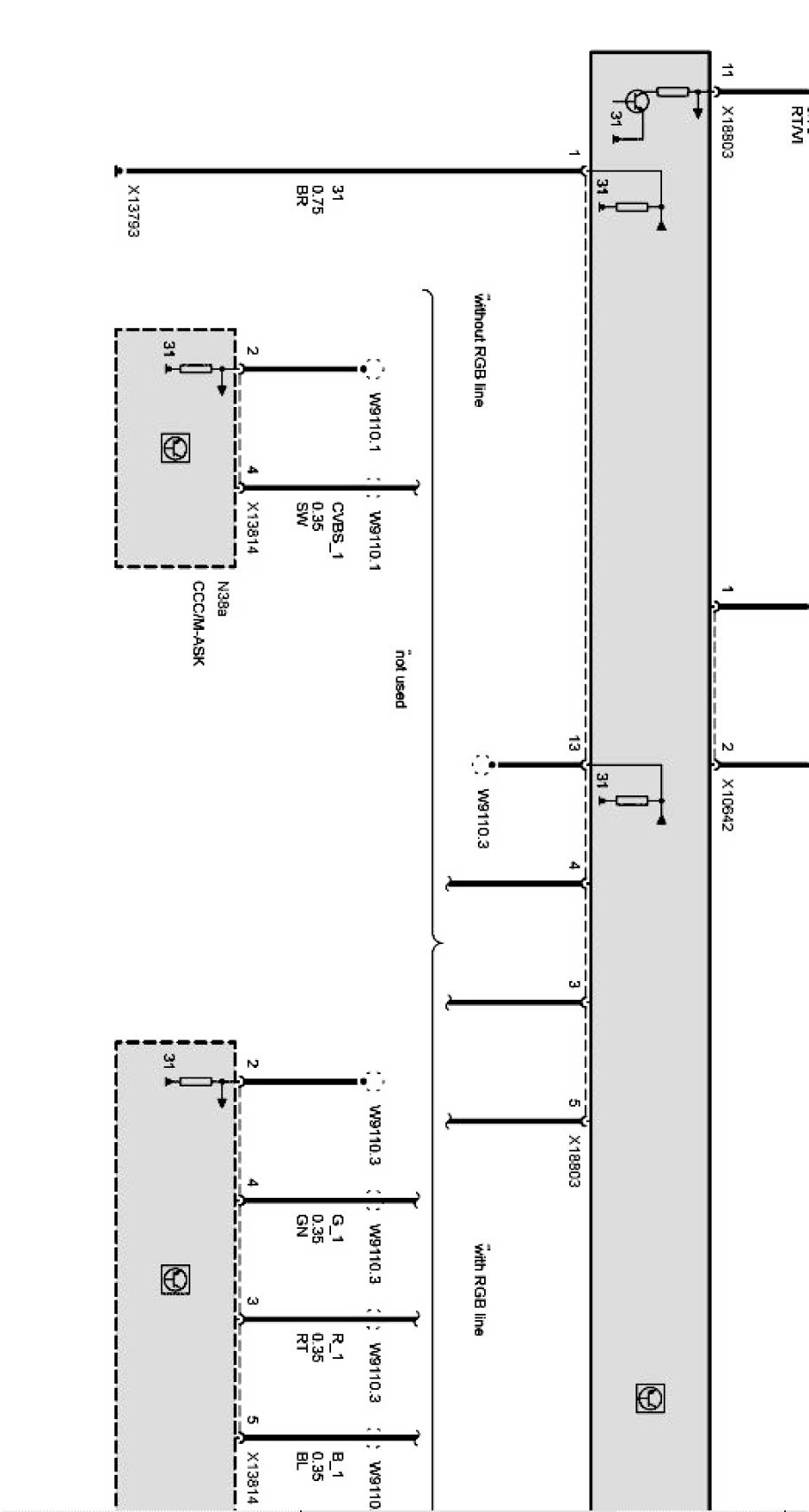

Video module Part 1:

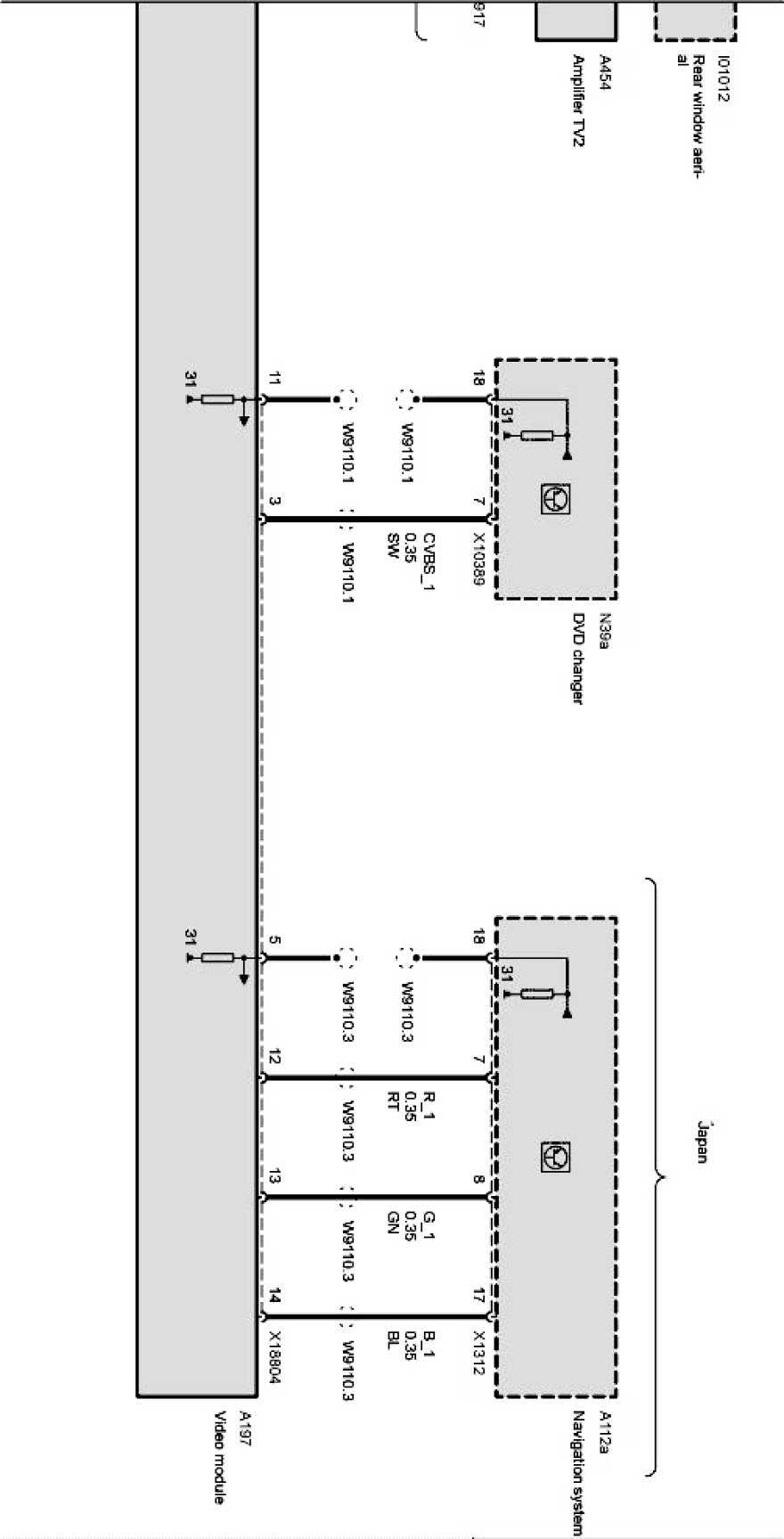

Video module Part 2:

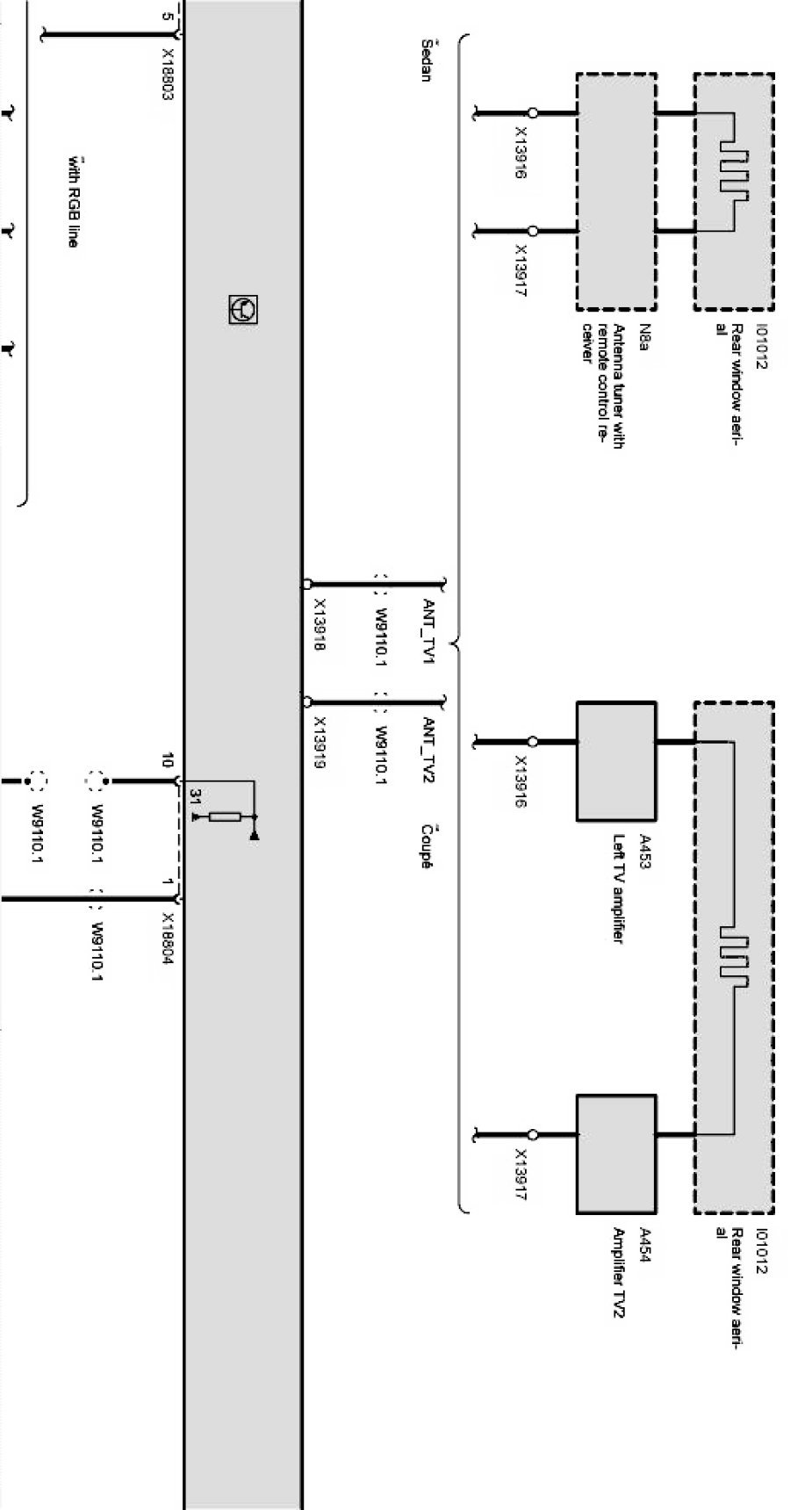

Video module Part 3:

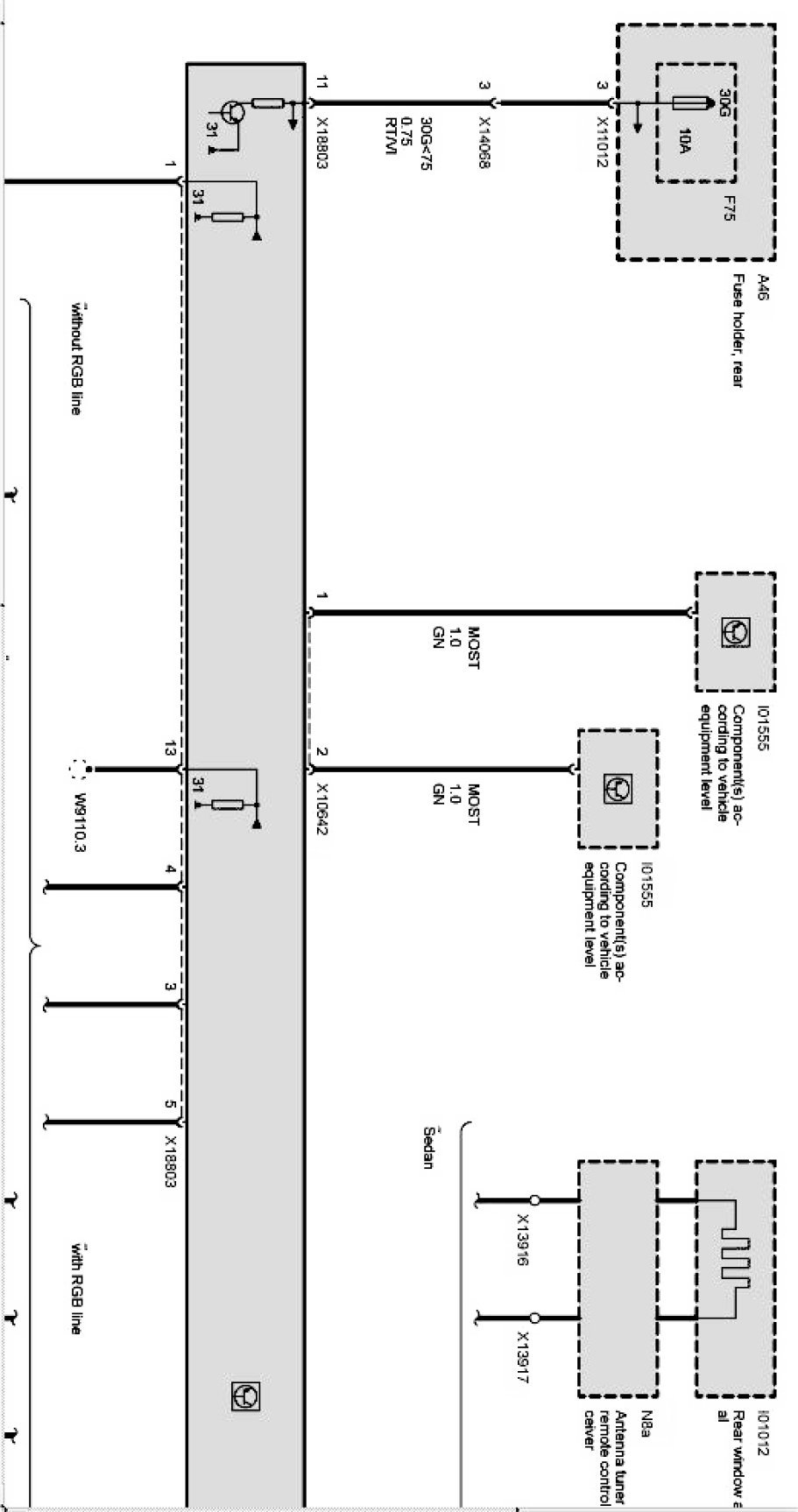

Video module Part 4:
Video module Part 5:
