Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Telecommunication >> Universal Charging and Hands-Free Facility >> Universal Charging and Hands-free Facility (Without Convertible As of 09/05 Up to 09/06)

Universal Charging and Hands-free Facility (Without Convertible As of 09/05 Up to 09/06)

Telephone Part 1:



Telephone Part 2:

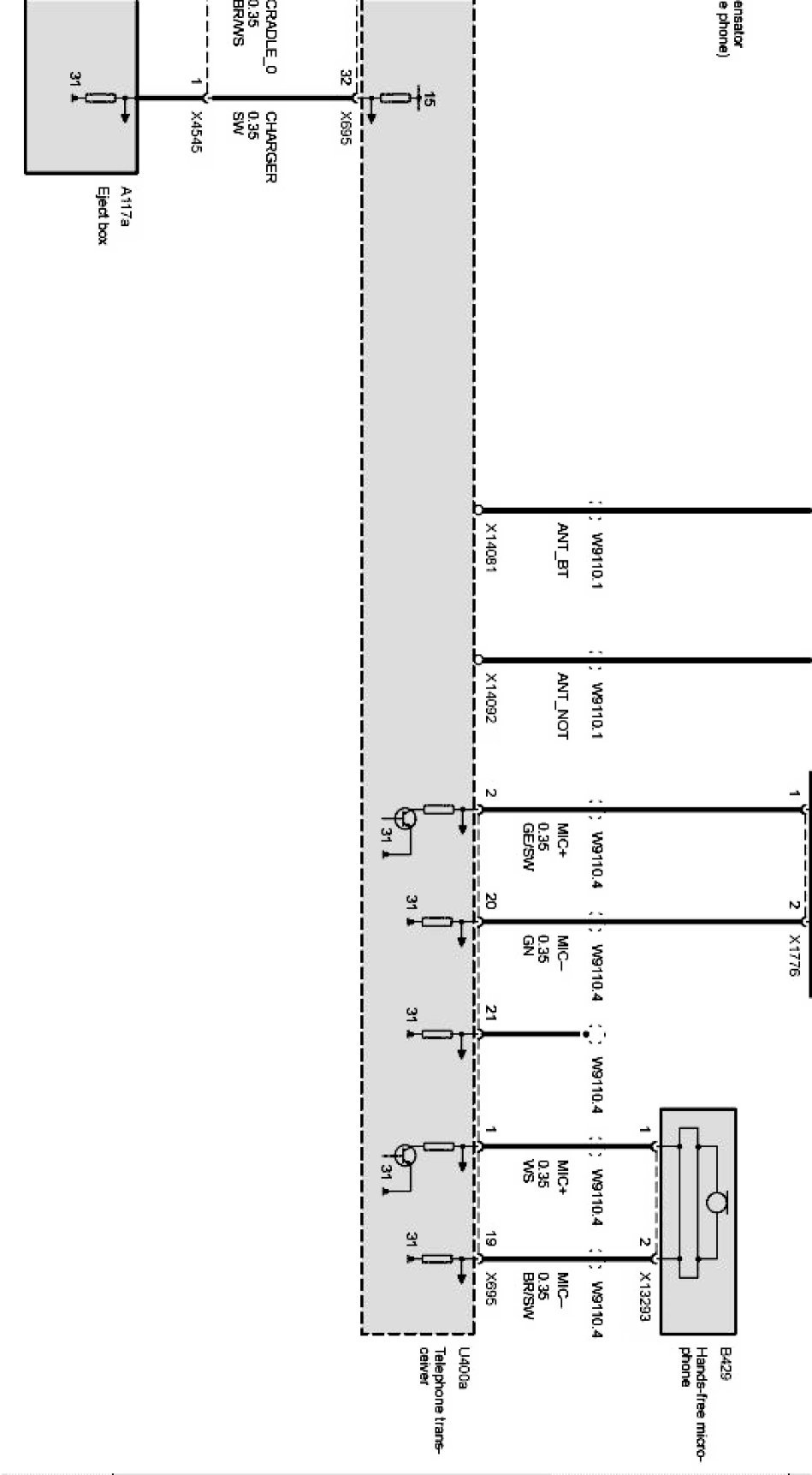

Telephone Part 3:



Telephone Part 4:
