Ulf-Sbx-H Interface Box High (Without TCU Telematics Control Unit)

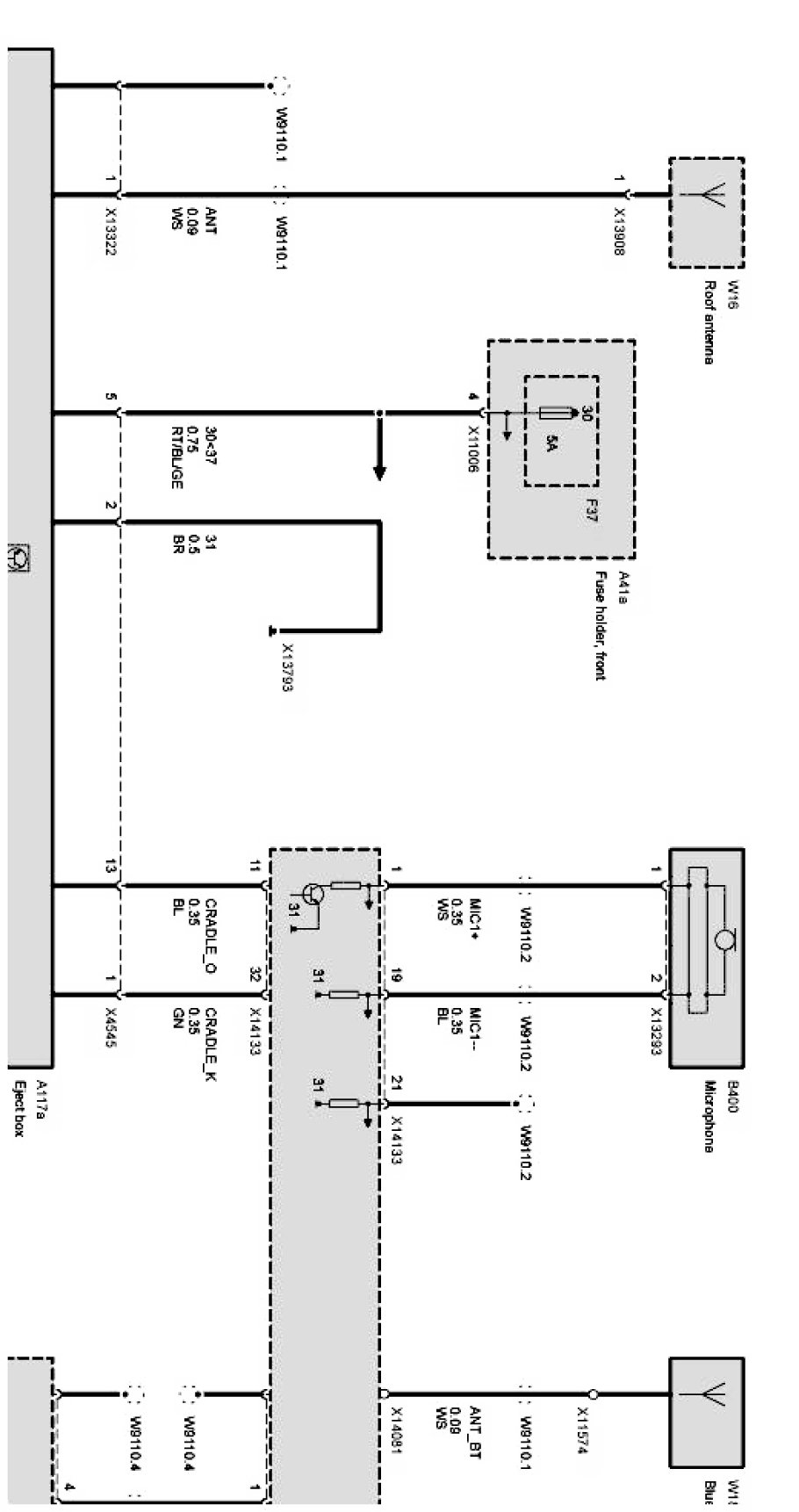

ULF-SBX-H interface box High Part 1:

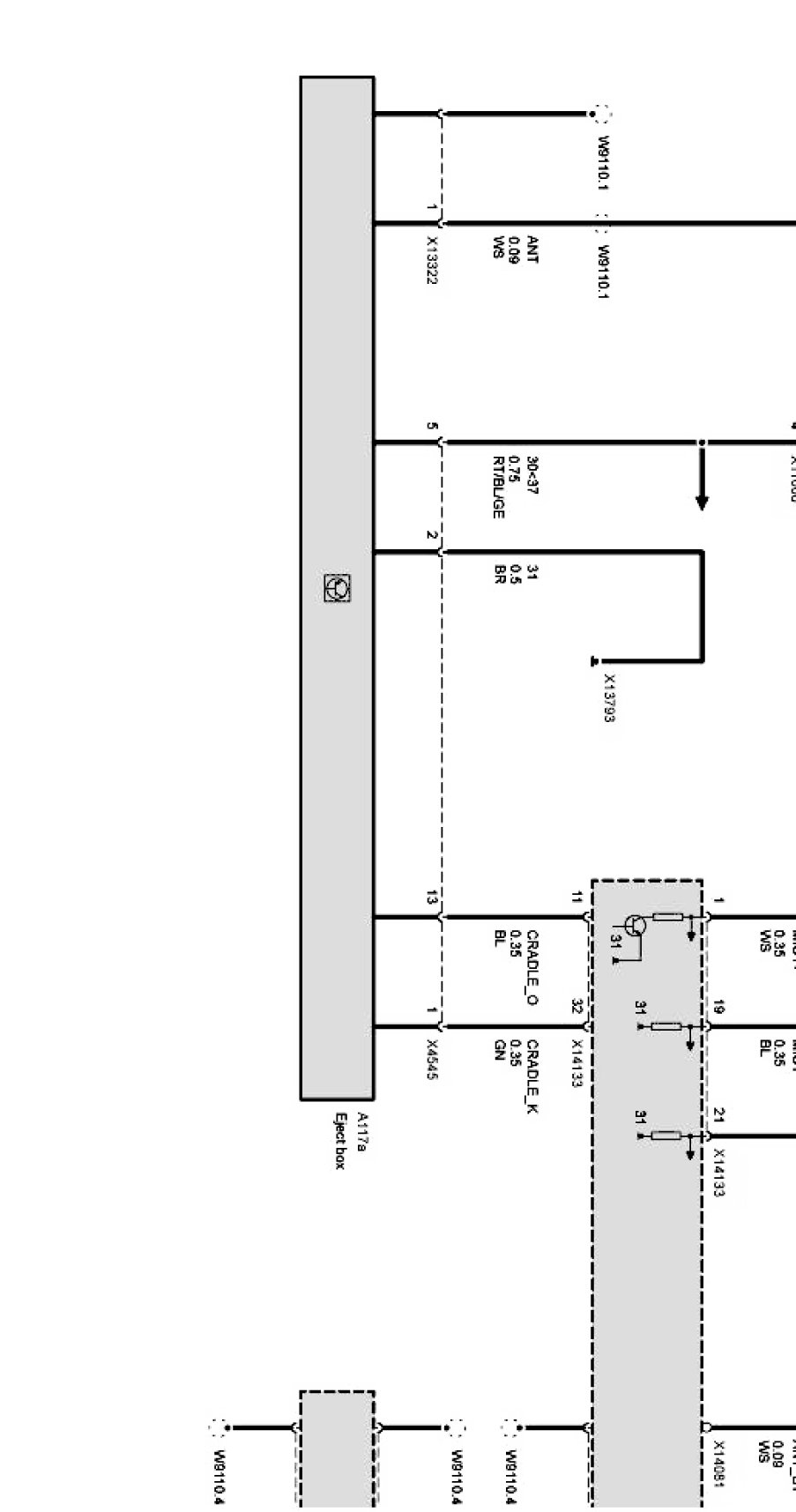

ULF-SBX-H interface box High Part 2:

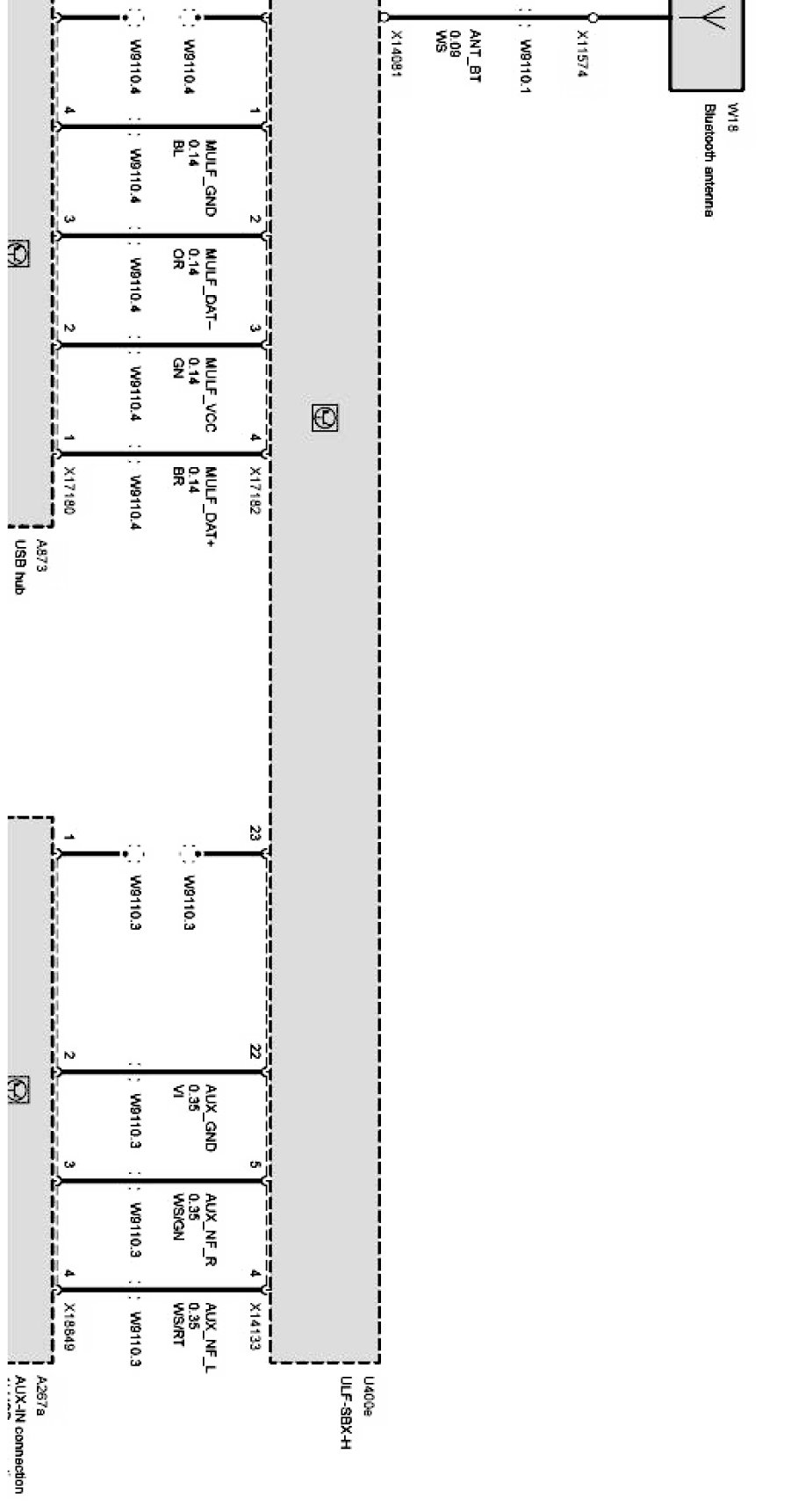

ULF-SBX-H interface box High Part 3:

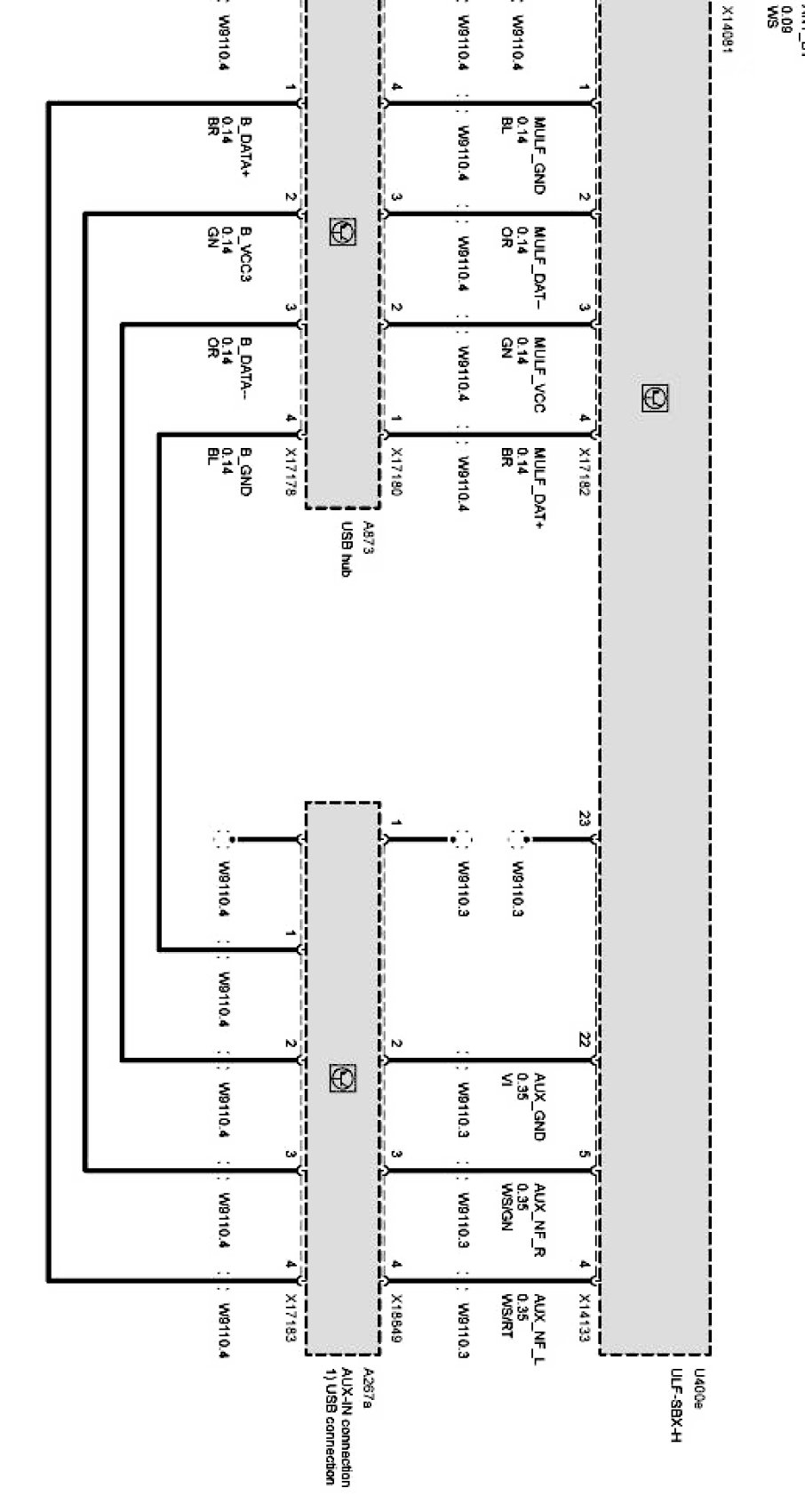

ULF-SBX-H interface box High Part 4:
