Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Telecommunication >> ULF-SBX Interface Box >> ULF-SBX Interface Box (Without Convertible)

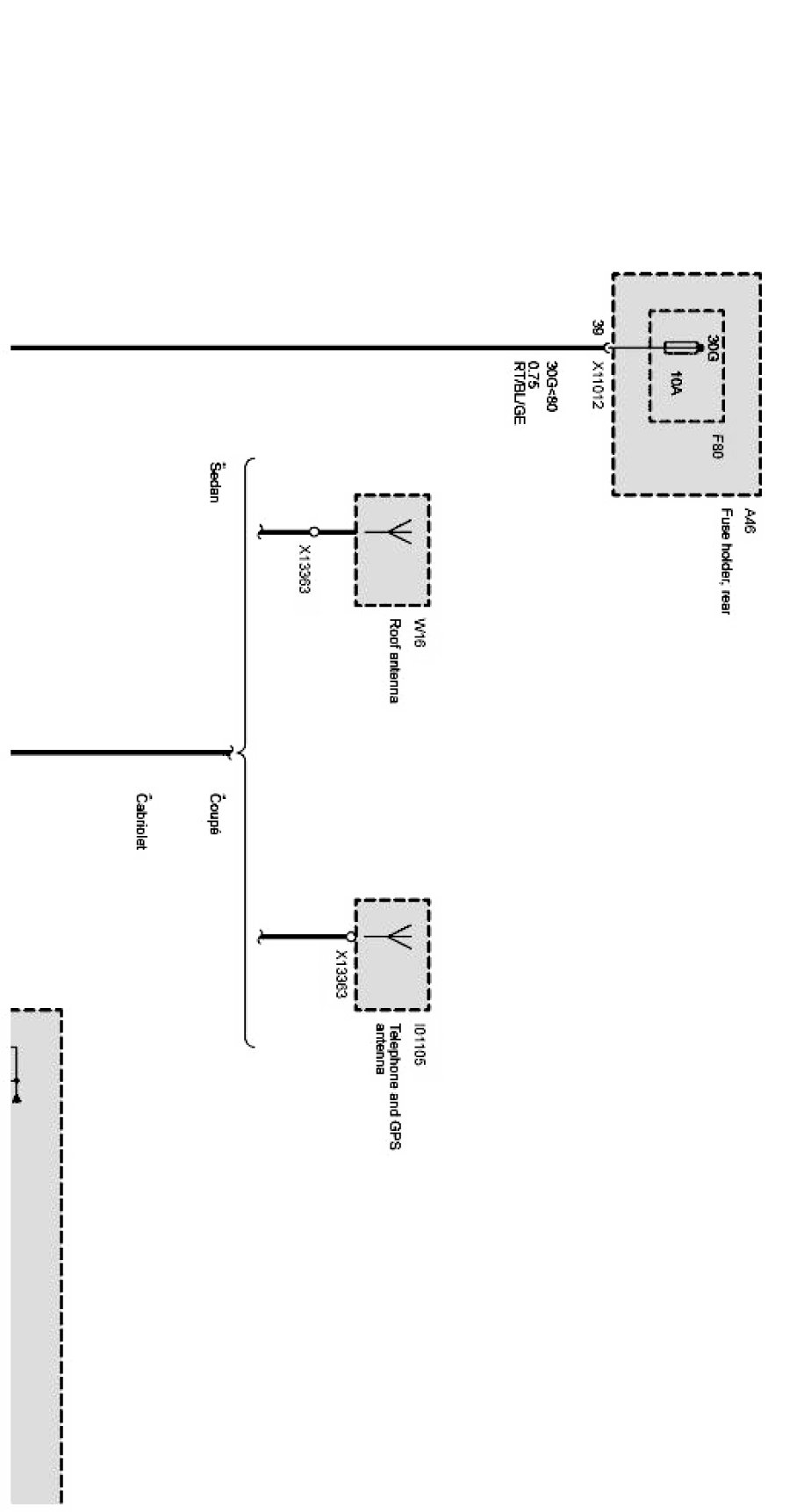

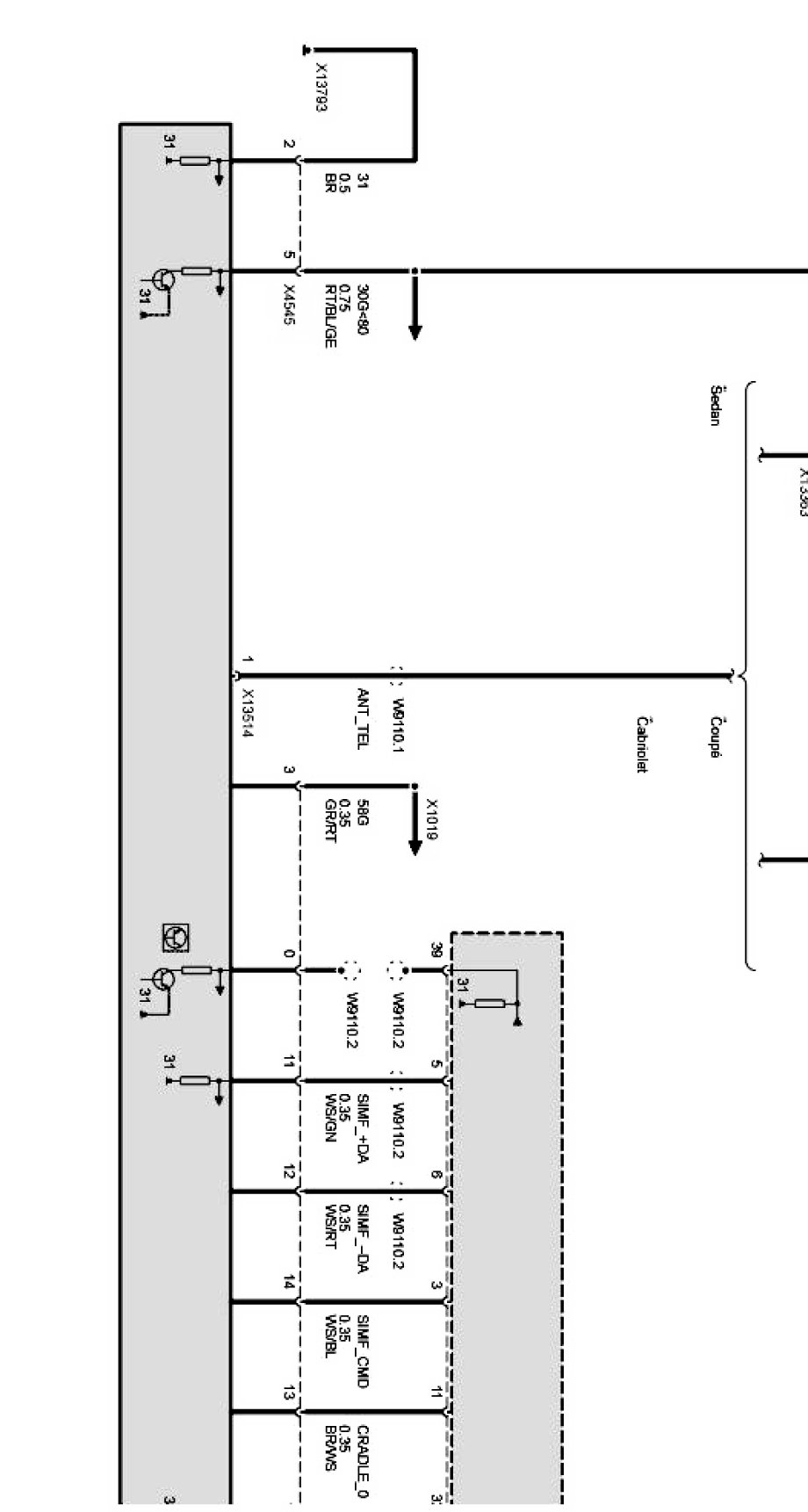

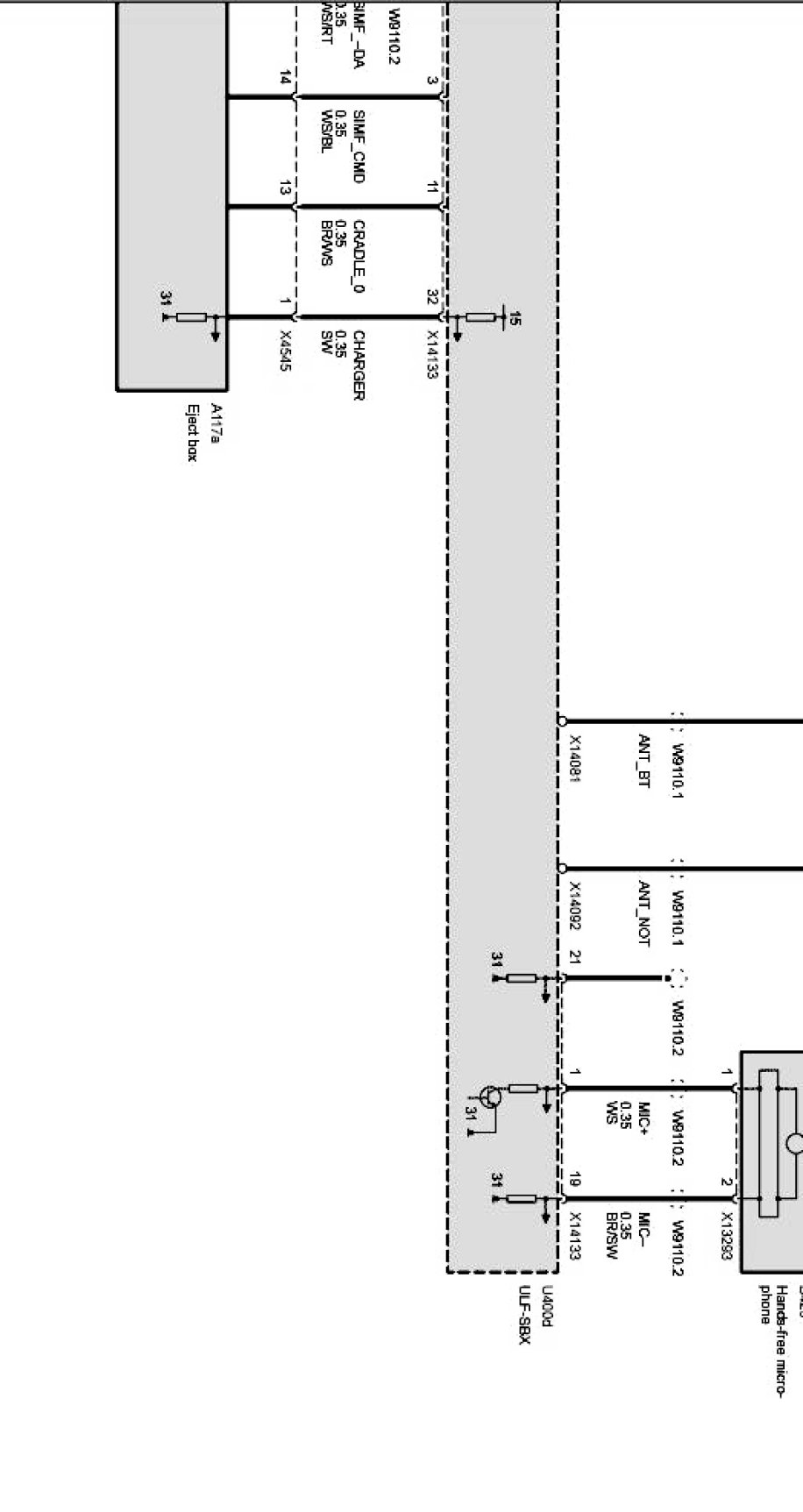

ULF-SBX Interface Box (Without Convertible)
