Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video, Navigation (MOST Network) >> Radio >> Antenna >> Radio Reception (Touring As of 09/05 without IBOC Digital Tuner)

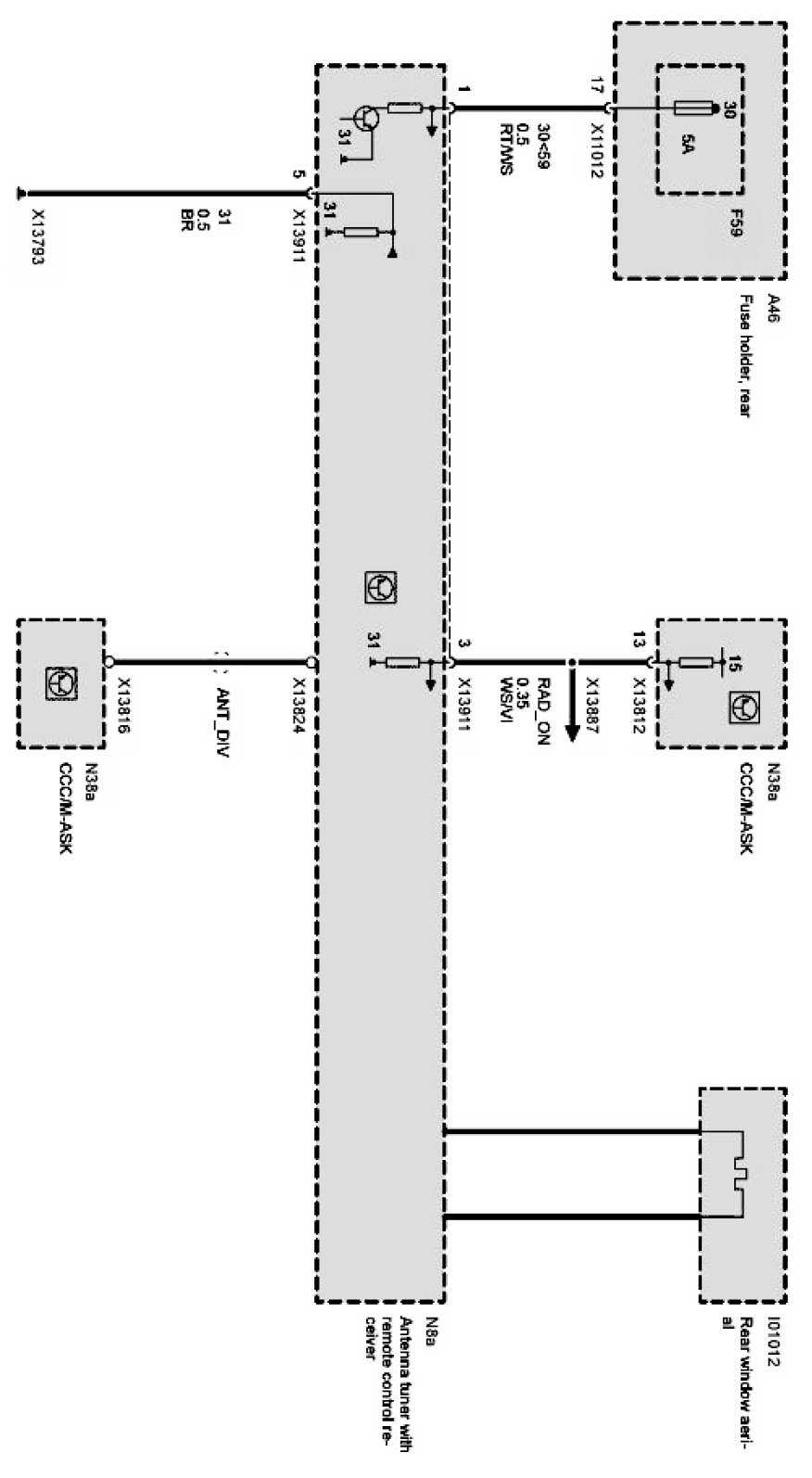

Radio Reception (Touring As of 09/05 without IBOC Digital Tuner)

Radio reception:
