Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors From X5 >> X53001 Adapter 121301, Storage Location N201 (SMG Sequential Manual Transmission M5)

X53001 Adapter 121301, Storage Location N201 (SMG Sequential Manual Transmission M5)

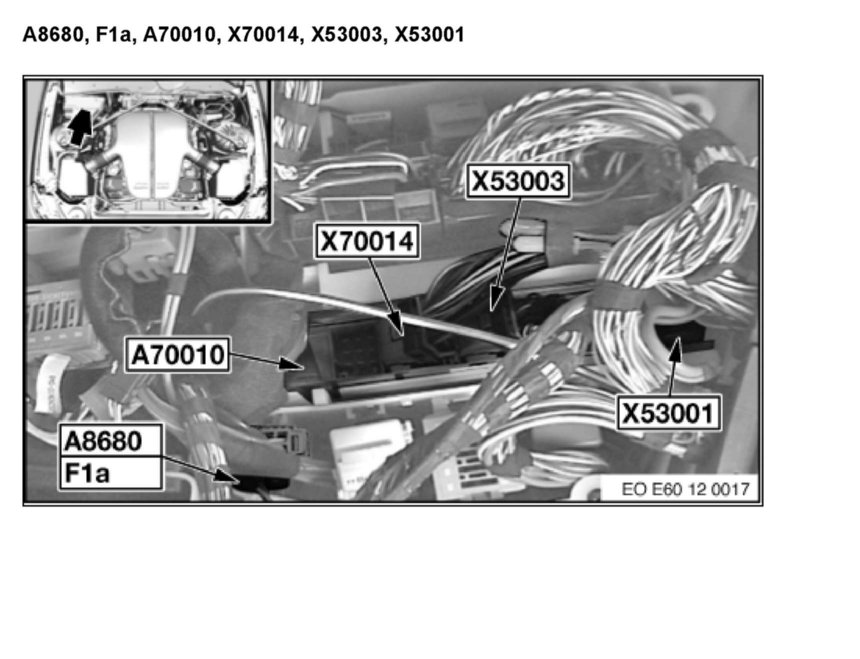

A8680, F1A, A70010, X70014, X53003, X53001 (S85 Engine):
