Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X7 >> X70014 Adapter 121303, Storage Location N203 (SMG Sequential Manual Transmission or SMG M5)

X70014 Adapter 121303, Storage Location N203 (SMG Sequential Manual Transmission or SMG M5)

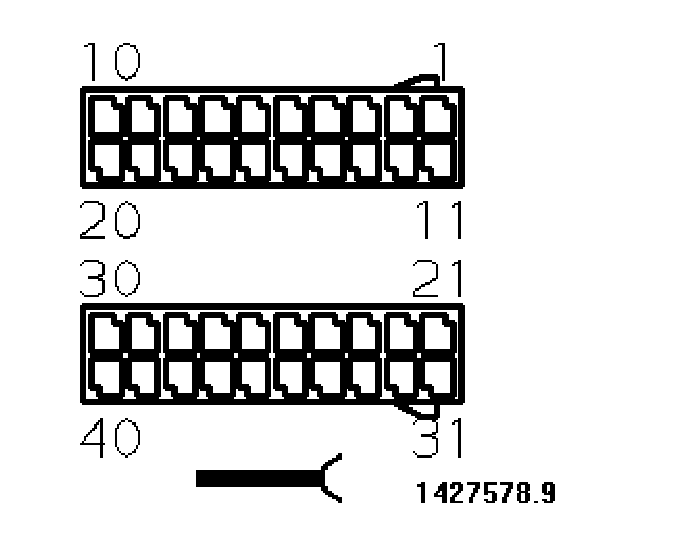

X70014:

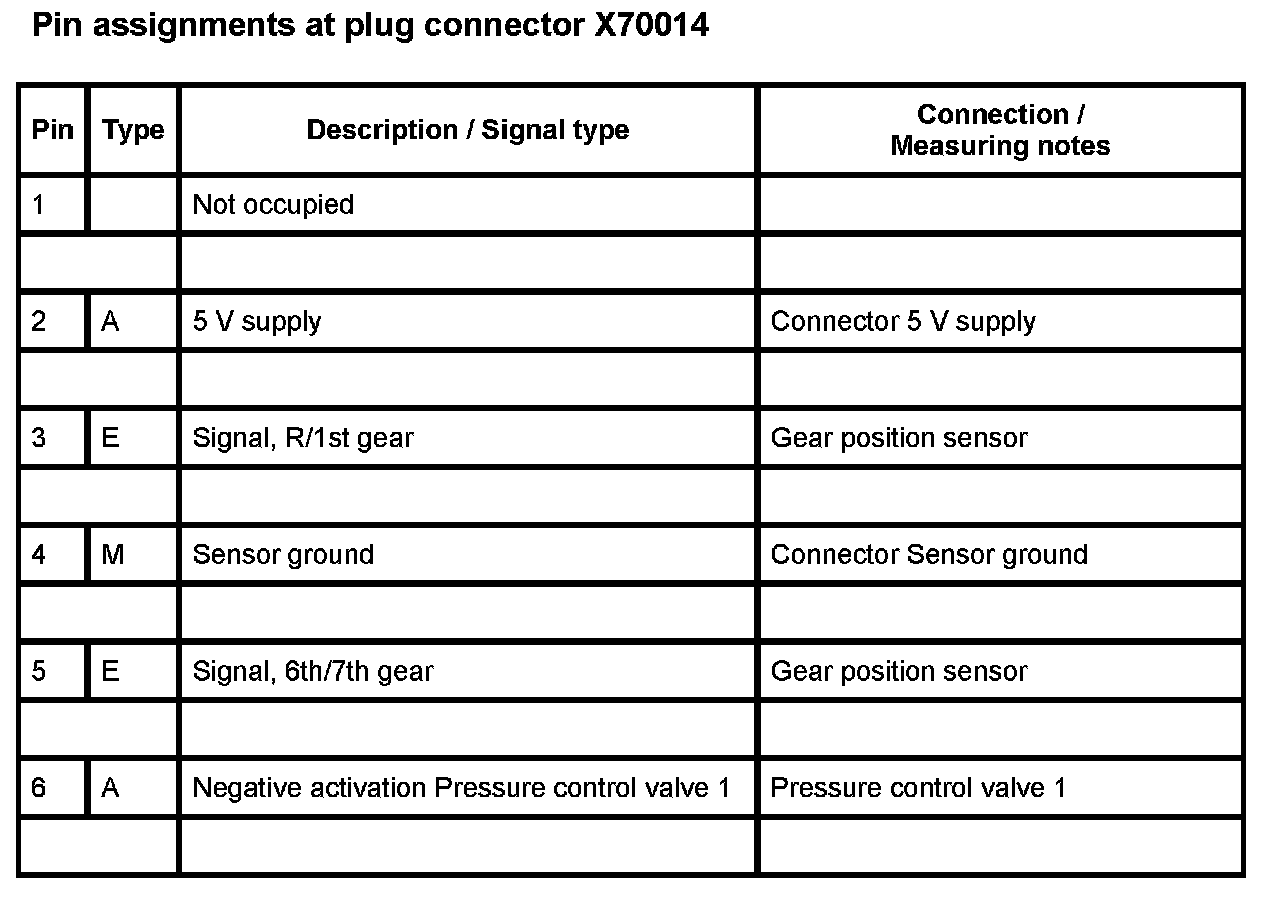

X70014 - Part 1:

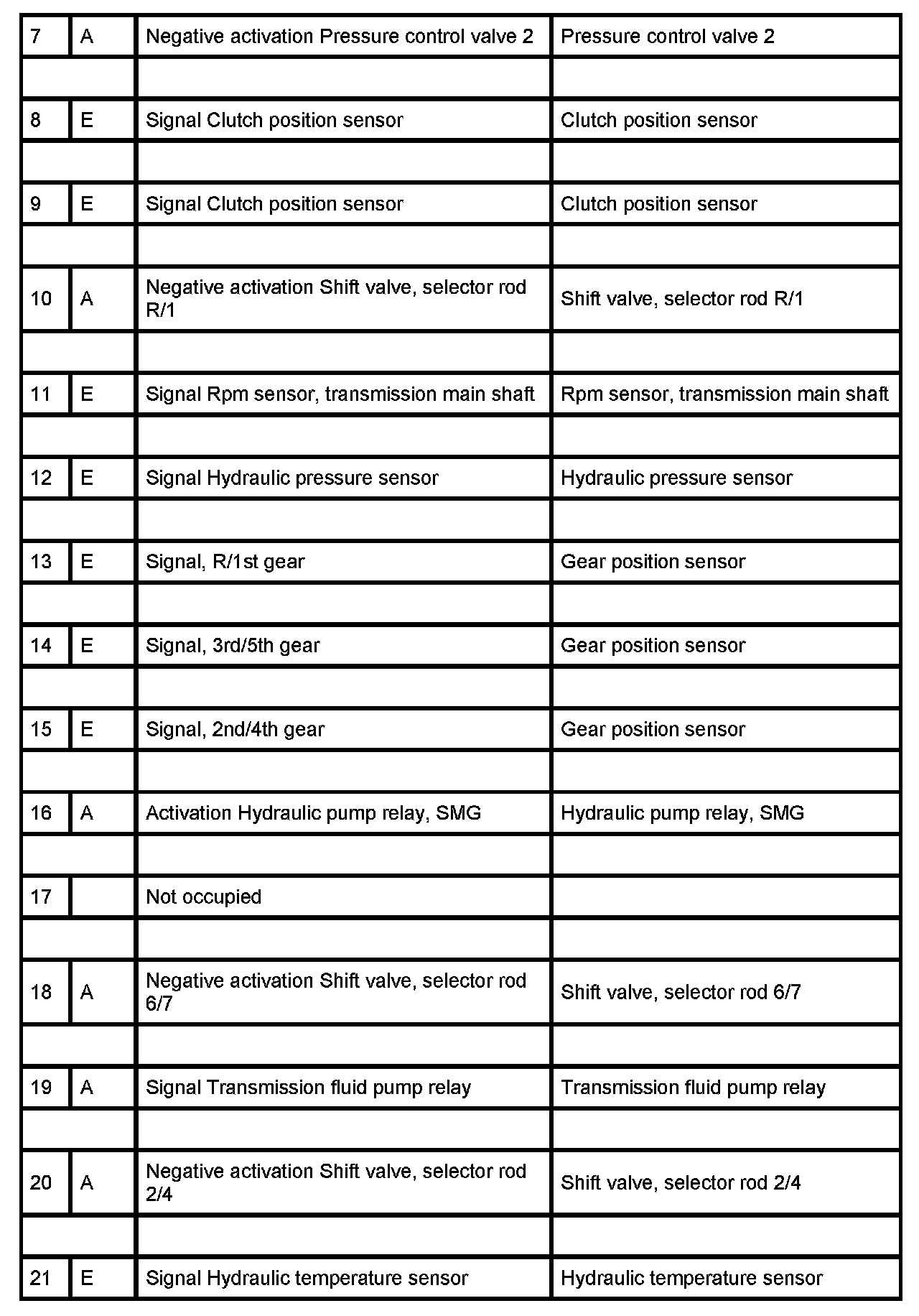

X70014 - Part 2:

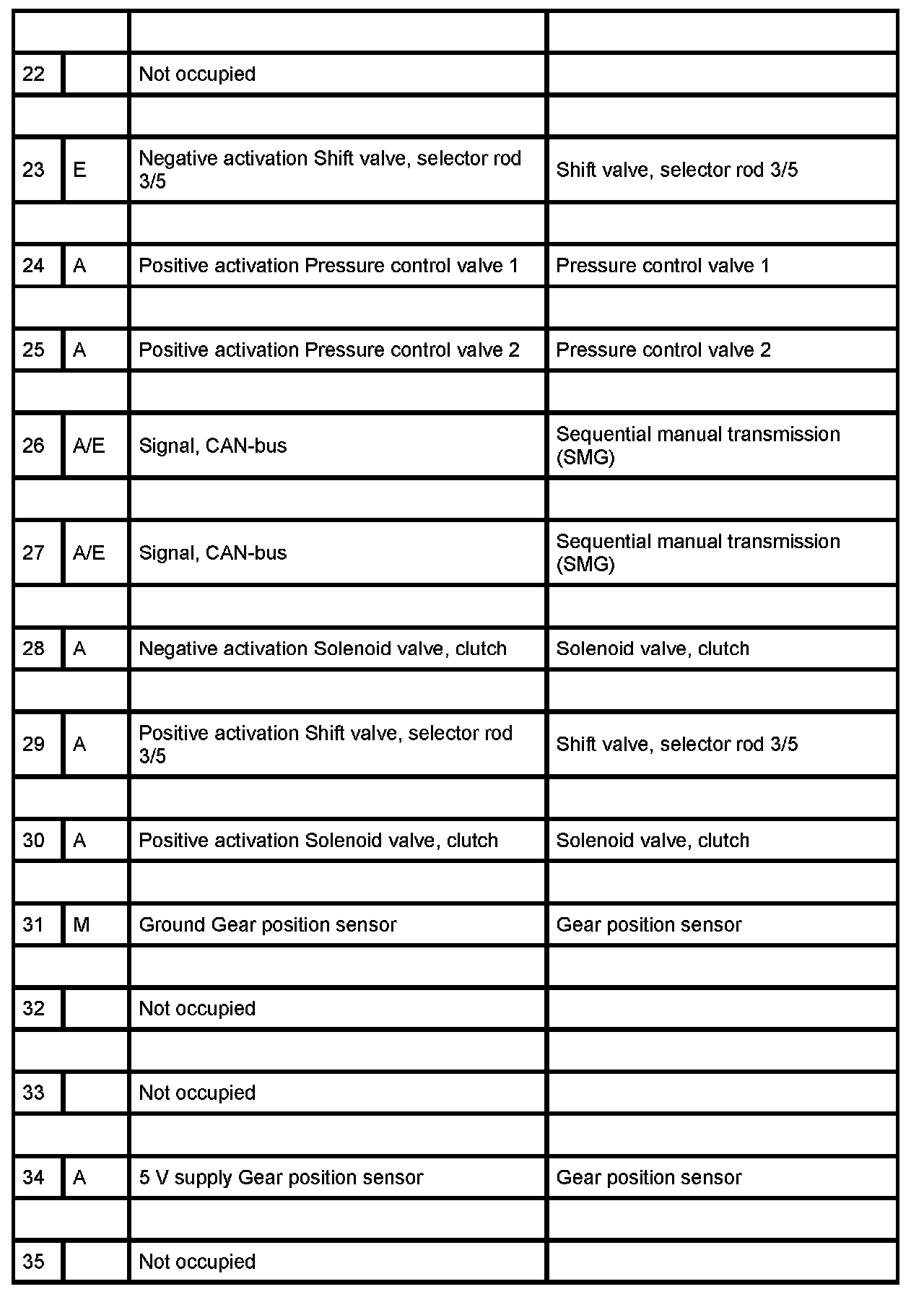

X70014 - Part 3:

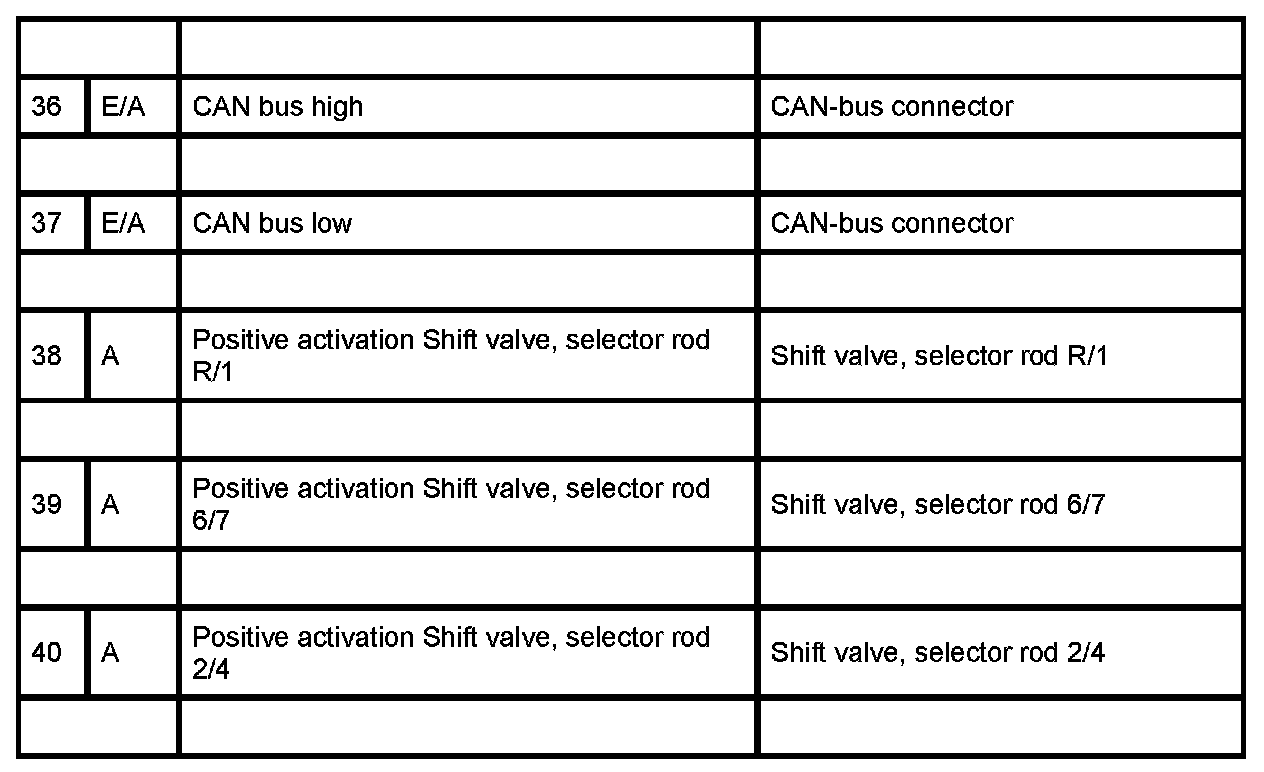

X70014 - Part 4:
