Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X650 No Adapter >> A187 Driver's Seat Module (Coupe)

A187 Driver's Seat Module (Coupe)

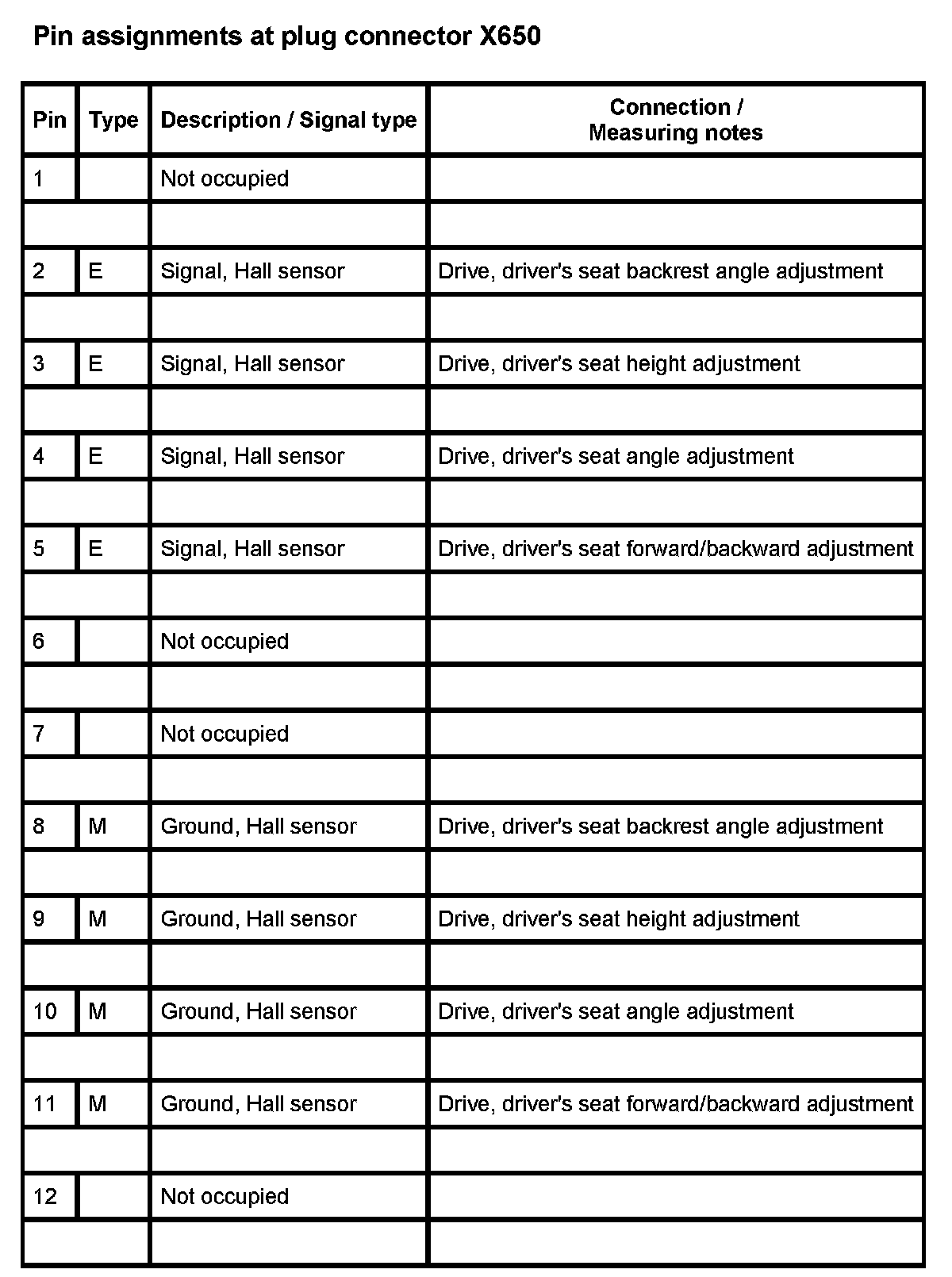

X650:
