Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X6 >> X60006 Adapter 612420, Storage Location F102 (N52 or S85 Engine)

X60006 Adapter 612420, Storage Location F102 (N52 or S85 Engine)

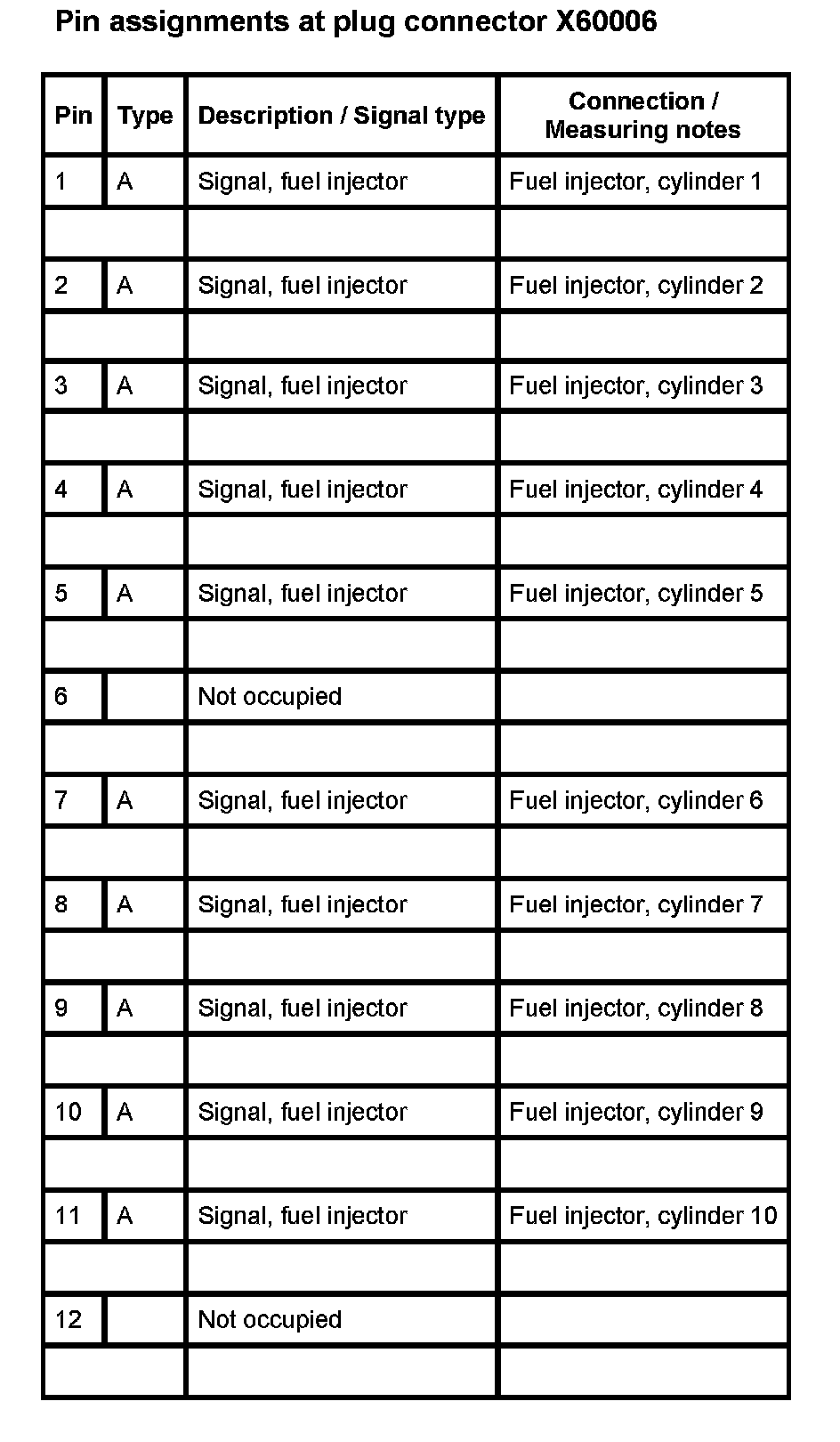

X60006:

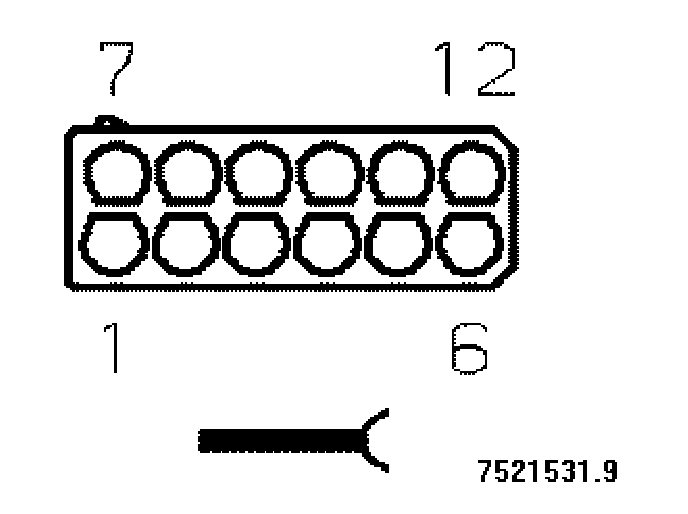

X60006:
