X53001 Adapter 121301, Storage Location N201 (SMG Sequential Manual Transmission M5)

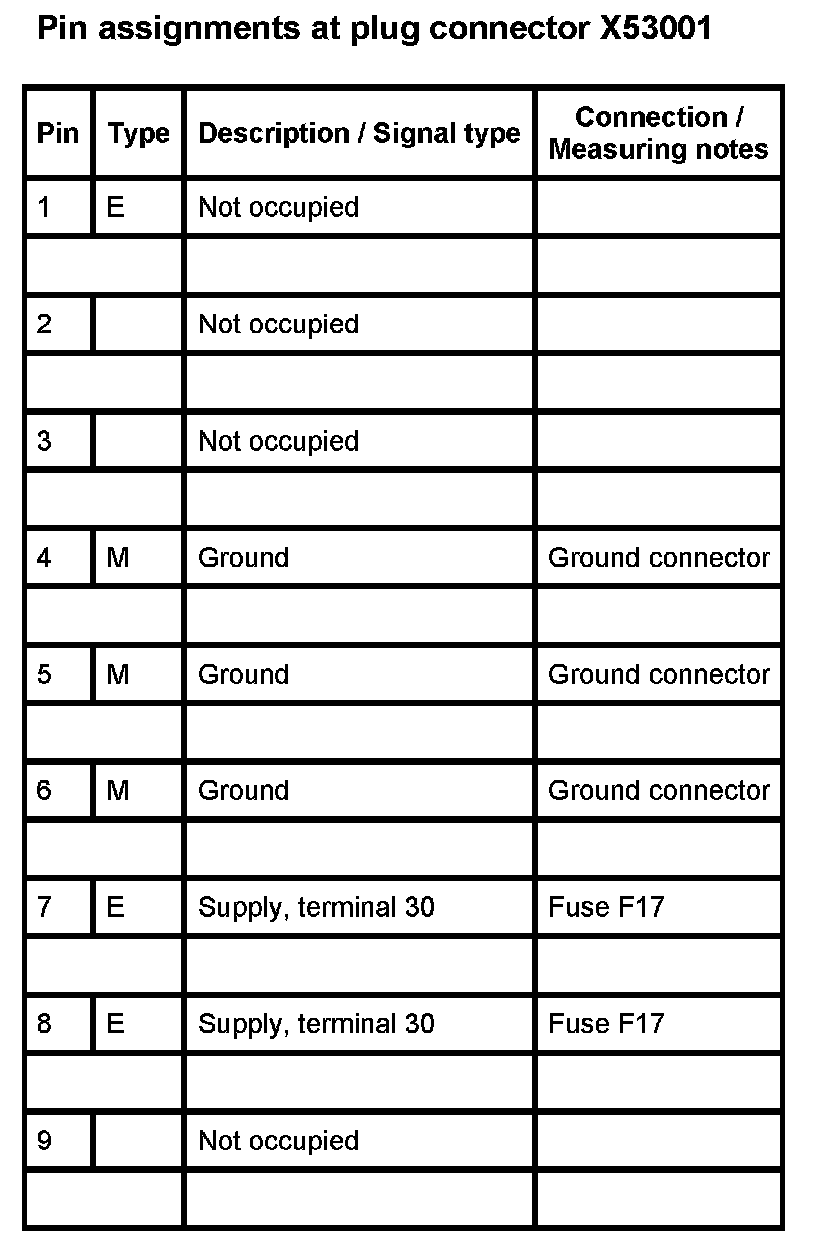

X53001:

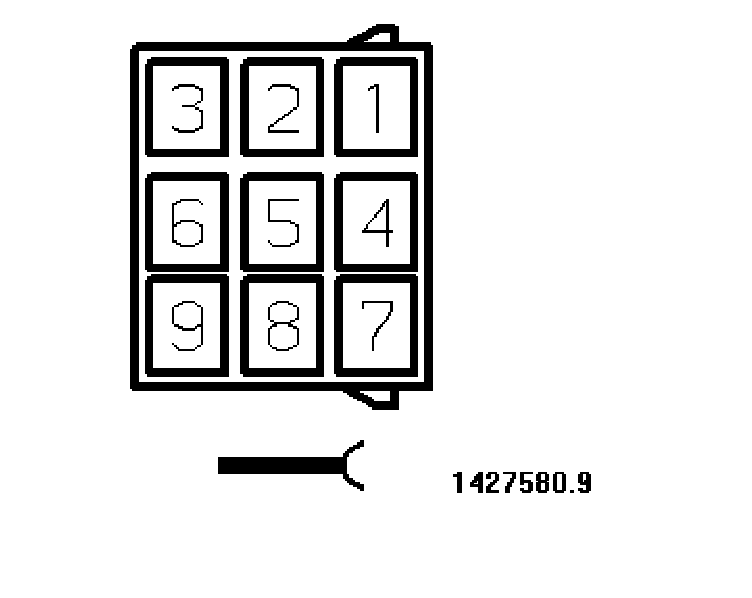

X53001:
