Connector Views
>>
Connectors From X1
>>
X13820 Adapter 616035, Storage Location D111
>>
N38A CCC/M-Ask (VM Video Module)
N38A CCC/M-Ask (VM Video Module)

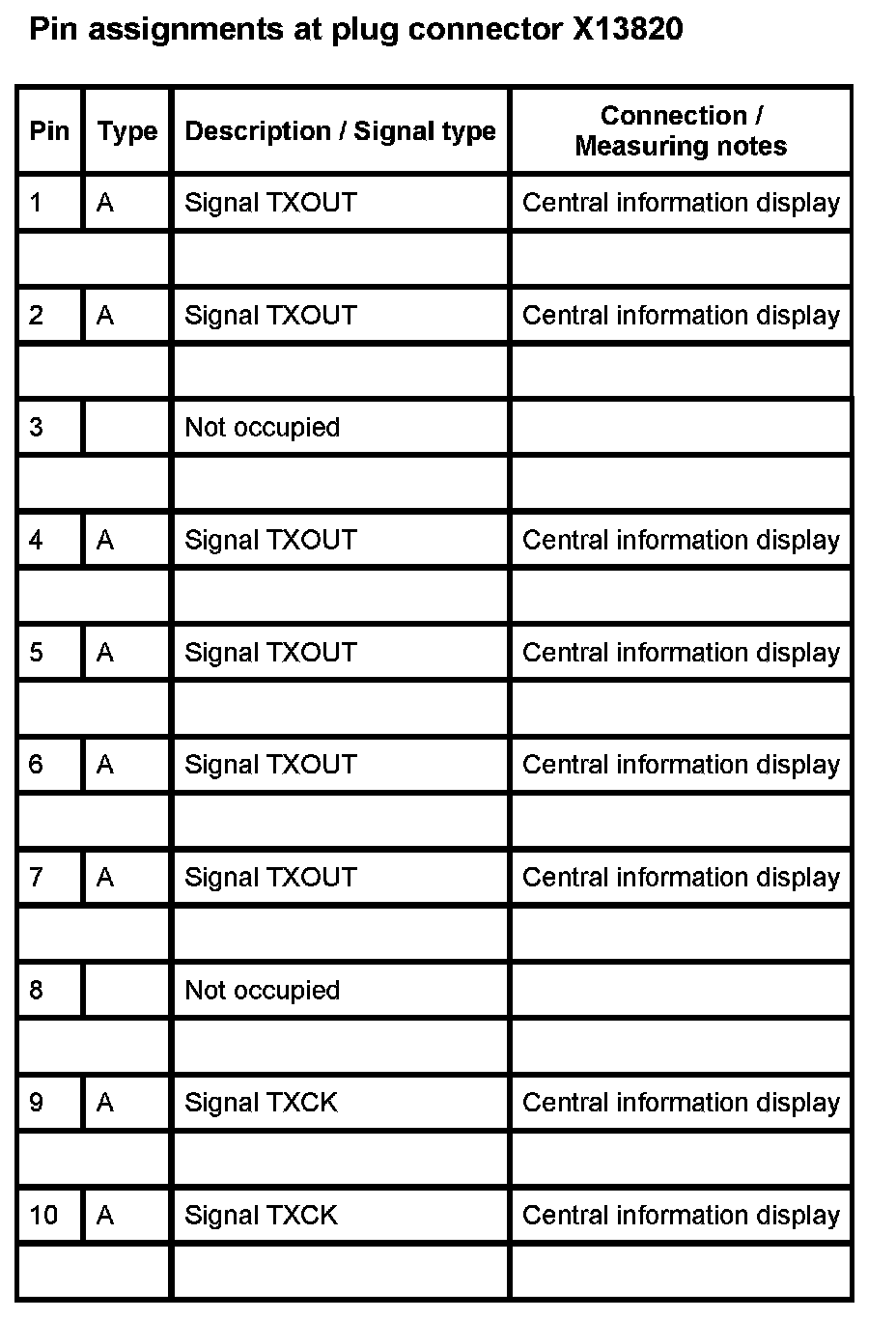

X13820:
X13820:
