Replacing Rear Left or Right Brake Hoses

34 32 980 - Replacing rear left or right brake hoses





Note:
Read and comply with General Information Service and Repair.
Observe safety instructions on raising the vehicle 34 32 Brake Lines.
After completing tasks, bleed brake system Replacing Fluid in ABS/ASC+T Brake System.





Press clutch pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.





Important!

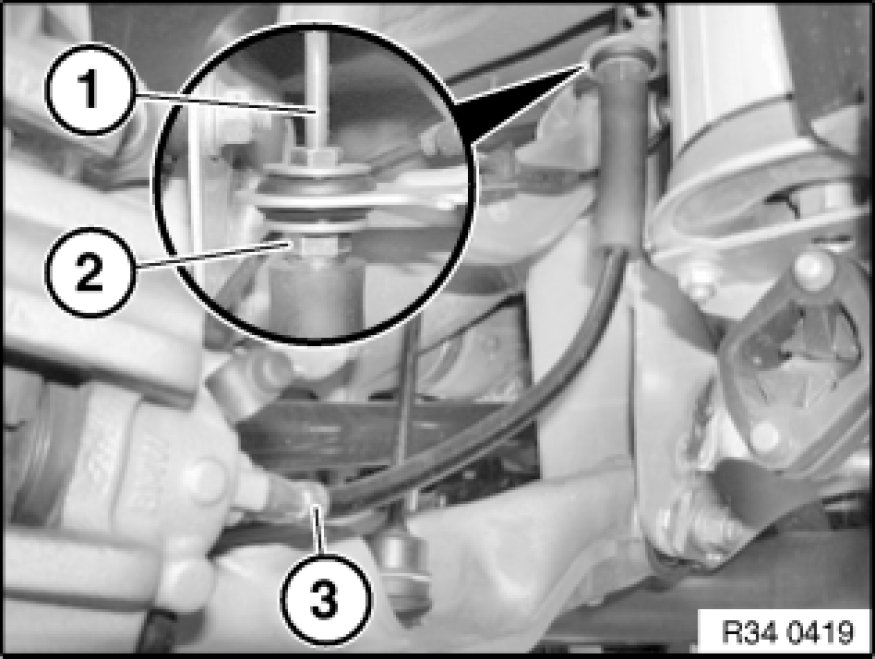

Grip brake hose at square head (2) so that connecting piece cannot rotate in retaining bracket.

Disconnect brake hose from brake line (1).

Installation:
Tightening torque 34 32 1AZ 00 .. ... Lifting Vehicle With A Lifting Platform.

Detach brake hose from brake calliper (3).

Installation:
Tightening torque 34 32 5AZ 34 32 Brake Lines.
