Replacing Front Left or Right Brake Hoses

34 32 881 - Replacing front left or right brake hoses





Note:
After completing work: Bleed braking system Replacing Fluid in ABS/ASC+T Brake System





Press clutch pedal down to floor and secure with pedal support.

Note:
The pedal support may only be released when the brake lines are reconnected.
This prevents brake fluid from emerging from the expansion tank and air from entering the system when the brake lines are opened.

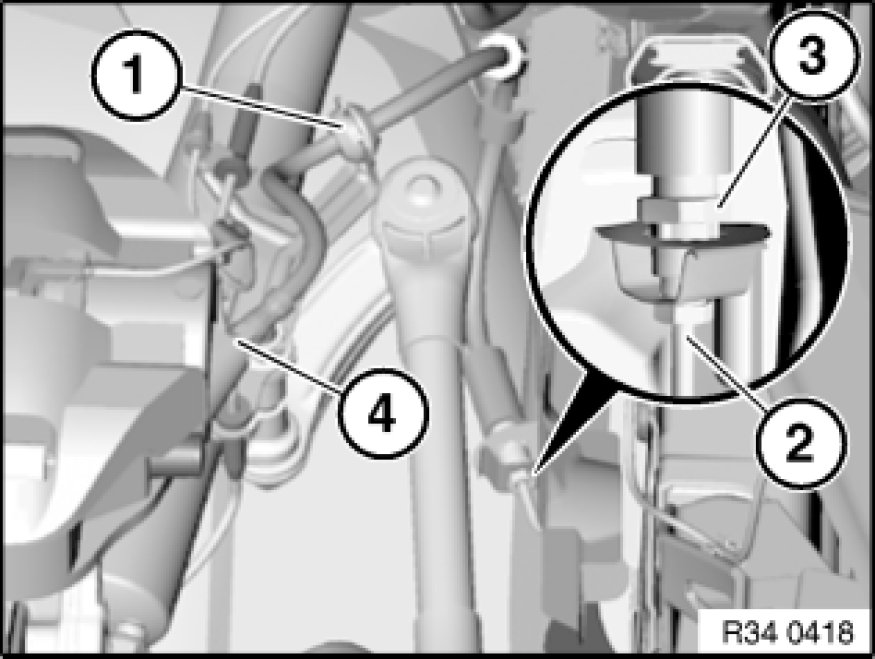

Pull brake hose out of holder (1).

Important!
Grip brake hose at square head (3) to prevent connecting piece from turning in retaining bracket.

Detach brake hose from brake line (2).

Installation:
Tightening torque 34 32 1AZ 34 32 Brake Lines.

Detach brake hose from brake caliper (4).
Tightening torque 34 32 4AZ 34 32 Brake Lines.





Important!
Never twist brake hose when installing it and avoid all contact with parts attached rigidly to the body.

Installation:
First tighten brake hose on brake calliper.
Move wheels into straight-ahead position.
Insert brake hose in bracket and screw onto brake pipe.
