Removing and Installing/Replacing Left or Right Underbody Panelling

51 47 ... - Removing and installing/replacing left or right underbody panelling





Necessary preliminary tasks:
M6:
- If necessary, slacken tension strut to tunnel screw connection

Note:
Hexagon screw in the tunnel bridge area is designed with different washer diameters.

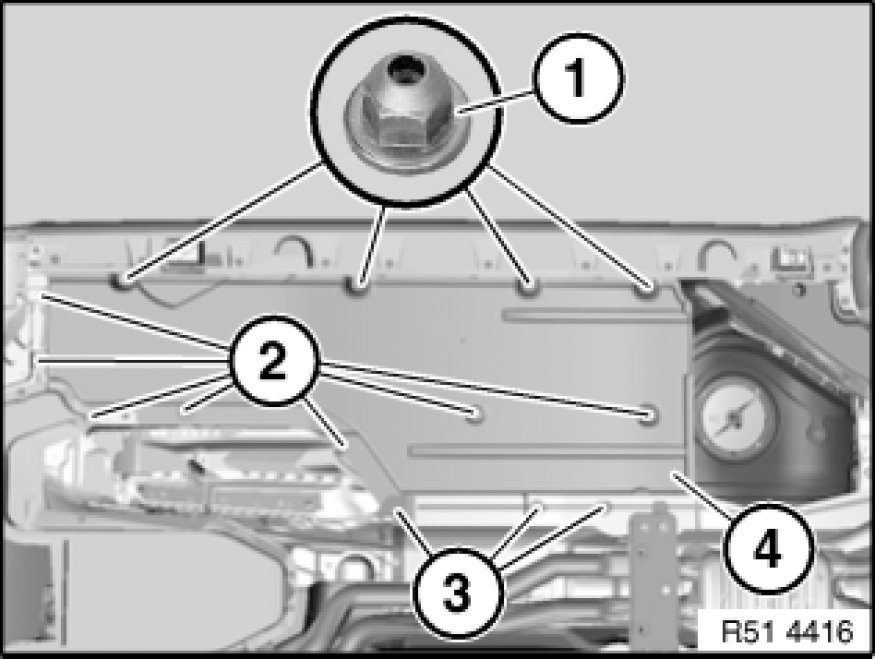

Release plastic nuts (1).
Unfasten screws (2 and 3).
Remove underbody panelling (4) towards bottom.

Installation:
Replace damaged plastic nuts.
