Rear Seat - Normal
Rear Seat - Normal
52 24 005 - Removing and installing or replacing rear seat

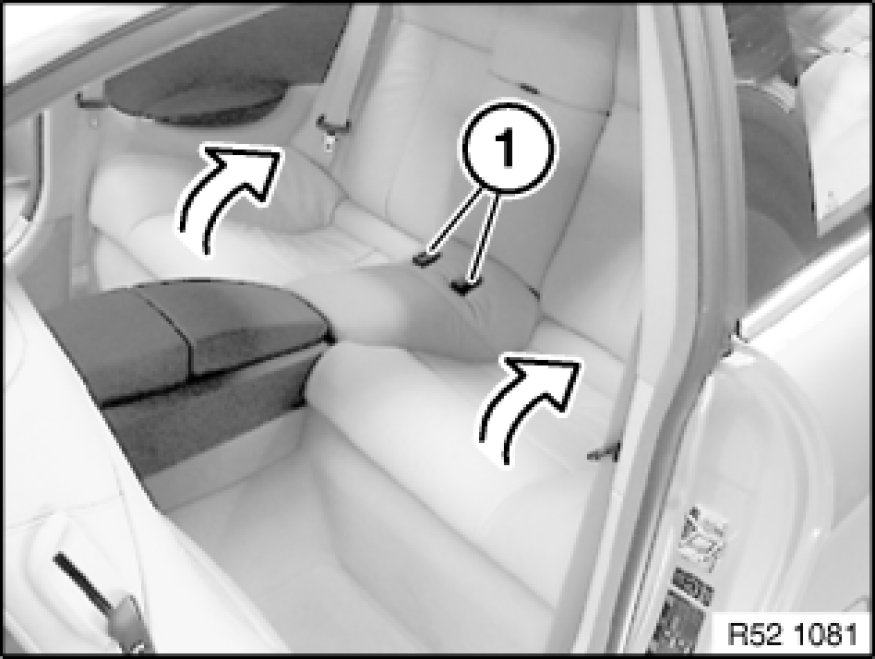

Unclip rear seat on left/right towards top.
Lift rear seat out of vehicle.
Installation:
Feed in seat belt buckles (1) through designated openings in rear seat.
