Removing and Installing / Replacing Ski Bag With Casing

52 24 ... - Removing and installing / replacing ski bag with casing





Necessary preliminary tasks:
- Remove ski bag cover
- Remove backrest Removing and Installing/Replacing Backrest

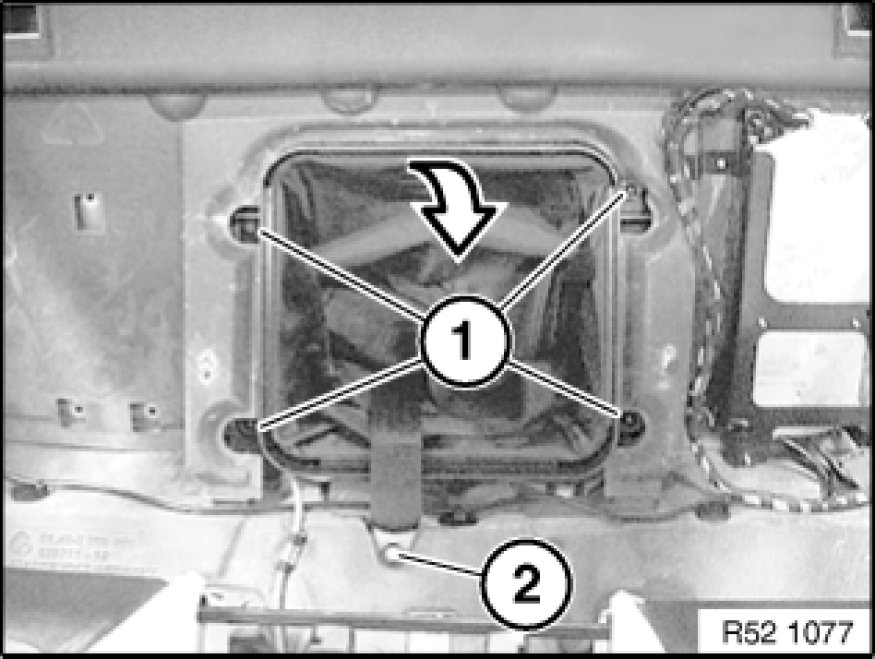

Release screws (1).
Tightening torque 52 24 6AZ 52 24 Rear Seat (Normal), Manual.
Release screw (2).
Tightening torque 52 24 7AZ 52 24 Rear Seat (Normal), Manual.
Remove casing towards front.
