Removing and Installing/Replacing Trim For Release Handle on Left or Right Front Seat (Normal/Manual)

52 14 ... - Removing and installing/replacing trim for release handle on left or right front seat (normal/electric)

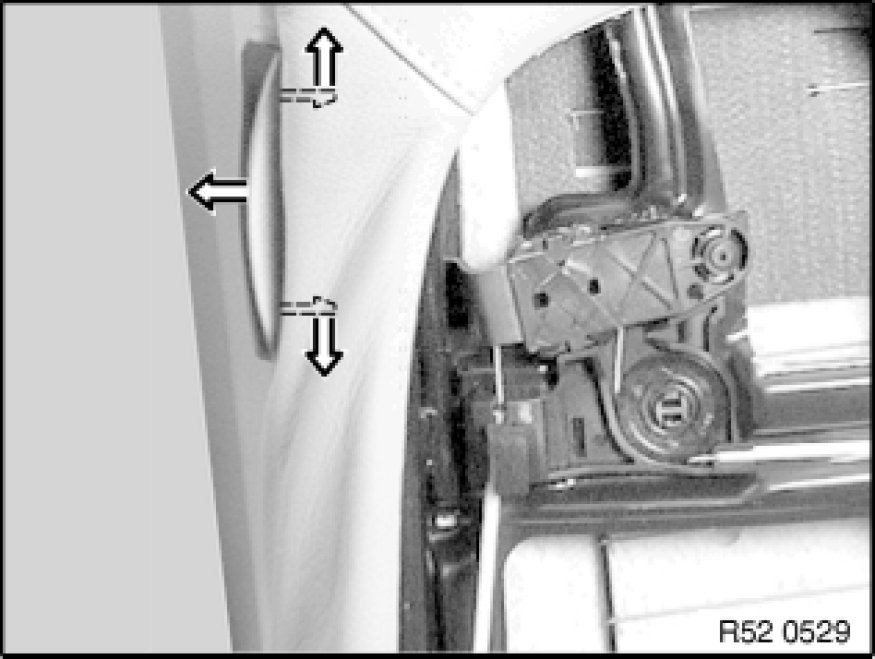

Remove release handle Removing and Installing/Replacing Release Handle on Left or Right Front Seat (Normal/Electric) on front left or right seat.

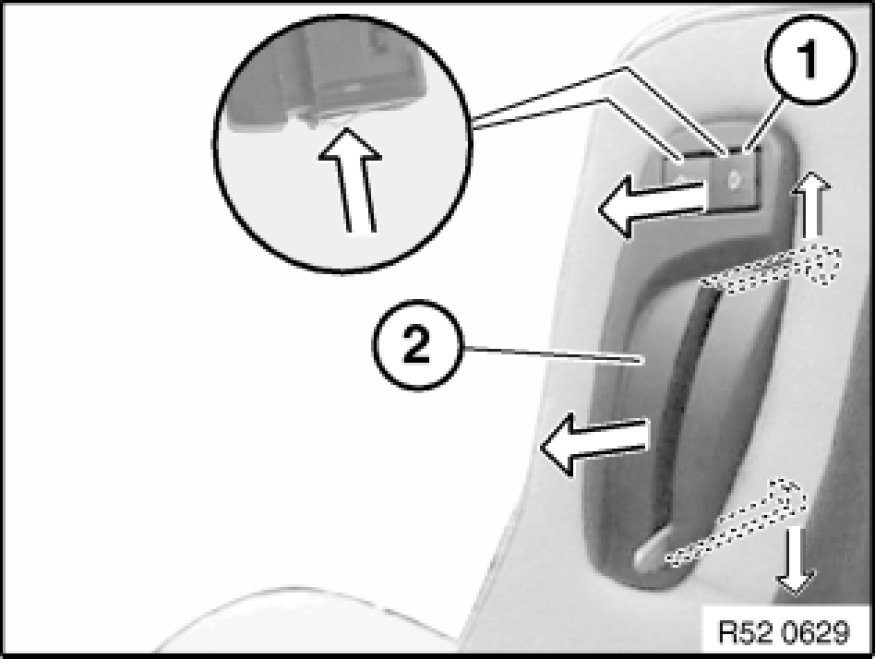

Lever out switch (1).
Unlock catches from outside through trim slot by applying slight pressure and remove trim (2) at side.





Note:
Remove trim on both sides on passenger seat.





Installation Note:
Catches on trim must not be damaged.

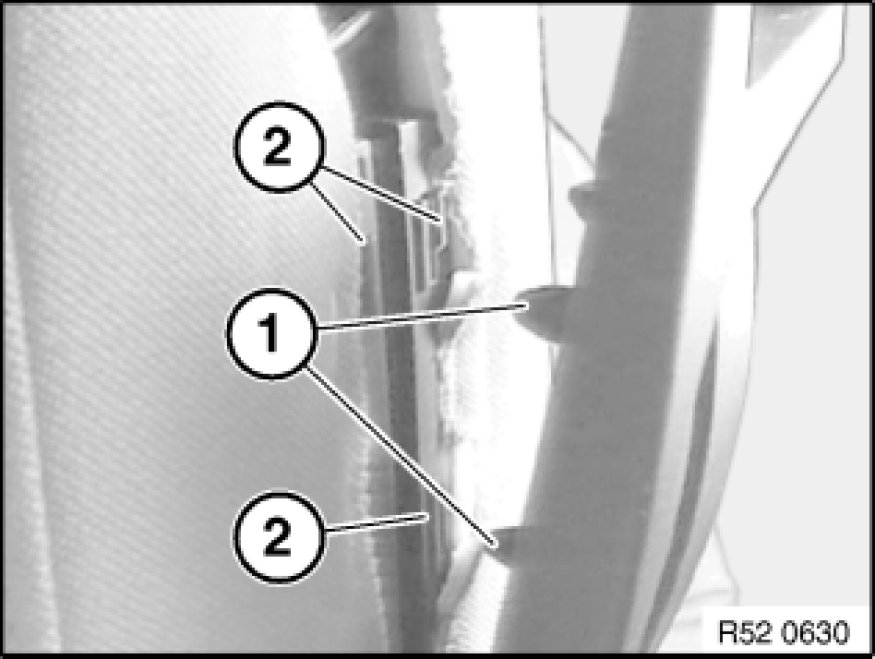

Feed guide lugs (1) into guide holes (2).
