Removing and Installing/Replacing Seat Pan and Flex MAT on Left or Right Front Seat (Normal/Electric)

52 14 ... - Removing and installing/replacing seat pan and flex mat on left or right front seat (normal/electric)





Necessary preliminary tasks:
- Remove seat cover for front seat

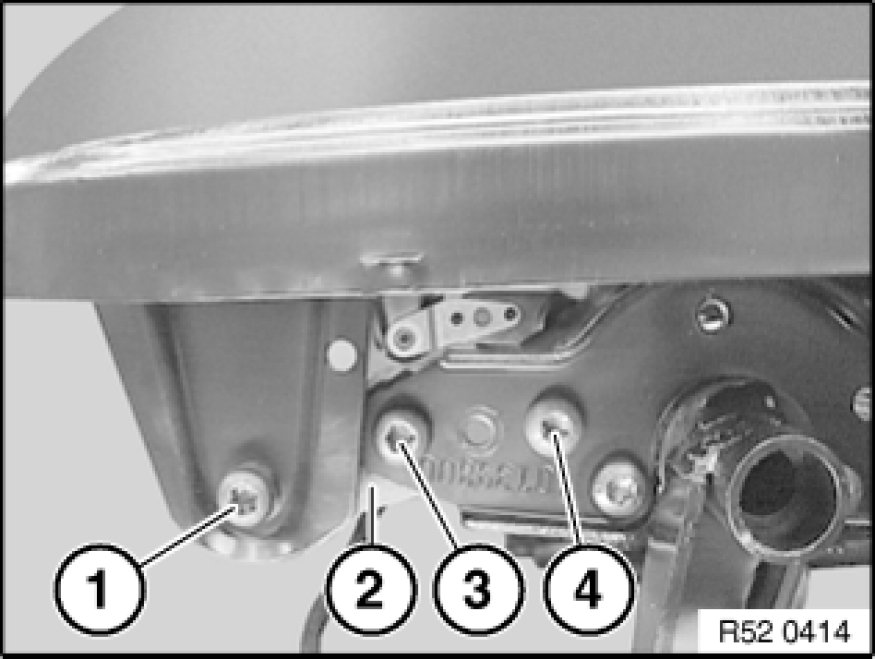

Release left screw (1) and slacken right screw only.
Release screw (3) on left/right.
Slacken left/right screws (4) only.
Remove left retaining plate (2) downwards.

Installation Note:
Tightening torque 52 10 9AZ Front Seats.

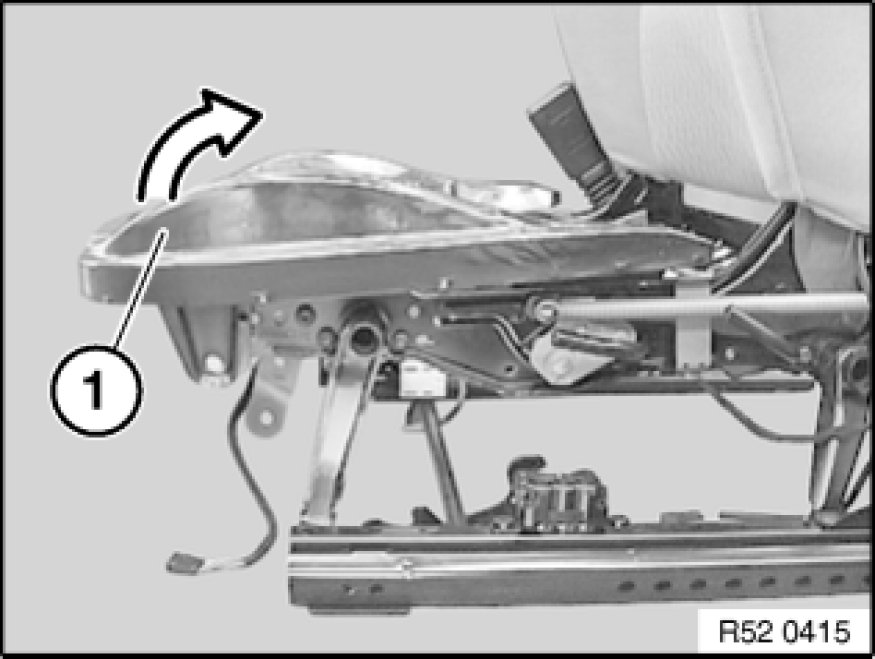

Press seat pan (1) upwards, thereby relieving tension on flex mat.

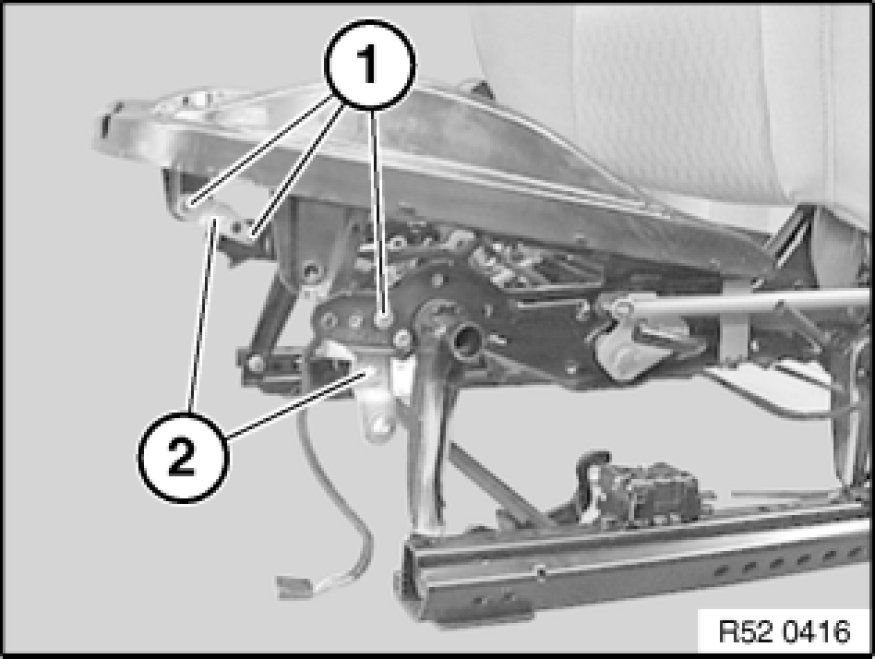

Release screws (1) and remove retaining plates (2).

Installation Note:
Tightening torque 52 10 9AZ Front Seats.

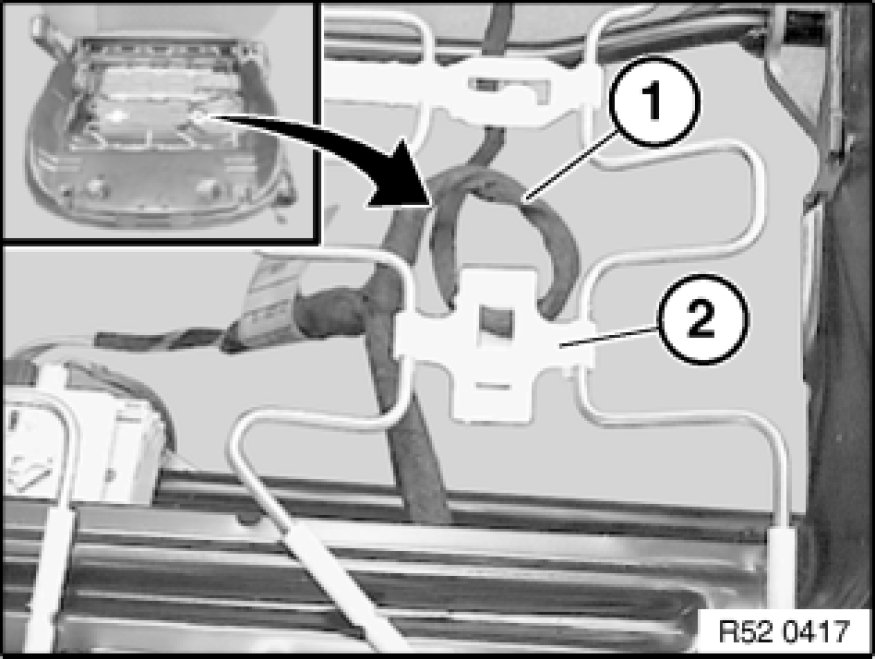

Unhook cable (1) from holder (2).

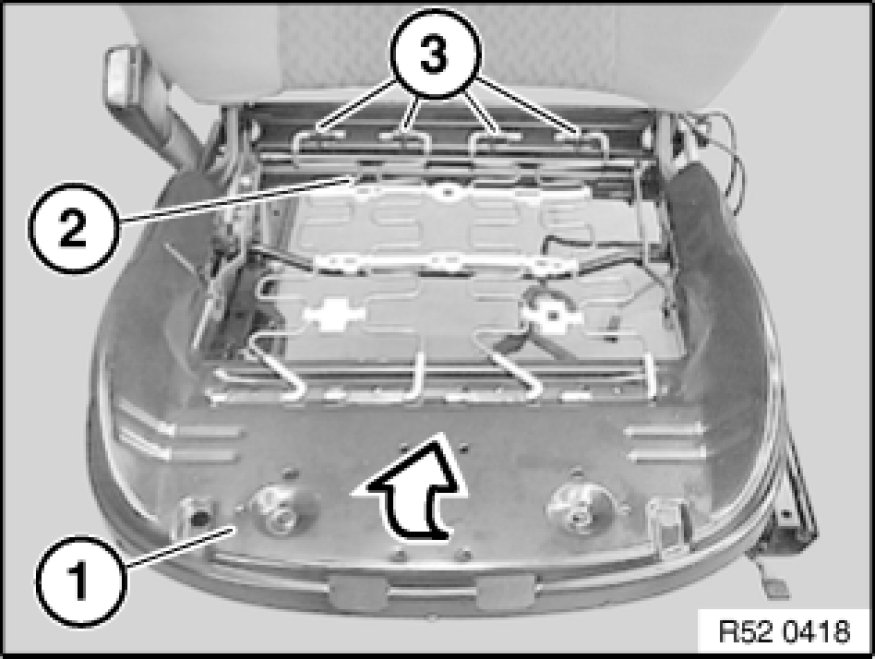

Turn seat pan (1) upwards.
Detach flex mat (2) at rear from mounts (3).

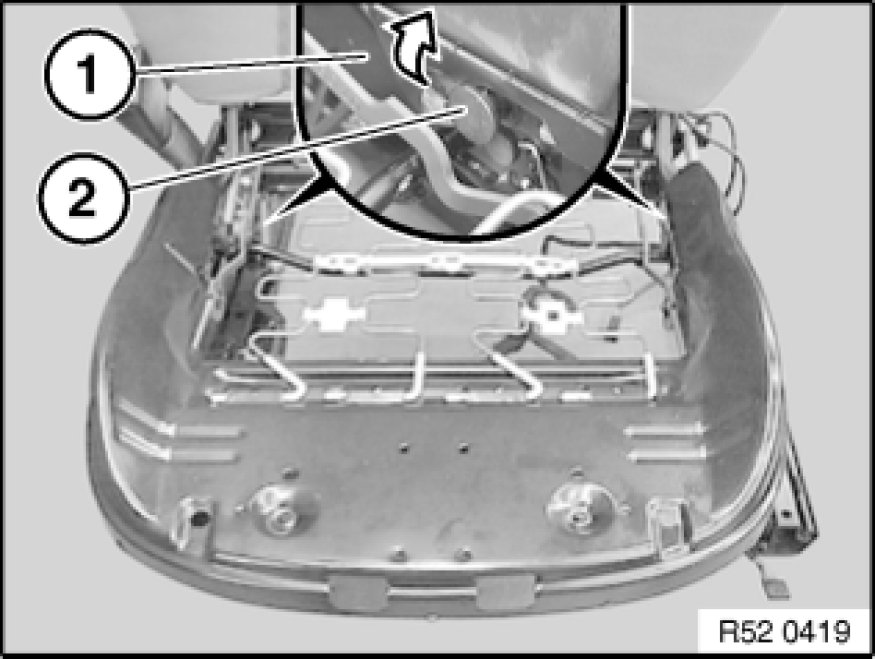

Detach seat pan (1) on left and right towards rear/top from mount (2) and remove.

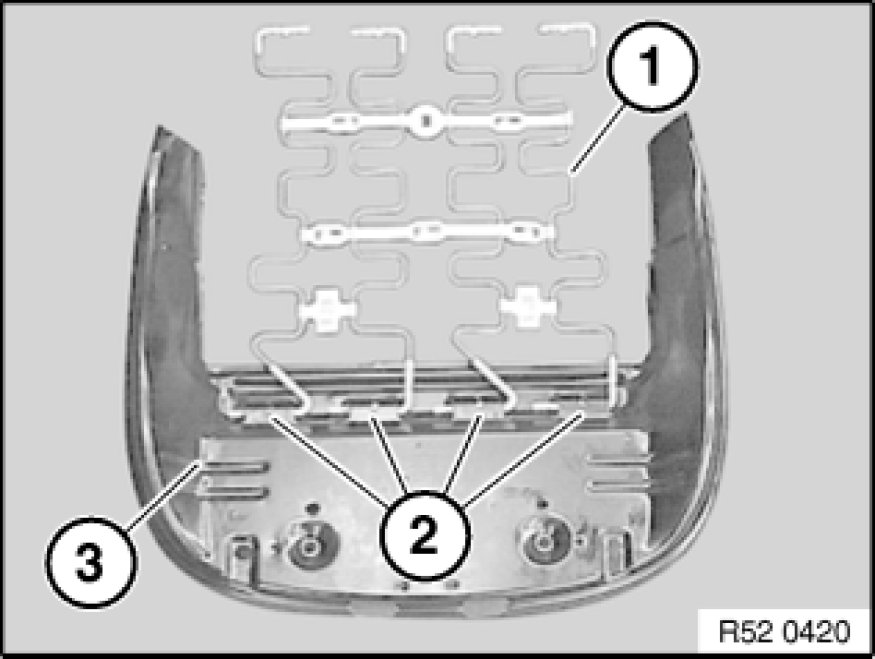

Detach flex mat (1) from mounts (2) for seat pan (3).
