Removing and Installing/Replacing Release Handle on Left or Right Front Seat (Normal/Electric)




52 14 033 - Removing and installing/replacing release handle on left or right front seat (normal/electric)

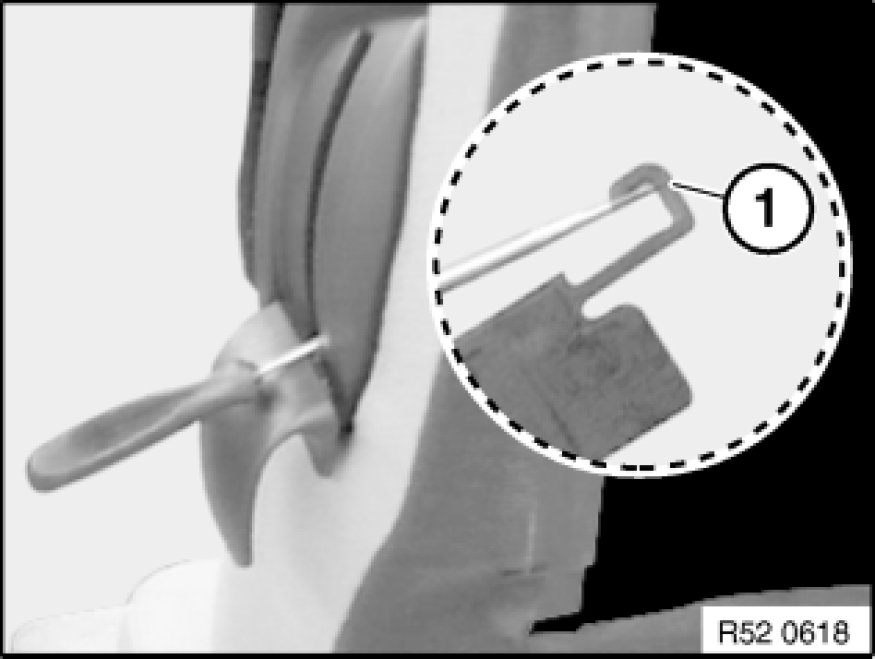

Unlock catch (1) of release lever with screwdriver and detach towards outside.

Installation:
Catches of release unit must not be damaged.
