Removing and Installing/Replacing Belt Guide Trim on Left or Right Front Seat (Normal/Electric)

52 14 ... - Removing and installing/replacing belt guide trim on left or right front seat (normal/electric)





Necessary preliminary tasks:
- Remove rear panel Removing and Installing/Replacing Rear Panel on Left or Right Front Seat Backrest (Normal/Manual) on front seat
- Remove head restraint

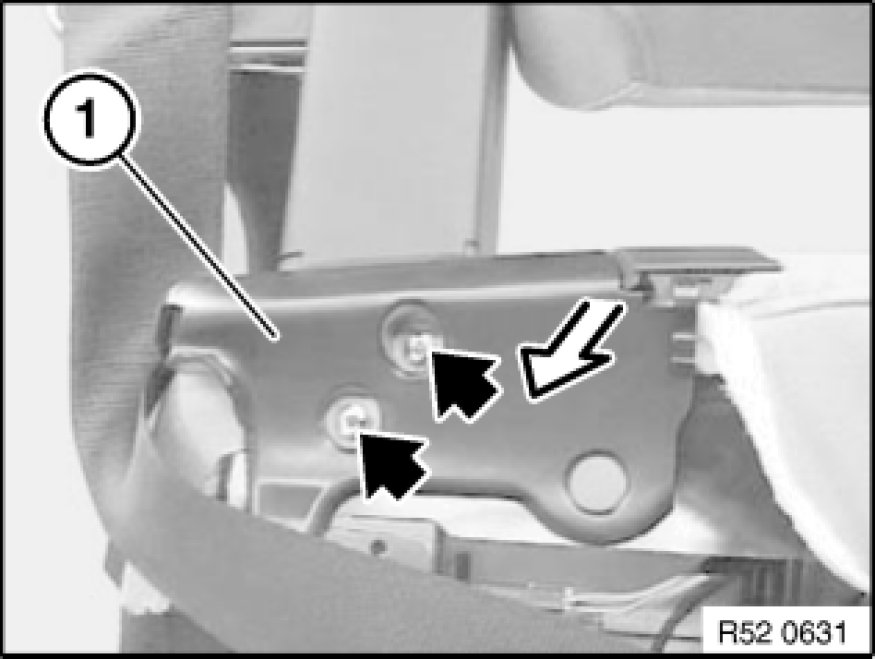

Unfasten screws.
Remove trim (1) for belt guide towards rear.





Unfasten screws.
Pull off trim (1) for head restraint in upwards direction.
Feed out cover (2) towards front.





Important!

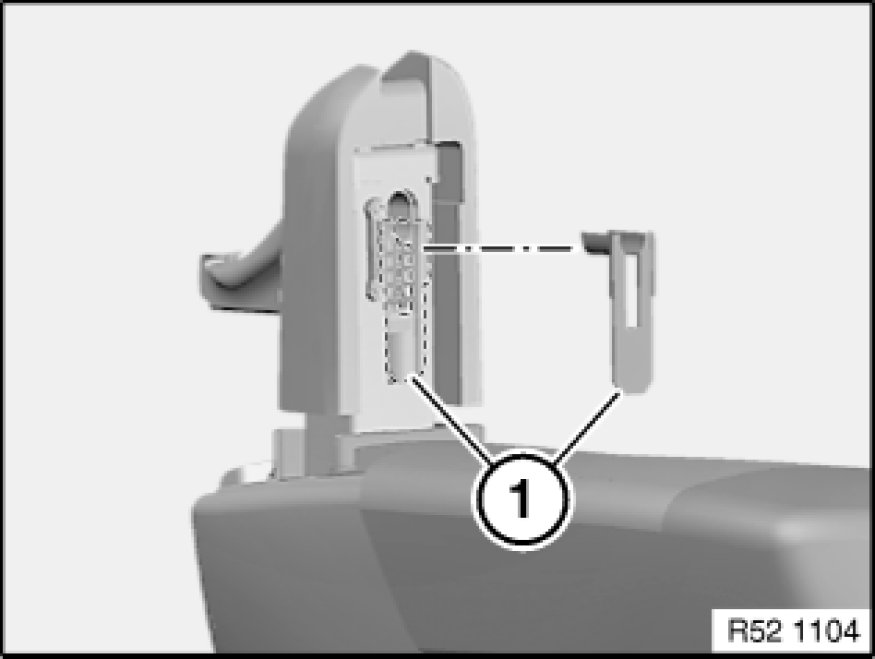

Slide (1) is loose and can fall out.

Slide (1) serves as cover for head restraint guide and must be refitted.

Warning!
Risk of injury if slide is missing.





Pull off foam material (1) and slide (2) for head restraint guide cover in outwards direction.
