Removing and Installing/Replacing Backrest Frame on Front Left or Right Seat (Normal/Electric)
52 14 030 - Removing and installing/replacing backrest frame on front left or right seat (normal/electric)
Necessary preliminary tasks:
- Remove backrest cover with padding Replacing Backrest Cover For Left or Right Front Seat
- If necessary, remove lumbar cushion and valve housing/drive unit Removing and Installing/Replacing Lumbar Cushion on Front Seat on front seat
- Remove seatback release Replacing Backrest Release Cable For Front Left or Right Seat
- Remove microswitch.
- Remove coupling gear Removing and Installing/Replacing Front Seat Belt

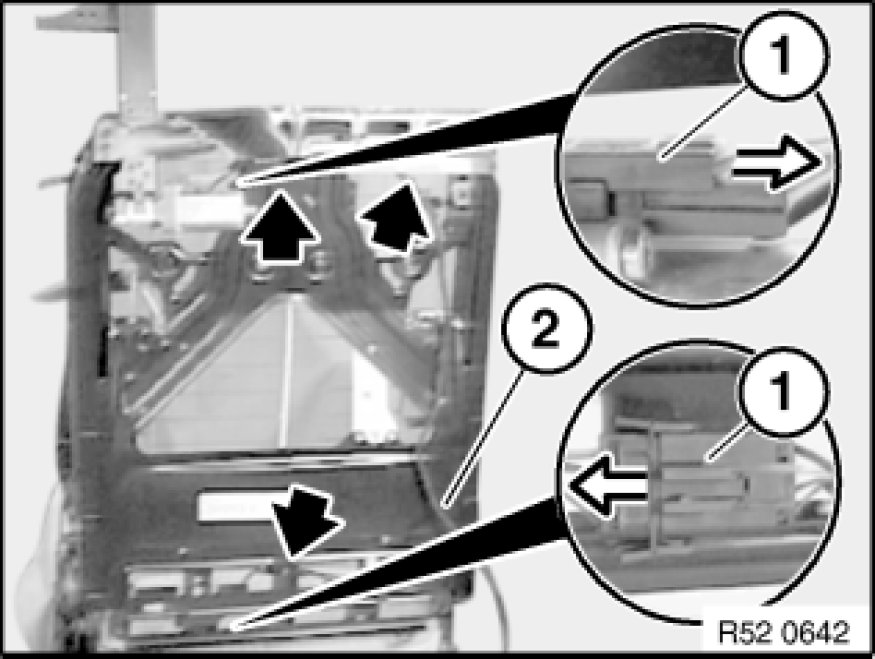

Disconnect plug connection (1).
Unclip seat wiring harness (2) and remove.
Note:

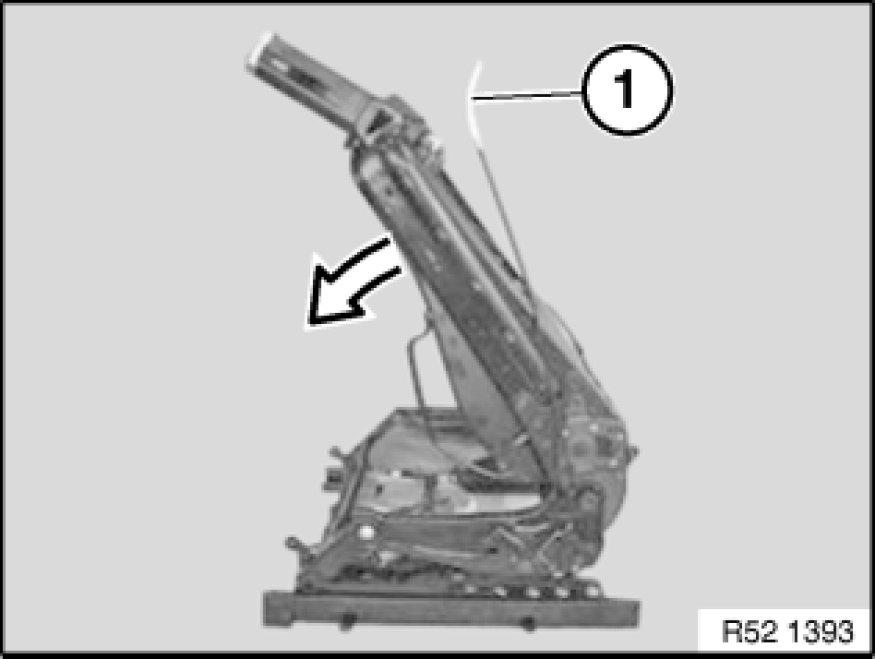

Before removing the backrest, it is essential to move the backrest forwards:
Pull Bowden cable (1) and press backrest forwards.

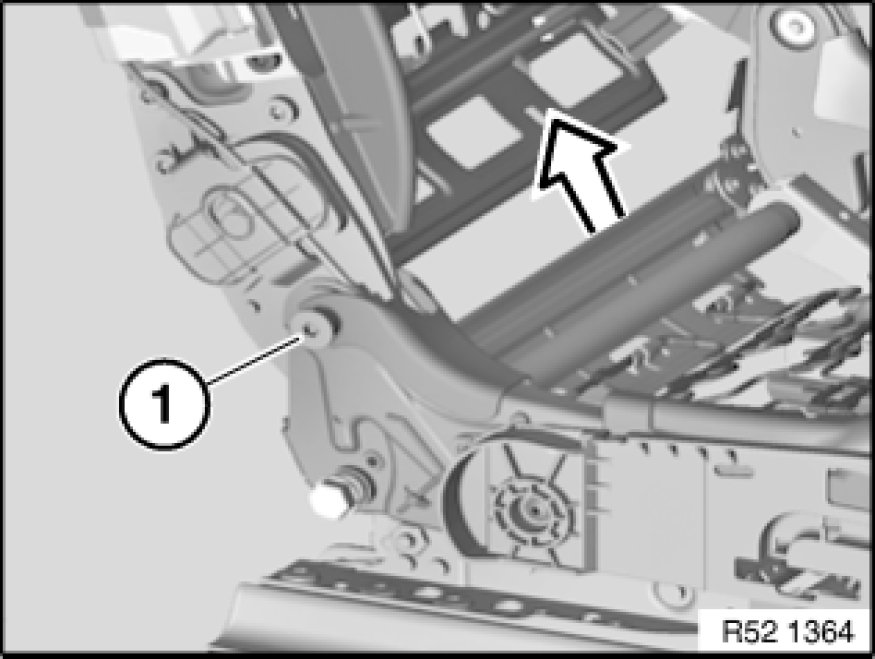

Tunnel side:
Release screw (1).
Installation:
Screw (1) must be replaced.
Tightening torque 52 10 14AZ Front Seats.

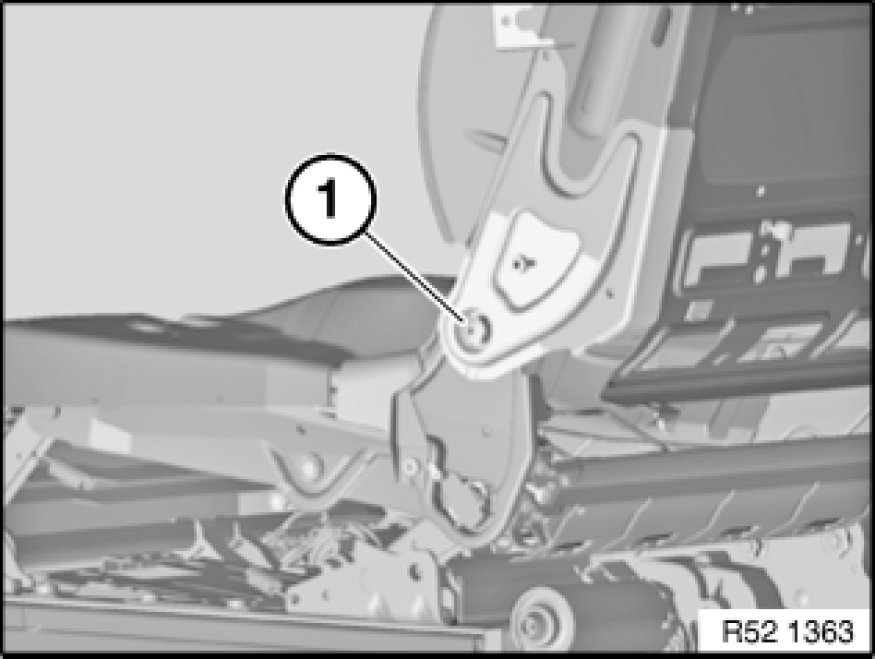

Door side:
Release nut on opposite side from stud (1).
Drive out stud (1) with plastic mallet.
Installation:
Stud (1) and nut must be replaced.
Tightening torque 52 10 15AZ Front Seats.
Remove backrest frame from seat mechanism as follows:

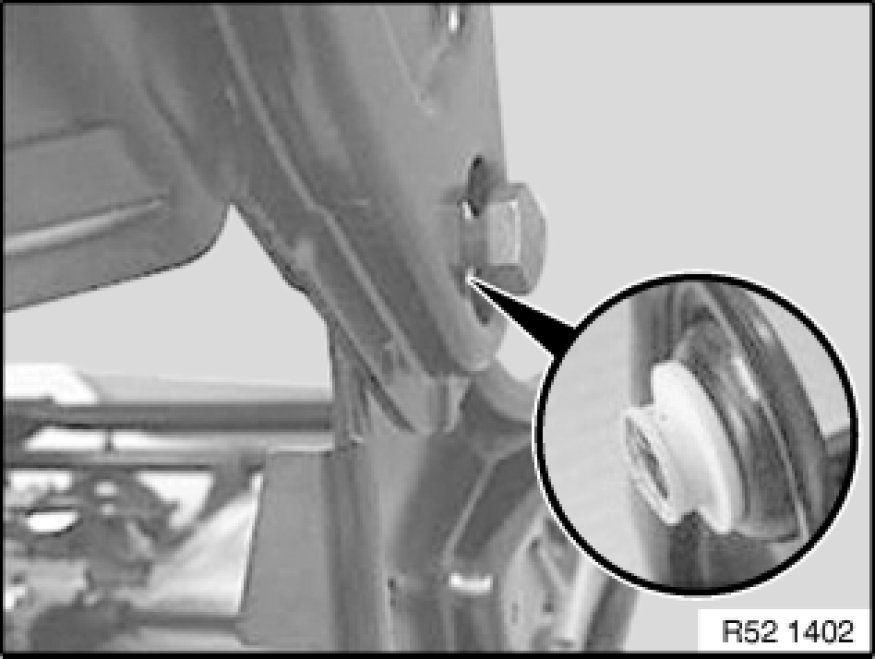

Lever tunnel-side backrest frame with screwdriver over bushing.
Then remove backrest frame in upward direction by pulling with alternate movements.

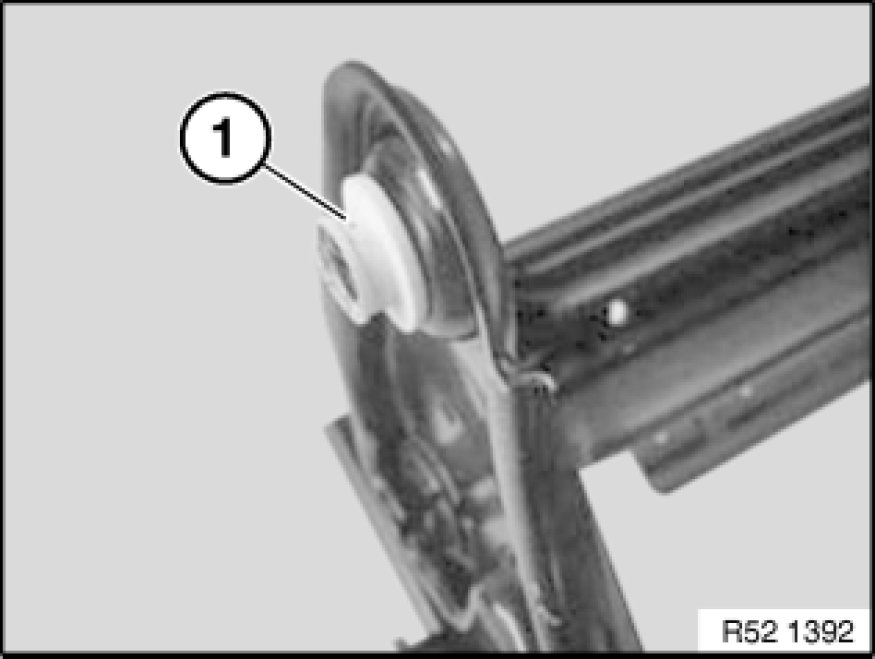

Tunnel-side plastic bushing (1) must not be damaged.

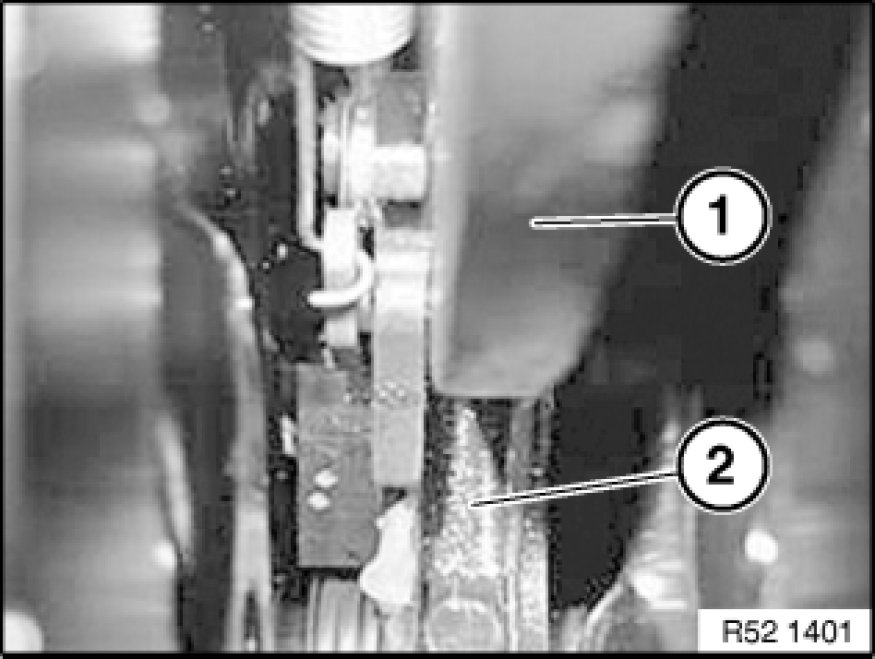

Backrest mounting on door side:
1. Install door-side backrest link (1).
2. Backrest link (1) must be joined centrally on blocking cam (2).
3. Connect stud and tighten nut hand-tight.
Backrest mounting on tunnel side:
1. Install tunnel-side backrest strut.
Important!
Plastic bushing must not be damaged
2. - Tighten screw hand-tight.
Note:
Tighten down stud and screw only after mounting backrest on both sides.
Tightening torque:
- Stud on door side: 52 10 15AZ Front Seats.
- Screw on tunnel side: 52 10 14AZ Front Seats.
If necessary, remove inertia reel unit Removing and Installing/Replacing Front Seat Belt.
