Removing and Installing/Replacing Drive For Backrest Angle Adjustment (Front Seat Removed)

67 31 531 - Removing and installing/replacing drive for backrest angle adjustment (front seat removed)





Necessary preliminary tasks:
- Remove rear panel on front seat backrest Removing and Installing/Replacing Rear Panel on Left or Right Front Seat Backrest (Normal/Manual)

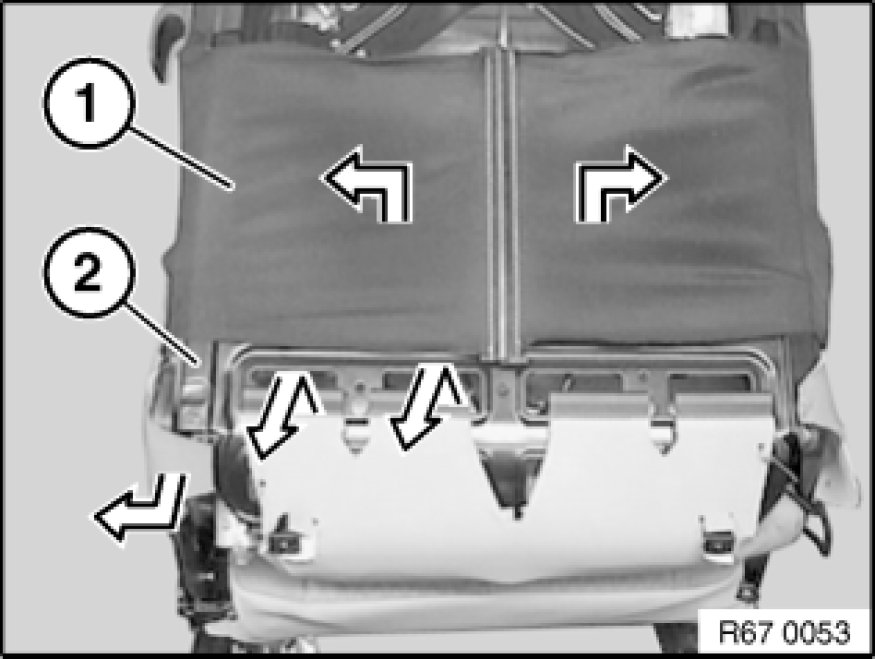

Unhook backrest cover (1) from backrest frame (2) as illustrated and fold over.

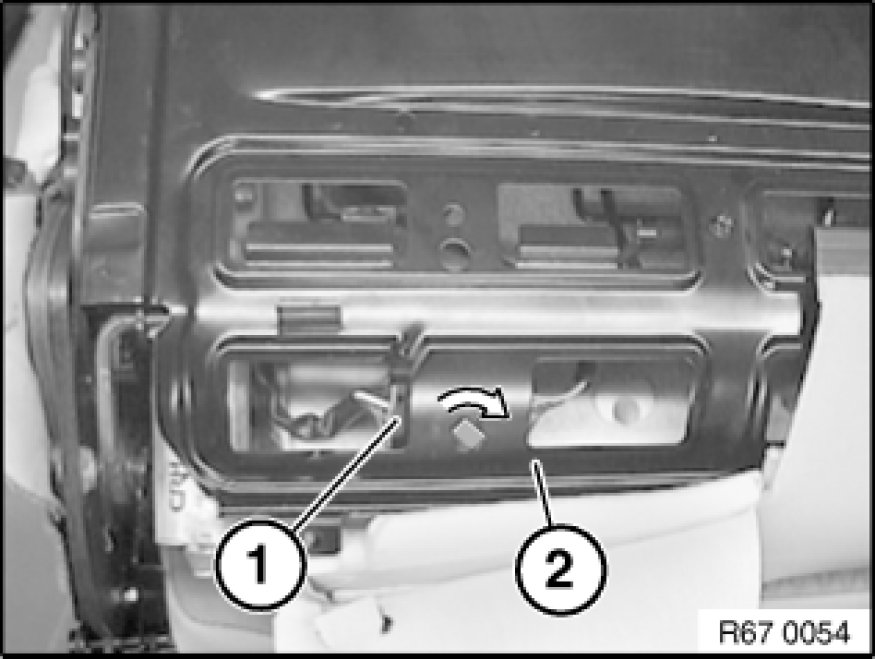

Turn plug connection (1) in direction of arrow and unclip from backrest frame (2).
Disconnect plug connection (1).





Note:
Secure drive for backrest angle adjustment (2) against falling out.

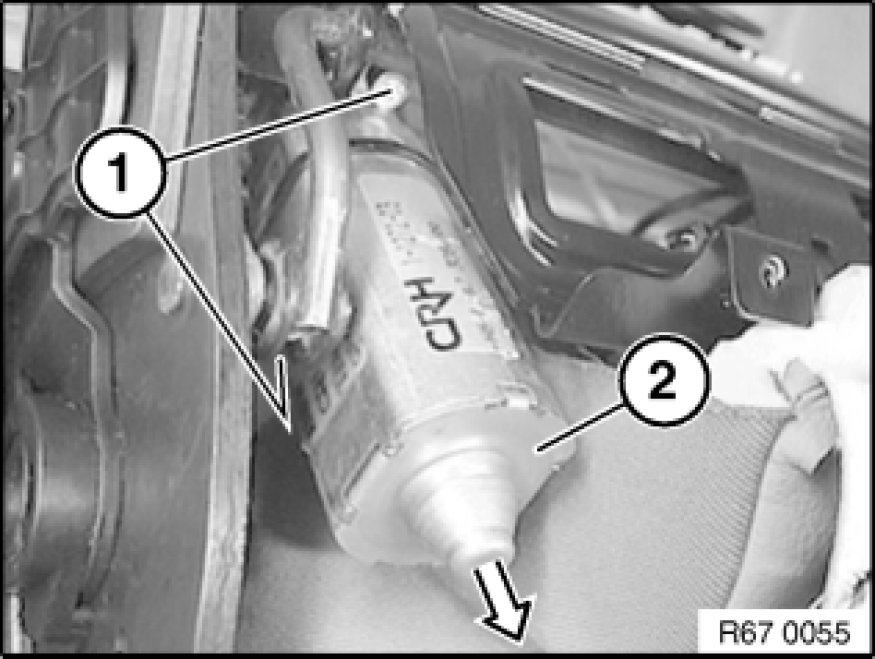

Release screws (1) and remove drive for backrest angle adjustment (2) in direction of arrow.

If necessary, remove inner drive shaft from drive for backrest angle adjustment (2).

Installation:
Ensure drive for backrest angle adjustment (2) is correctly seated on inner flange.





Installation:

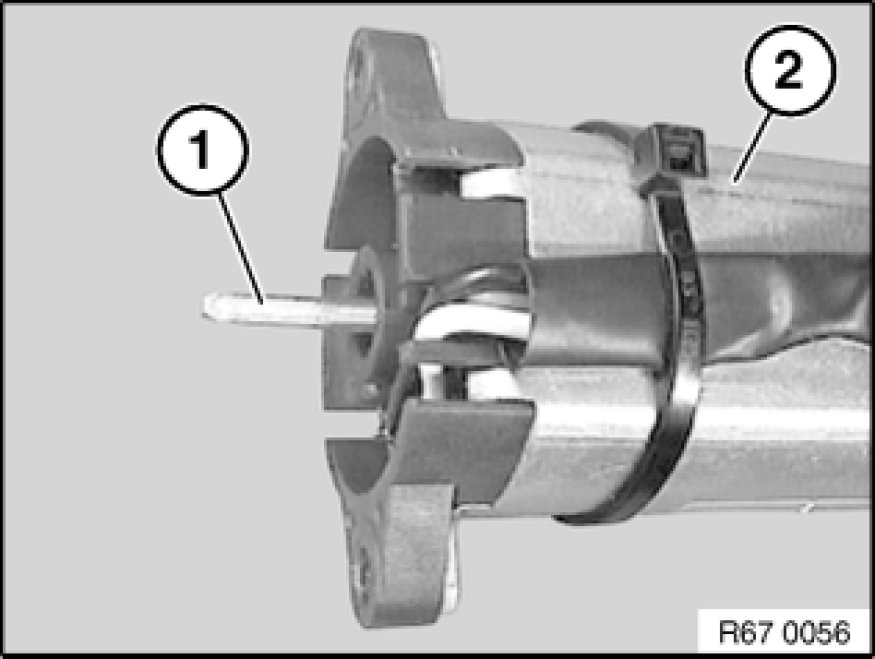

Ensure drive shaft (1) is correctly seated in drive for backrest angle adjustment (2).
