FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Specifications >> 54 31 Convertible Top, Frame and Actuation (Mechanical Components)

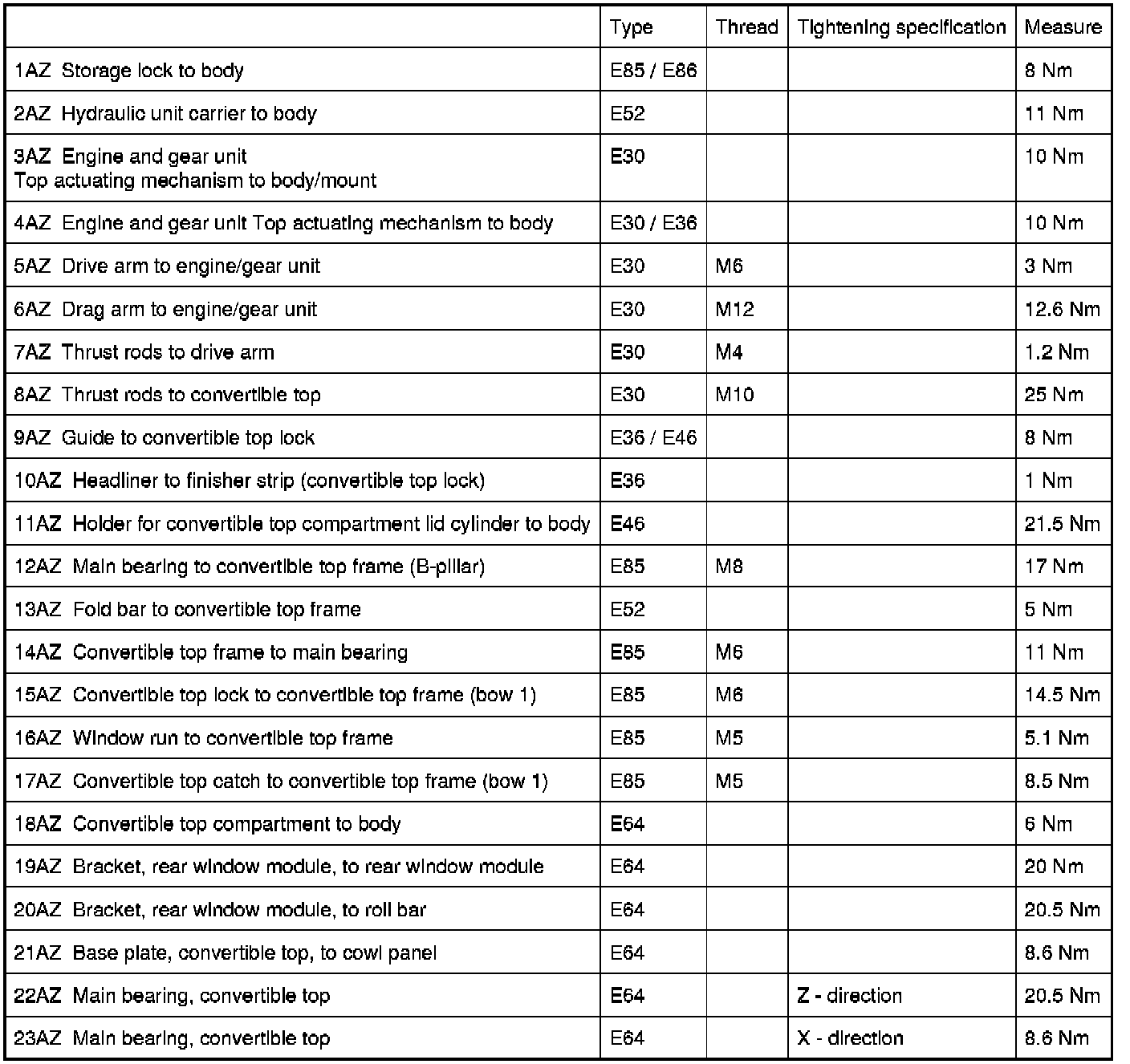

54 31 Convertible Top, Frame and Actuation (Mechanical Components)




54 31 Convertible Top, Frame and Actuation (Mechanical Components)
