54 34 250 Removing and installing left or right tensioning belt

54 34 250 - Removing and installing left or right tensioning belt





Necessary preliminary tasks:
- Partially remove convertible top fabric Service and Repair

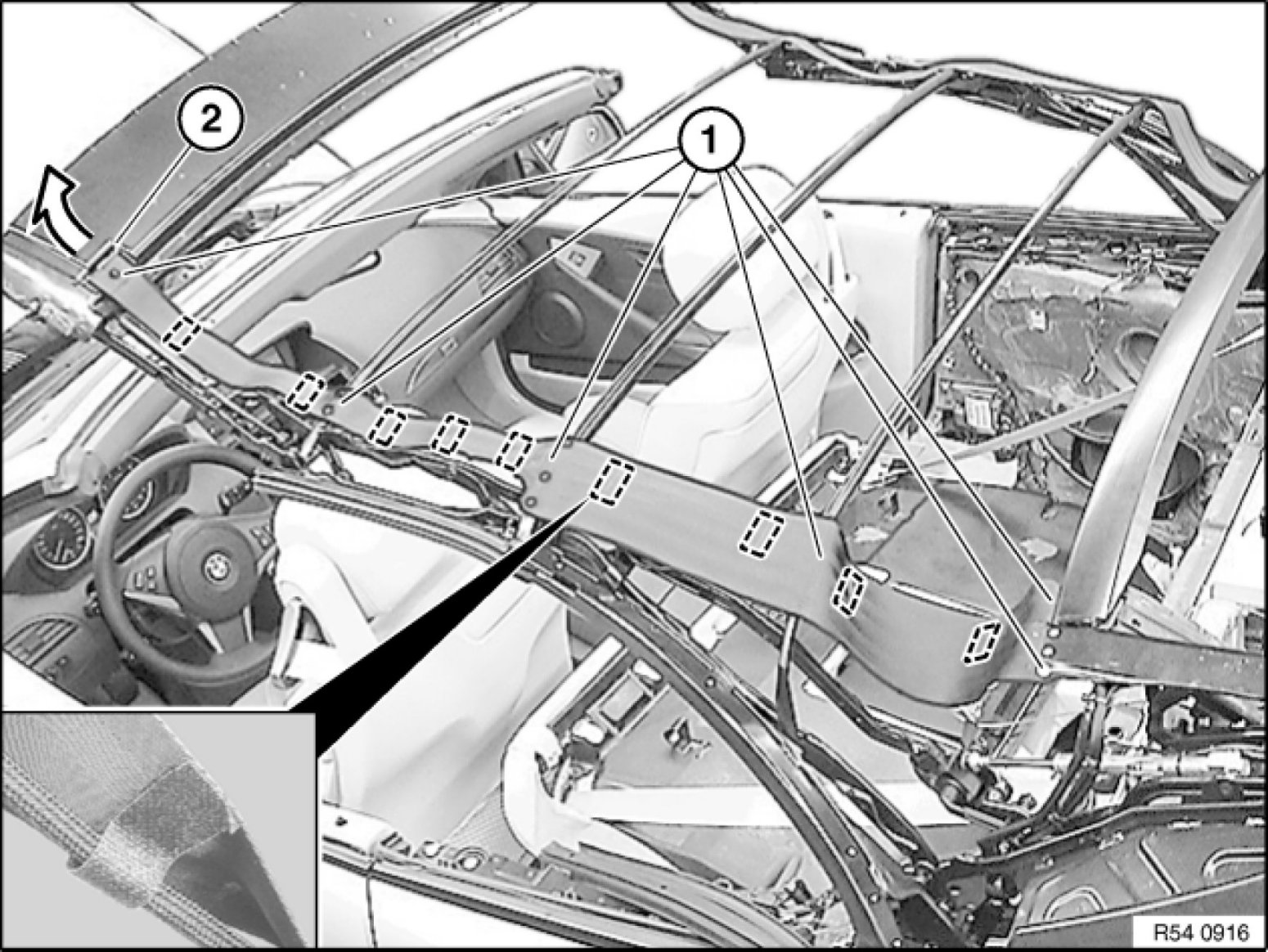

Release screws (1).
Open Velcro-type fastener in marked area.

Disengage locking pin (2) and remove tensioning belt.

Installation:
Make sure wiring harness is laid without kinks.

Make sure locking pin is correctly positioned in convertible top frame.
