54 34 130 Removing and installing or replacing headlining in convertible top

54 34 130 - Removing and installing or replacing headlining in convertible top





Necessary preliminary tasks:
- Remove cowl panel trim 54 34 127 Removing and installing/replacing cowl panel trim (convertible top fastener) (convertible top fastener)
- Support convertible top compartment lid in service position Procedures





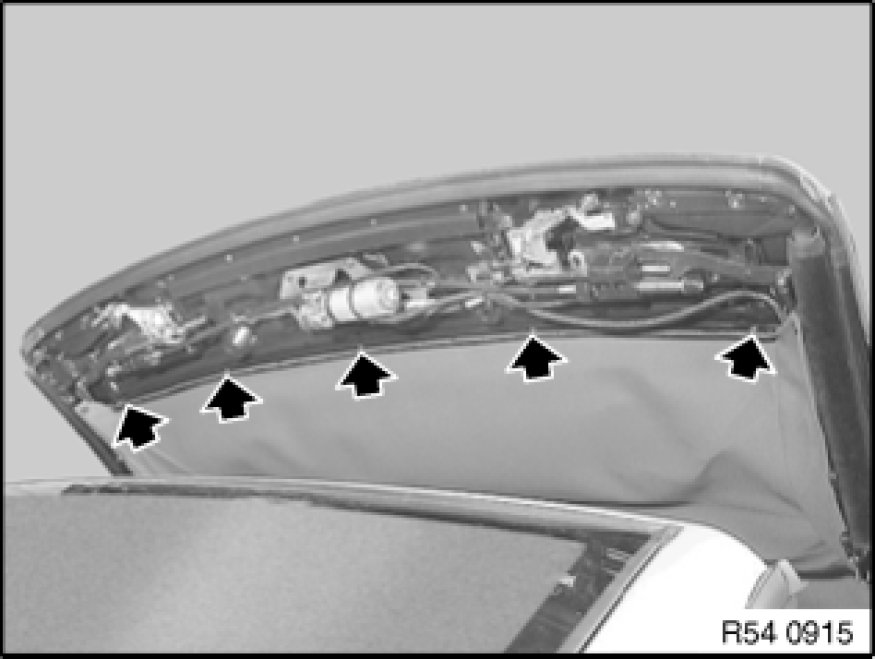

Unfasten screws.

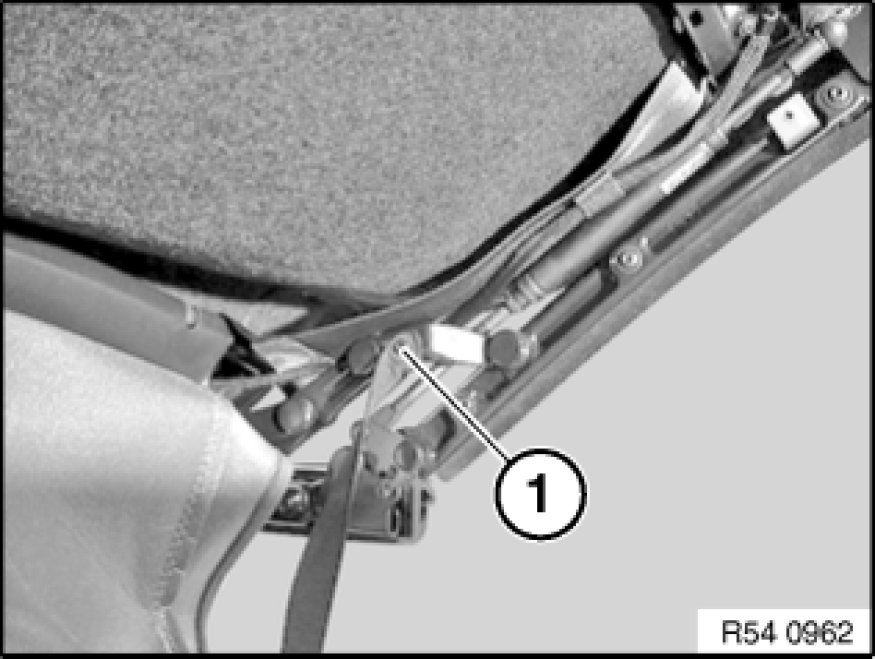

Release Torx screw (1) from front strap on left and right.

Installation:
Replace Torx screws and insert with Loctite.





Convertible top rod (bow), front:
Unfasten screws.





Convertible top rod (bow), middle:
Unfasten screws.





Convertible top rod (bow), rear:
Unfasten screws.

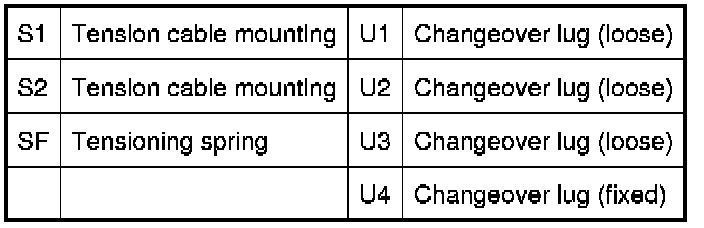

Overview of front straps:









Course of front straps:
S1 through U1
S2 through U3, U4
SF through U3, U2

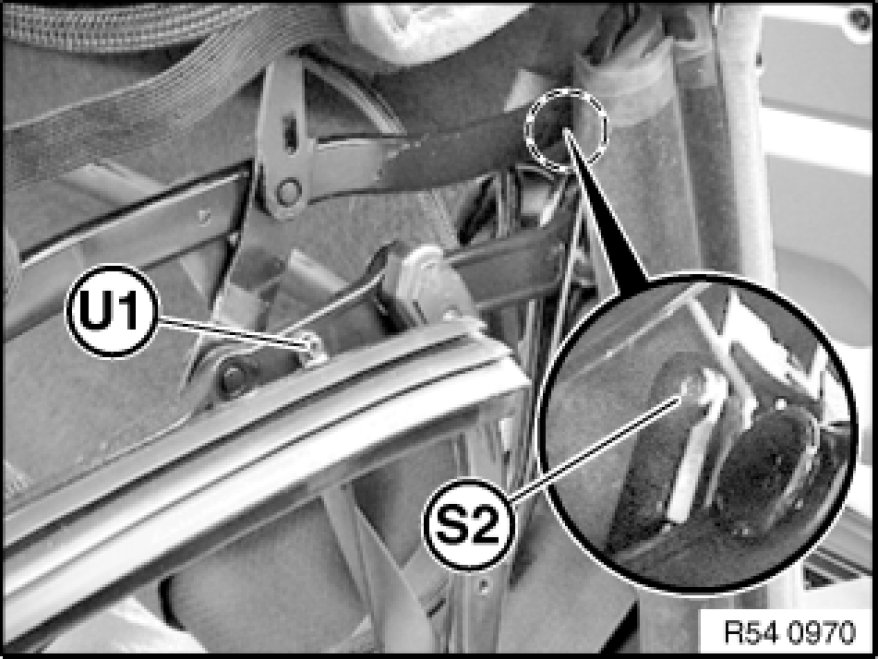

Release Torx screw from tension cable mounting (S2) on convertible top frame.
Release Torx screw from changeover lug (U1).

Installation:
Replace Torx screws and insert with Loctite.
Observe course of front straps.

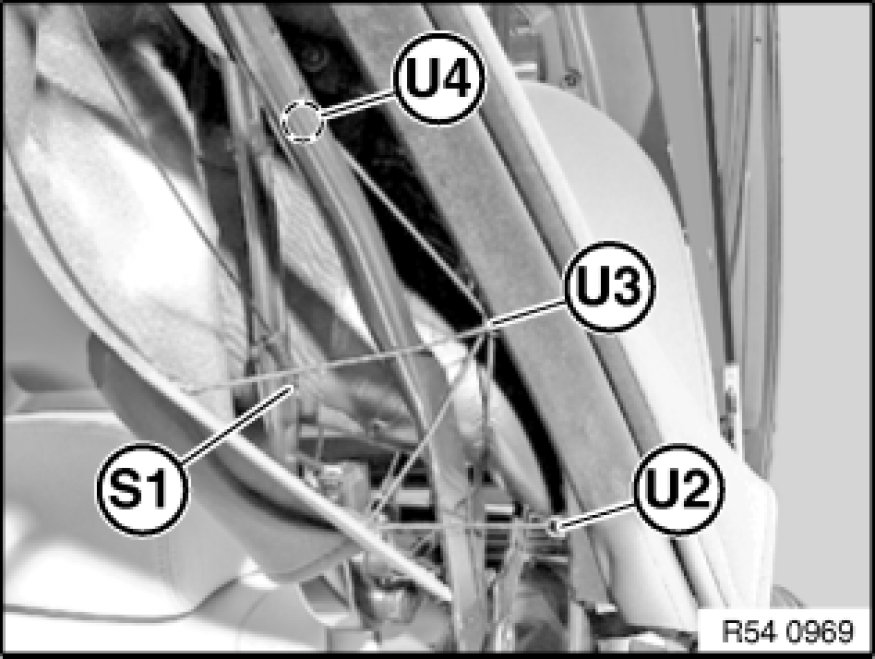

Release Torx screws of changeover lugs (U2, U3, U4) for tension cable.
Release Torx screw from tension cable mounting (S1) on convertible top frame.

Installation:
Replace Torx screws and insert with Loctite.
Observe course of front straps.

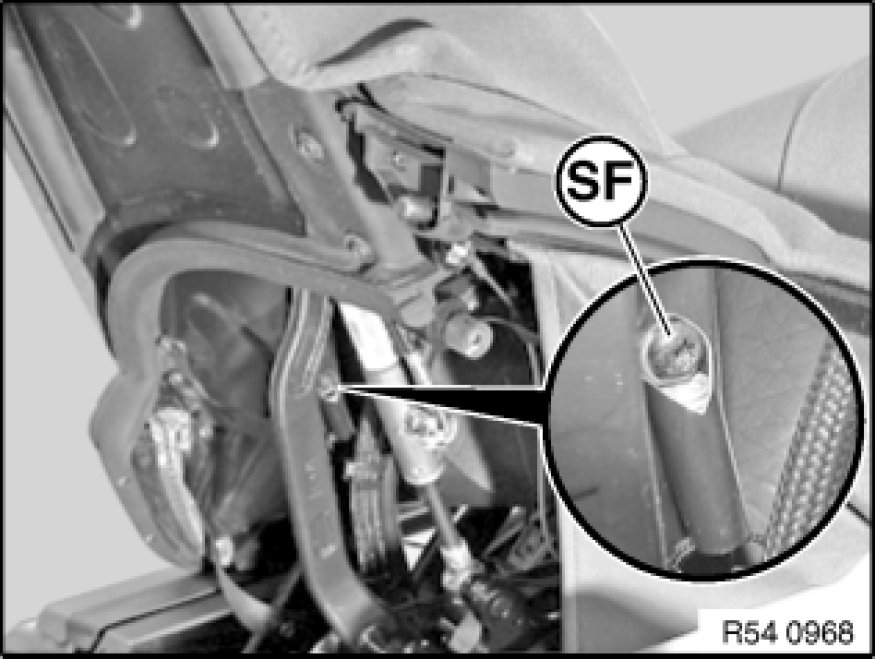

Release Torx screw from tensioning spring (SF).
Feed out tension cables.

Installation:
Replace Torx screws and insert with Loctite.
Observe course of front straps.





Installation:

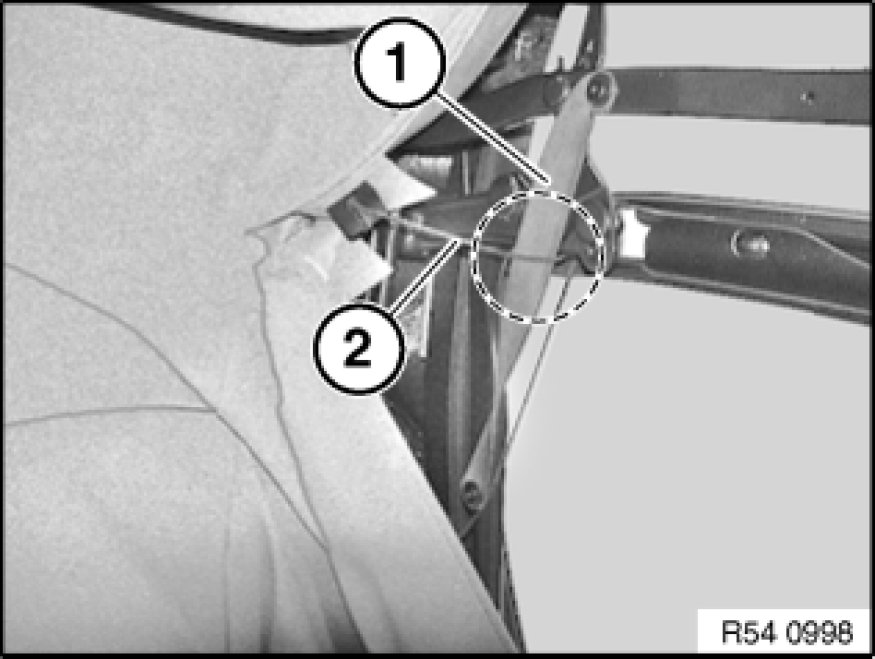

Front strap (1) must be fitted in twisted condition.
Tension cable (2) must be above front strap (1), see marked area.

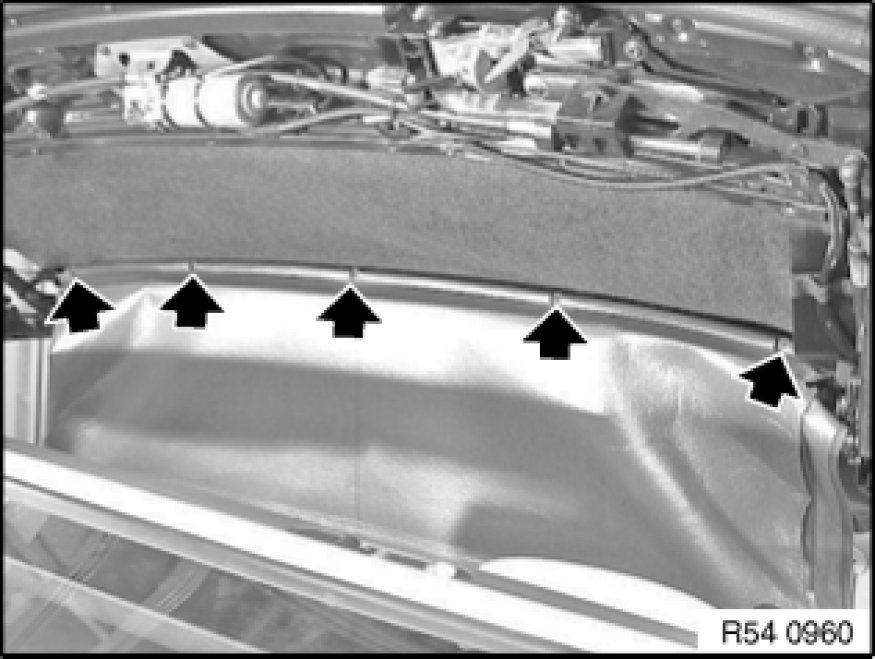

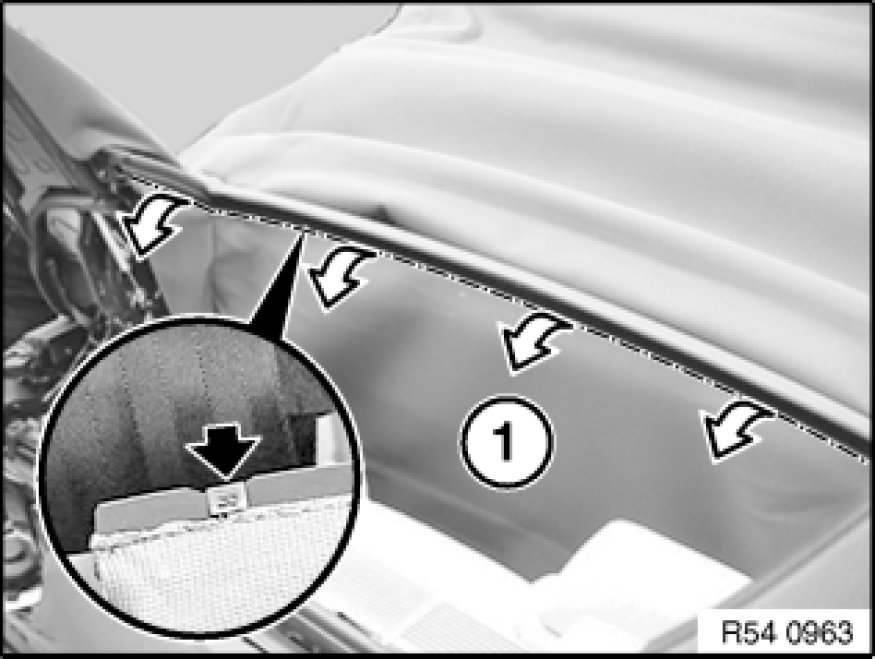

Pull welt of roofliner (1) out of convertible top frame.

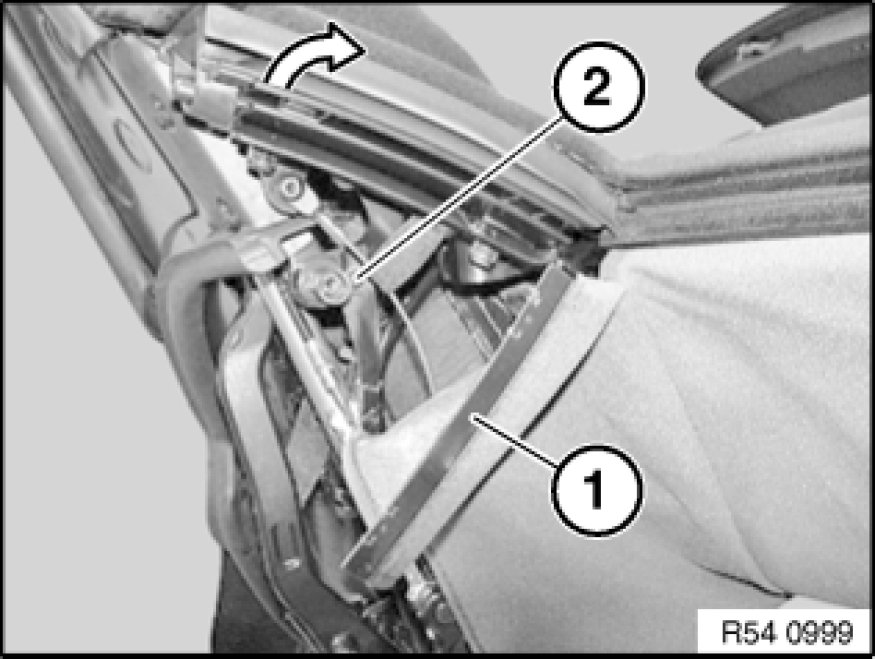

Release Torx screw (2).

Installation:
Replace Torx screws and insert with Loctite.

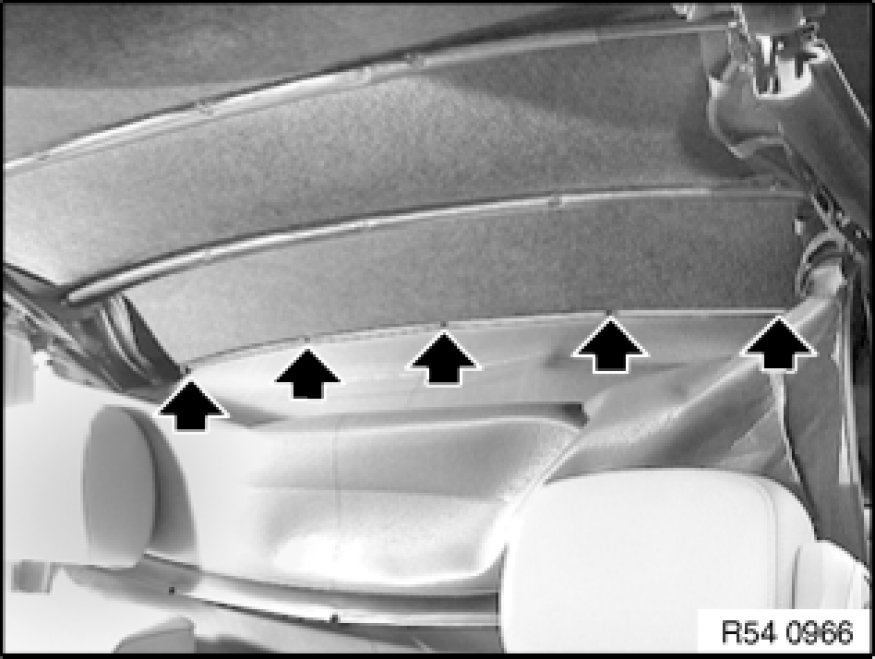

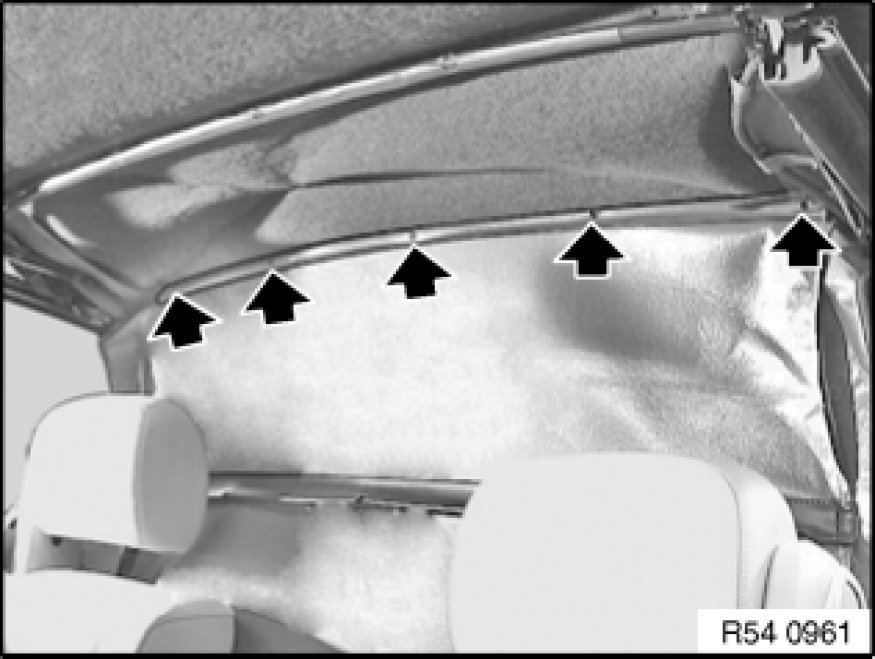

Pull welt of roofliner (1) out of convertible top frame.

Installation:
Make sure retainers are correctly seated on welt.

Remove roofliner from car.
