54 34 127 Removing and installing/replacing cowl panel trim (convertible top fastener)

54 34 127 - Removing and installing/replacing cowl panel trim (convertible top fastener)





Necessary preliminary tasks:
- Open convertible top partially until work area is accessible

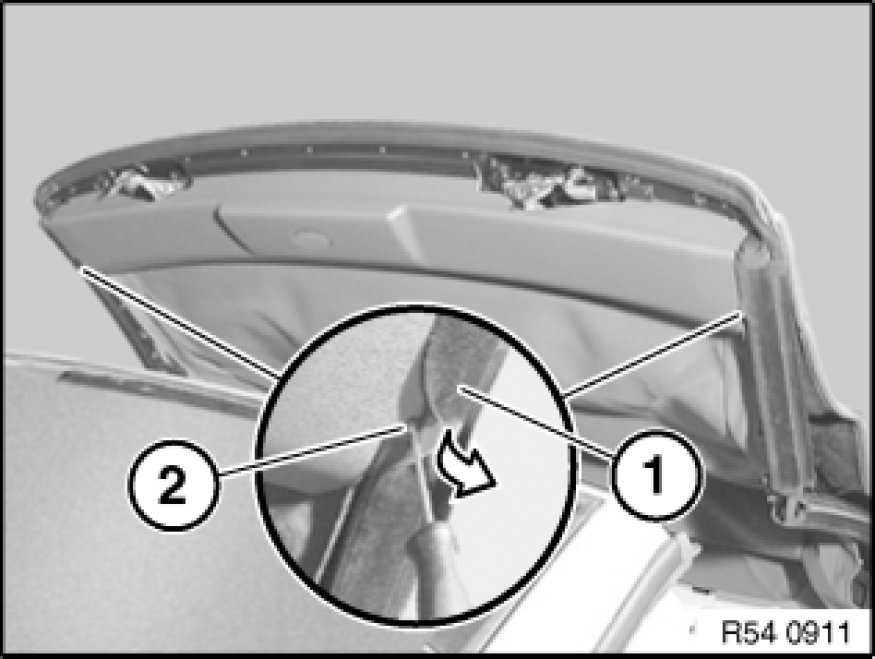

Carefully raise seal (1) and expose screw (2).
Release screws (2).





Unclip trip towards front (1) and remove towards bottom (2).

Installation:
If necessary, replace faulty clips.
