54 34 018 Removing and Installing/Replacing Convertible Top Compartment

54 34 018 - Removing and installing/replacing convertible top compartment





Open convertible top compartment lid until all hydraulic cylinders are completely extended.
Support convertible top compartment lid in service position Procedures.

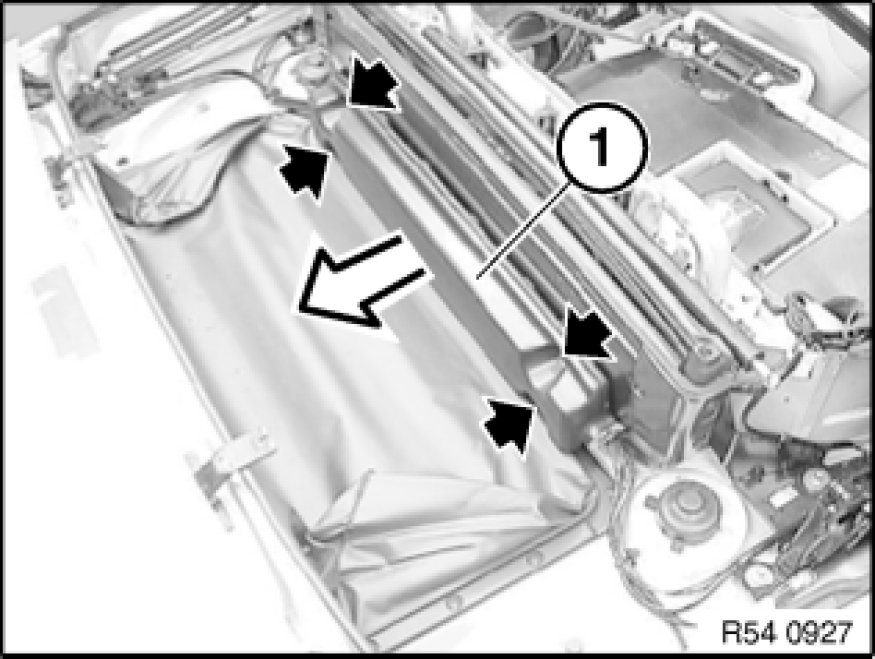

Unfasten screws.
Remove complete hydraulic unit (1) until screws of convertible soft top compartment are exposed.

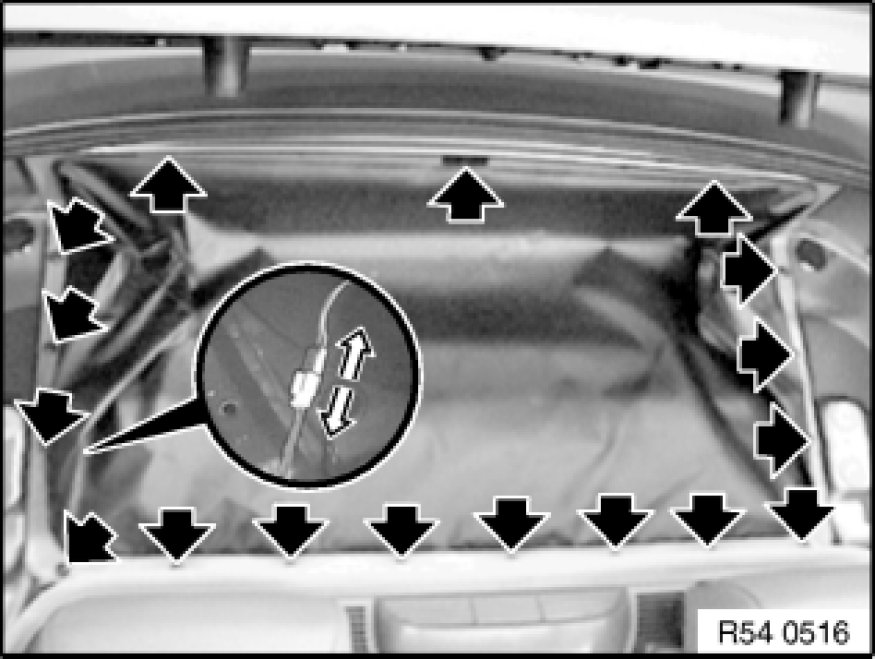

Release screws all round.
Tightening torque 54 34 18AZ 54 31 Convertible Top, Frame and Actuation (Mechanical Components).
Raise convertible top compartment slightly and move a little to left.
Unfasten plug connection and disconnect.
Lift out convertible top compartment toward top and front.
