51 71 120 Removing and Installing/Replacing Cowl Panel Seal

51 71 120 - Removing and installing/replacing cowl panel seal





Necessary preliminary tasks:
- Remove moulding on rain gutter on left/right





Note:
The operation is described on the left side; proceed in the same way for the right side.

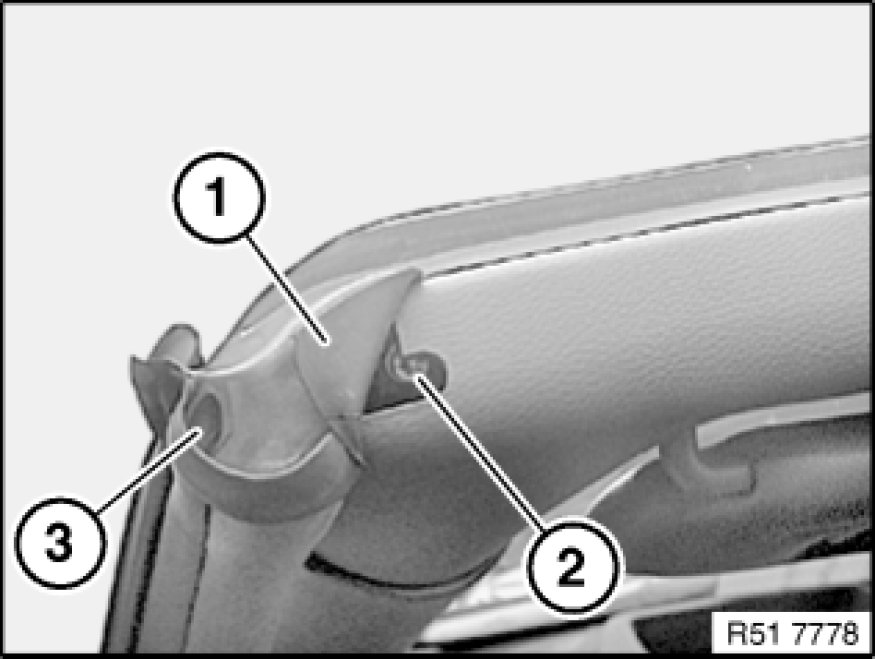

Pull back tab (1) and release screw (2) underneath.

Installation:
Water drainage channel (3) must not be clogged.





Detach seal (1) in direction of arrow from window frame.

Installation:
If necessary, moisten seal (1) with water for better fitting.
