Convertible Top Latch: Service and Repair

54 34 140 - Removing and installing/replacing left or right base plate





Necessary preliminary tasks:
- Remove front roofliner trim 51 44 150 Replacing Trim For Front Roofliner

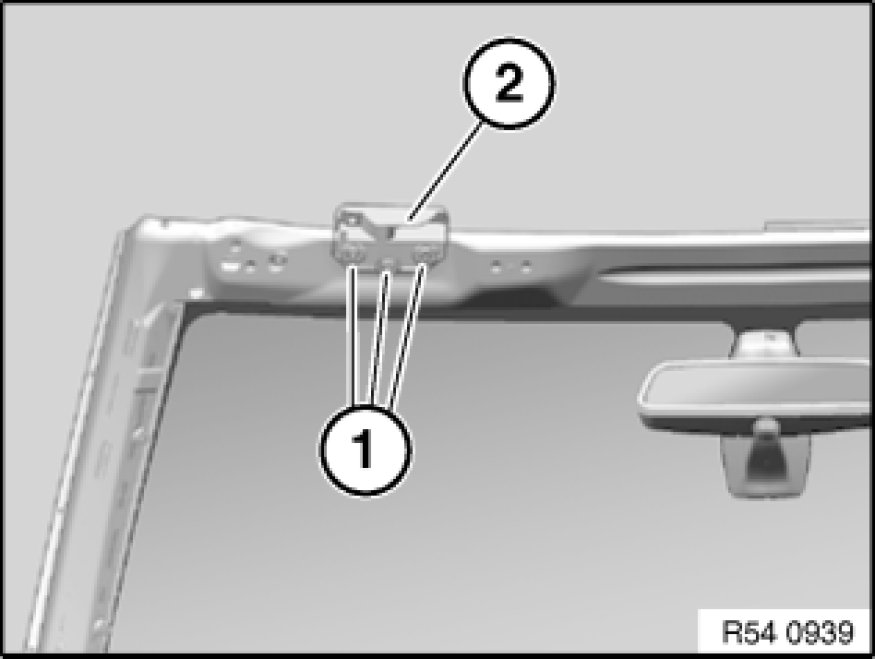

Release screws (1).
Tightening torque 54 34 21AZ 54 31 Convertible Top, Frame and Actuation (Mechanical Components).
Remove base plate.
