Convertible Top Latch Actuator: Service and Repair

67 61 531 - Removing and installing/replacing drive for convertible top fastener





Necessary preliminary tasks:
- Move convertible top compartment lid into service position Procedures
- Remove cowl panel trim 54 34 127 Removing and installing/replacing cowl panel trim (convertible top fastener)

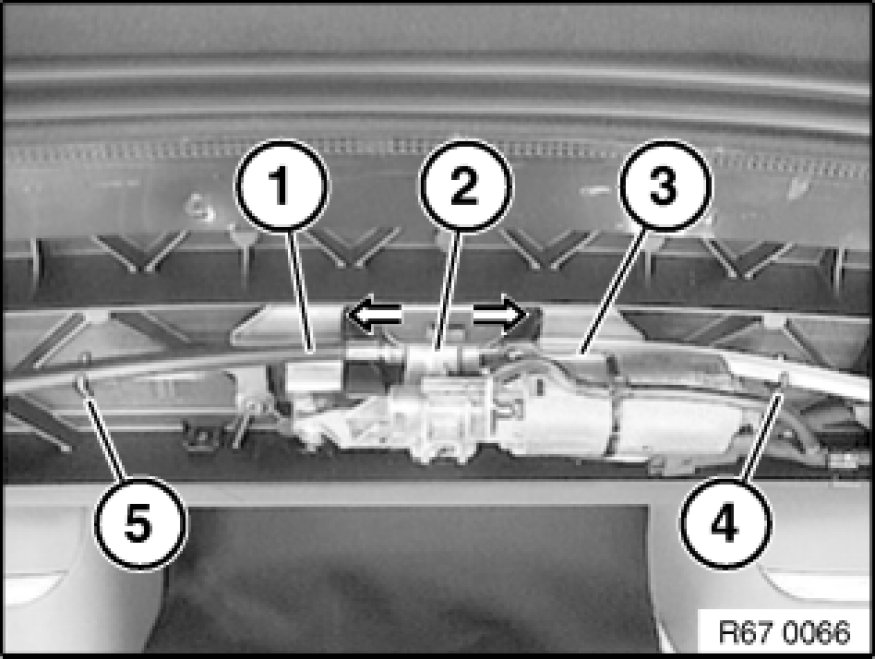

Unhook drive shafts (1) and (3) from mounts (5) and (4).
Pull off drive shafts (1) and (3) in direction of arrow from drive for convertible top fastener (2).

Installation:
Do not mix up drive shafts (1) and (3), pay attention to relevant markings.





Installation:
Turn relevant drive shaft (1) to open convertible top lock (2) completely to outer side of car.

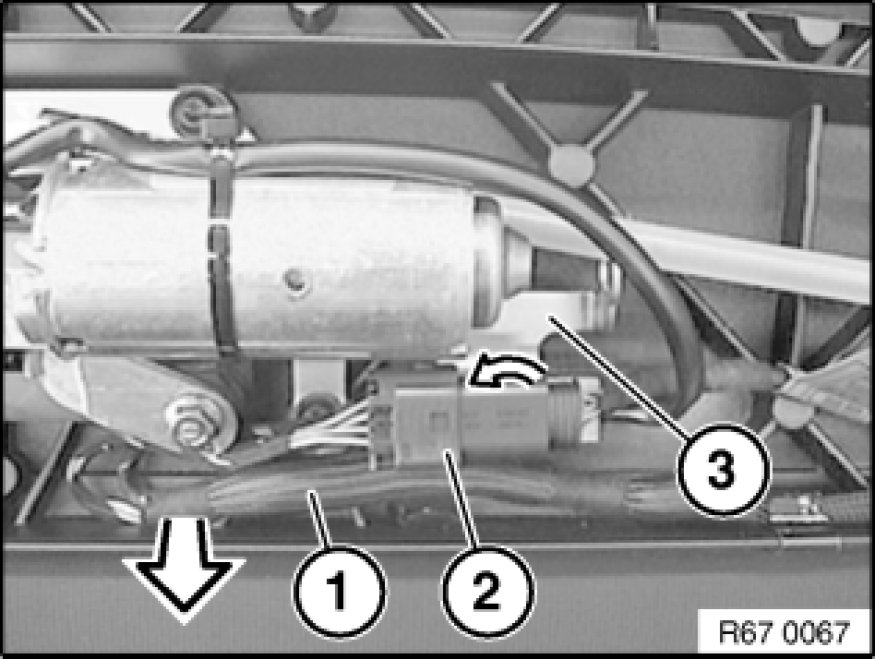

Pull out wiring harness (1) in direction of arrow.

Installation:
Ensure wiring harness (1) is laid correctly.

Turn plug connections (2) completely in direction of arrow and unclip from fixture (3).

Unlock plug connections (2) and disconnect.





Unlock plug housing (3) and disconnect in direction of arrow from plug housing (4).

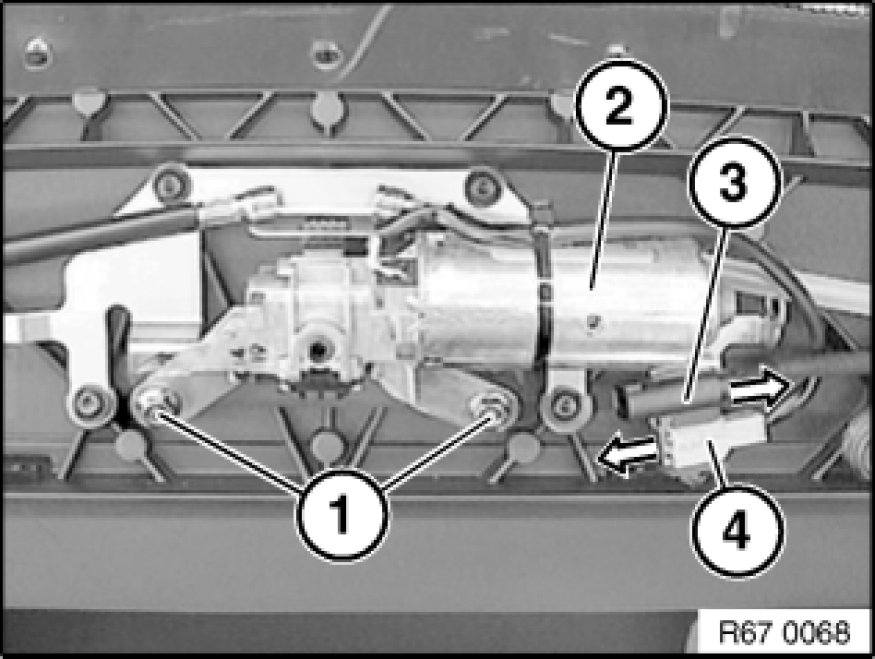

Release nuts (1) and remove drive for convertible top lock (2).
Tightening torque 54 34 1AZ 54 34 Motor-Driven Convertible Top (Electrical Components).

Installation:
Screws for nuts (1) are microencapsulated.
