Convertible Top Hydraulic Fluid: Testing and Inspection

54 34 ... - Topping up/extracting fluid, checking fluid level





Note:
No changing of the hydraulic fluid necessary.
- The hydraulic fluid does not have to be changed because the system is filled with life-time fluid.
- Only the approved hydraulic fluid may be used in the event of leaks.





Note:
All hydraulic cylinders must be completely extended.

Support convertible top compartment lid in service position Procedures.





Checking fluid level:

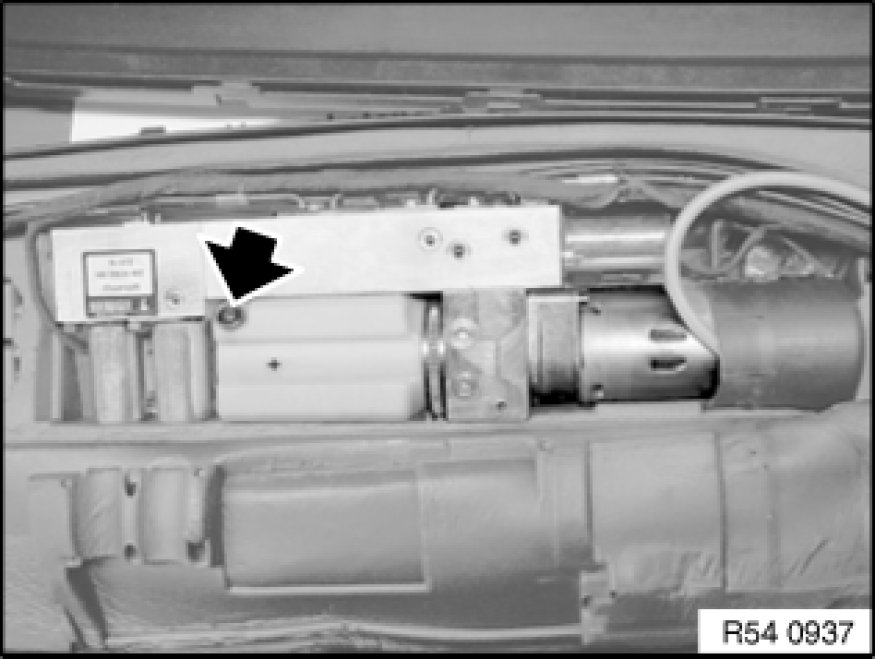

Unfasten screws.

Installation:
Replace Torx screws and insert with Loctite.

Unclip front cover (1) for hydraulic unit.

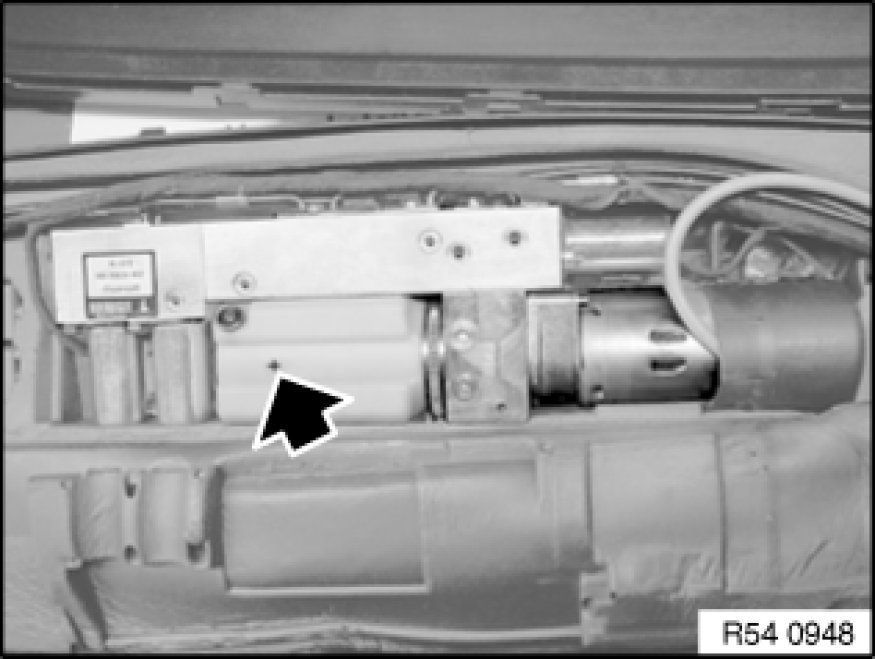

Fluid level must be within the markings (arrow) when the unit is horizontal.





Topping up fluid:
Align hydraulic unit horizontally.
Open fluid filler plug.
Pour in required amount of fluid from fluid bottle.

Installation:
Check fluid level in the meantime.
Pour in hydraulic fluid only up to marking on fluid reservoir.





Important!
Protect components and work area with suitable materials (e.g. cloths).

Extracting fluid:

Open fluid filler plug.
Tilt hydraulic unit and let fluid flow out or draw off with a suitable auxiliary apparatus.
