Removing and Installing/Replacing Left Hydraulic Cylinder for Convertible Top Compartment Lid

54 34 006 - Removing and installing/replacing left hydraulic cylinder for convertible top compartment lid





Necessary preliminary tasks:
- Follow repair instructions for hydraulic system
- Support convertible top compartment lid in service position Procedures





Caution!
Hydraulic fluid may emerge from the disconnected lines and the open connections on the hydraulic cylinder.
Protect components and work area with suitable materials (e.g. cloths).

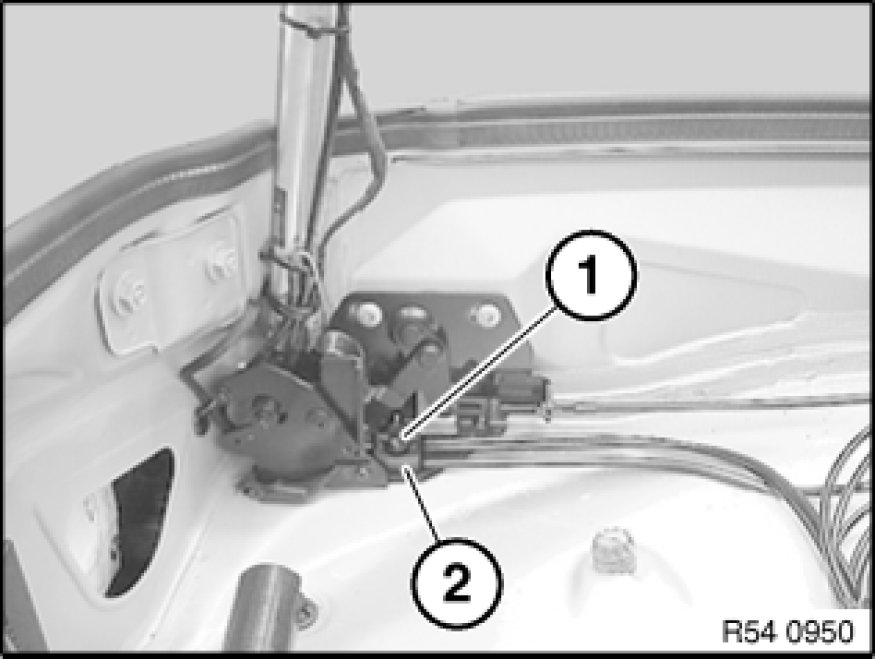

Release screw (1) and remove holder (2) for hydraulic lines.

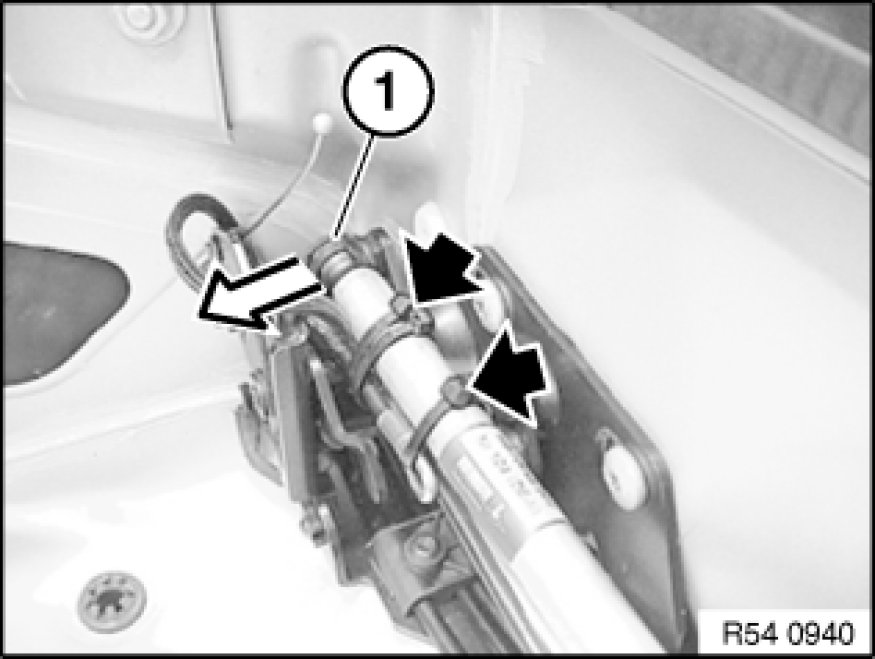

Raise locking clip (1) and detach cylinder from ball end.
Disconnect cable straps.

Installation:
Replace faulty cable straps.
Hall sensor line must be tied with cable straps.





Disconnecting hydraulic lines from cylinder:

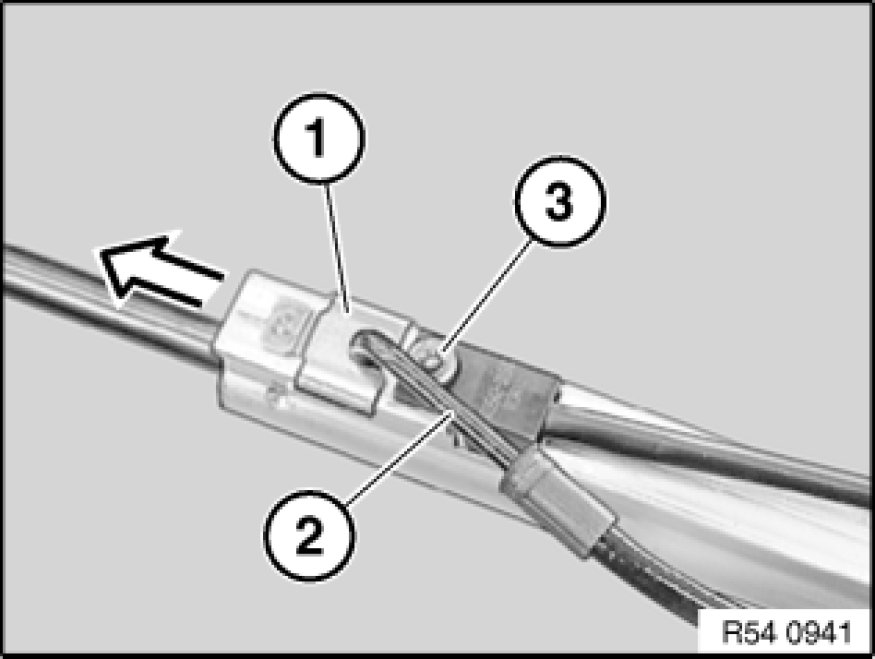

Open retainer (1) at bottom/top on cylinder with screwdriver.
Detach hydraulic lines (2).

Important!
Protect joints (lines and cylinder) against dripping fluid, e.g. with a cleaning cloth.
Observe hose markings.

Left hydraulic cylinder only:

Release screw (3) and remove Hall sensor.

Installation:
Make sure metal angle is correctly installed under Hall sensor.
