Removing and Installing/Replacing Hydraulic Cylinder for Left Clamping Bar

54 34 008 - Removing and installing/replacing hydraulic cylinder for left clamping bar





Necessary preliminary tasks:
- Follow repair instructions for hydraulic system
- Partially remove convertible top fabric Service and Repair until working area is accessible





Caution!
Hydraulic fluid may emerge from the disconnected lines and the open connections on the hydraulic cylinder.
Protect components and work area with suitable materials (e.g. cloths).





Open convertible top compartment lid until all hydraulic cylinders are completely extended.
Support convertible top compartment lid in service position Procedures.





Removing hydraulic cylinder:

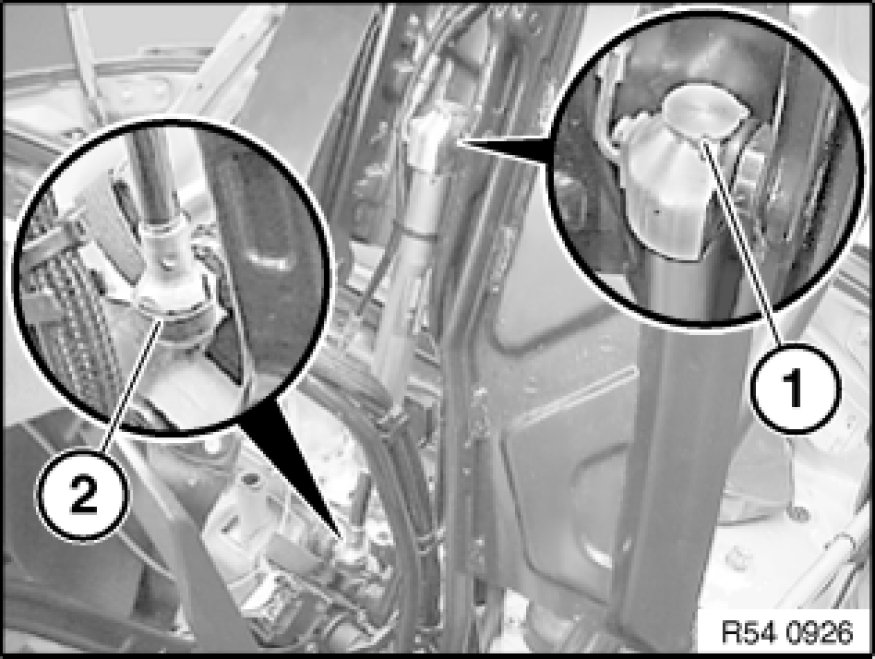

- Remove retaining ring (1).
- Slide locking clip (2) upwards.
- Detach ball sockets at sides.
- Feed out hydraulic cylinder.

Installation:
- Carry out operational check Component Tests and General Diagnostics.
- Check convertible top settings Adjustments.
- Check fluid level .

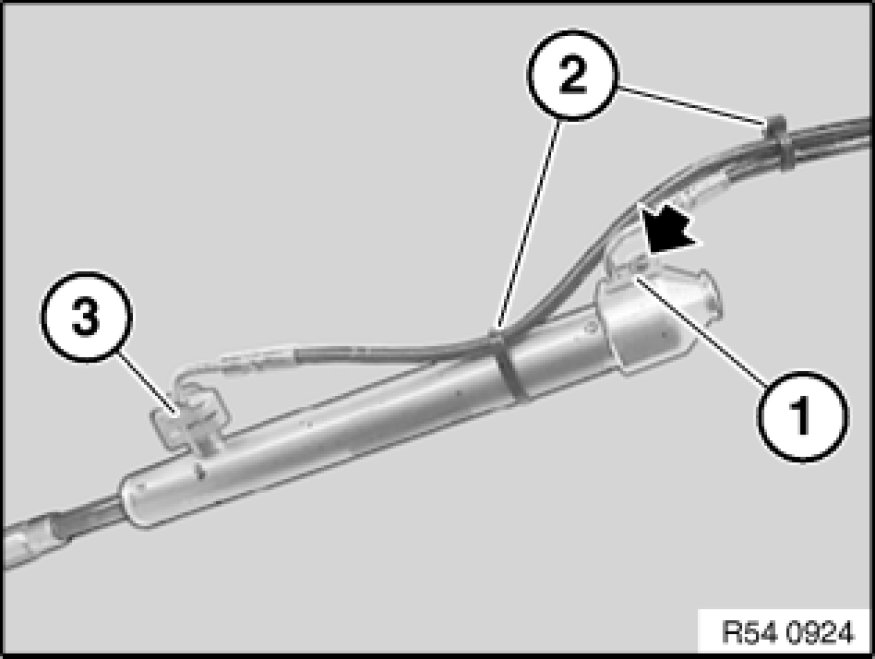

Release screw and remove lockplate (1).
Tightening torque 54 34 12AZ 54 34 Motor-Driven Convertible Top (Hydraulic Components).
Detach locking clip (3).
Detach cable straps (2).

Installation:
Replace faulty cable straps.

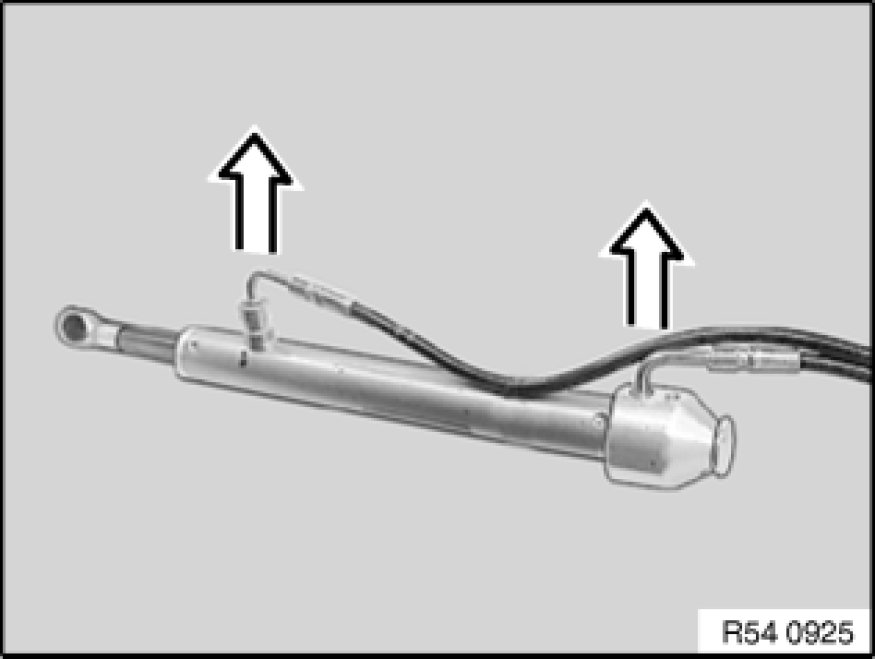

Detach hydraulic lines.

Important!
Protect joints (lines and cylinder) against dripping fluid, e.g. with a cleaning cloth.

306.5 ± 2 mm hydraulic cylinder protected with net hose on delivery.
