Adjusting Left or Right Convertible Top Compartment Lid Lock

54 34 070 - Adjusting left or right convertible top compartment lid lock





Necessary preliminary tasks:
- Support convertible top compartment lid in service position Procedures

Note:
Prerequisite:
Following components are properly installed and adjusted:
- Convertible top compartment cover
- Seals

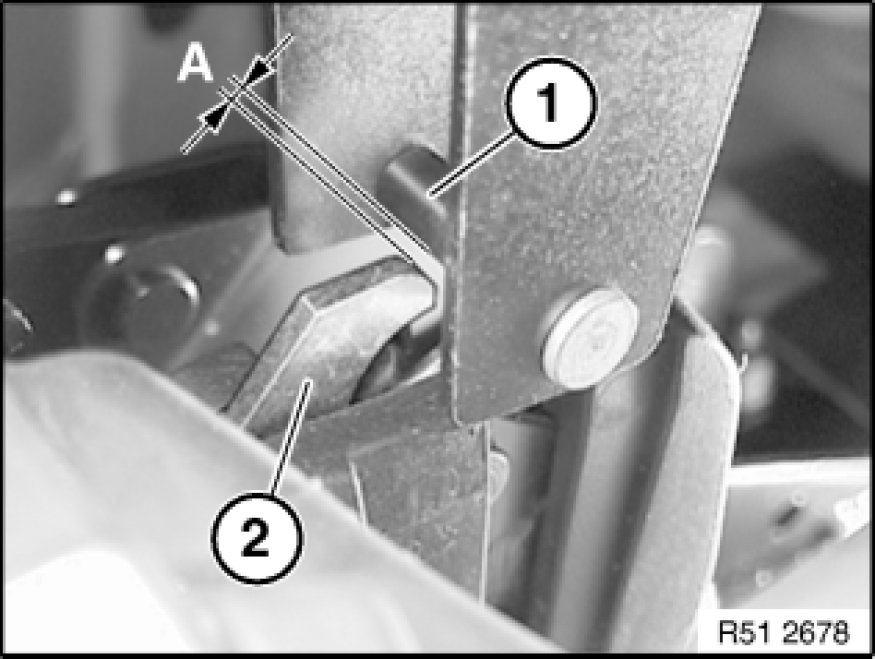

Striker (1) must immerse at distance (A) into rotary latch (2).
A - = approx. 3 mm
Striker (2) is centered by the wedge shape of the convertible top compartment lid lock (1).

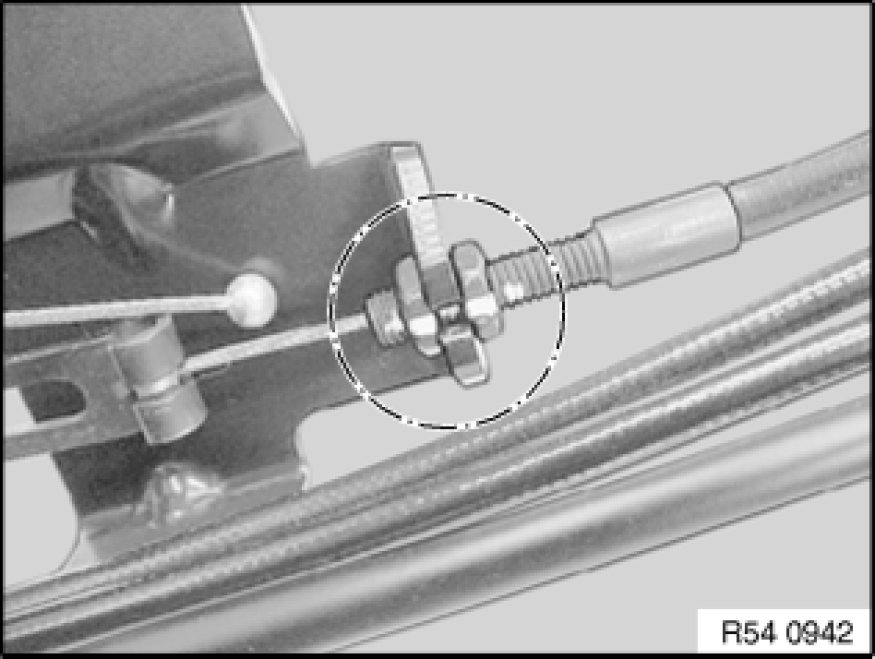

Distance (A) is adjusted via the Bowden cable on the kinematics box.

Note:
If necessary, mark the position to ensure correct alignment during removal and installation.
