Removing and Installing/Replacing Retaining Ring on Left or Right Door Mirror (M5/M6)

51 16 045 - Removing and installing/replacing retaining ring on left or right door mirror (M5/M6)





Necessary preliminary tasks:
- Remove mirror glass Replacing Mirror Glass

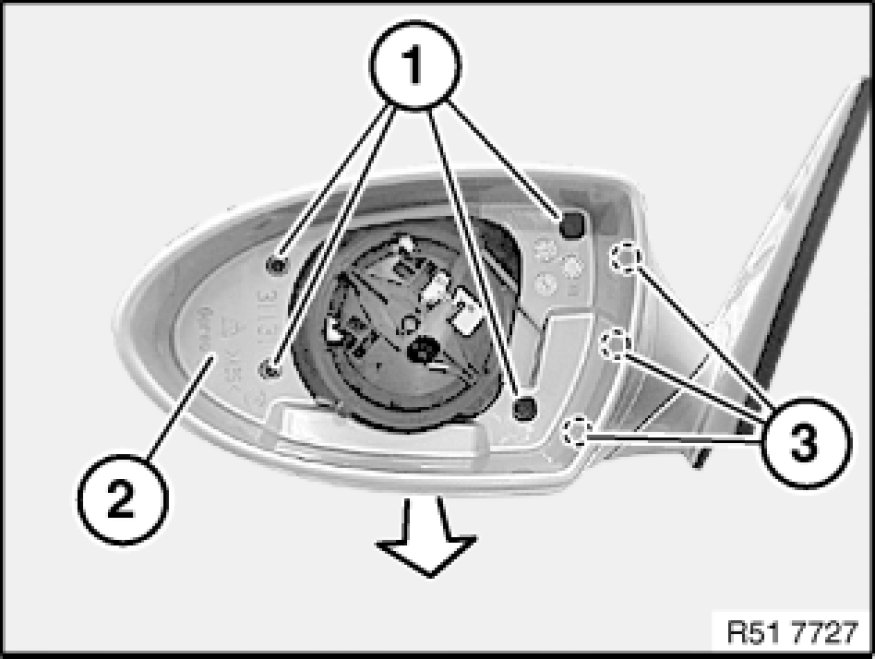

Release screws (1).
Release retaining ring (2) at catches (3) and remove towards rear.
Tightening torque 51 16 14AZ [1][2][3]Mirrors.





Installation:

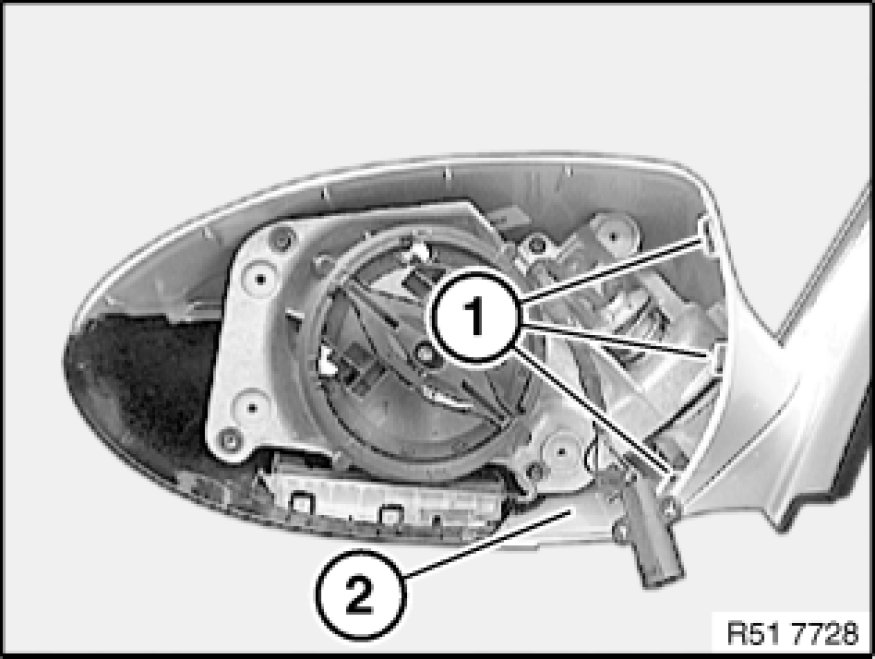

Catches (1) on door mirror (2) must not be damaged.
