Utility Storage Compartment Lock: Service and Repair

51 16 245 - Removing and installing/replacing lock cylinder for storage box





Necessary preliminary tasks:
- Remove storage compartment 51 16 200 Removing and Installing Storage Compartment

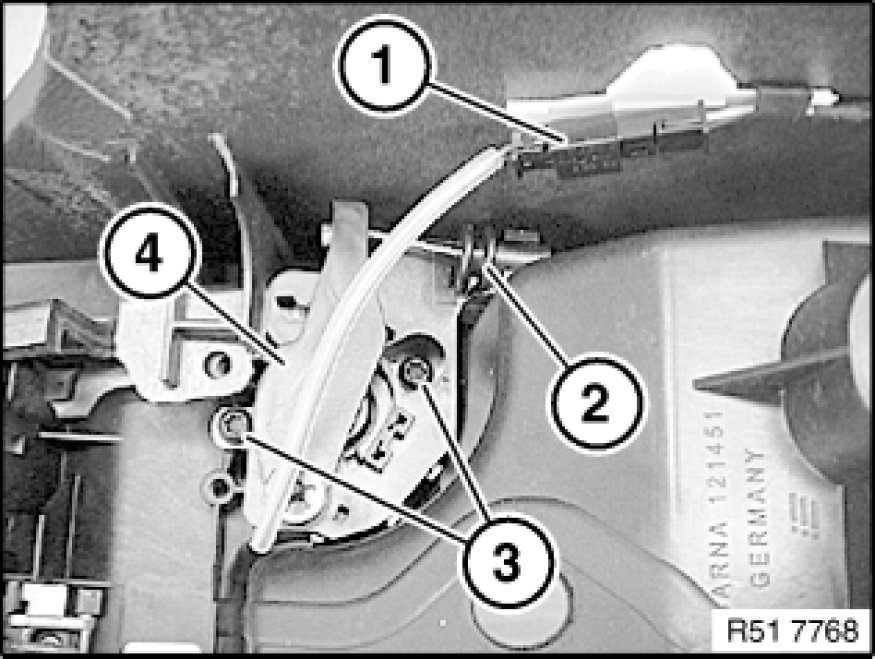

Disconnect connector (1).
Disconnect Bowden cable (2).
Release screws (3) and remove lock mechanism (4).





Important!
Ignition key must be inserted in lock cylinder otherwise coding of lock cylinder may fall out.
Proceed with extreme care when releasing catches (2). Catches (2) must not break off.

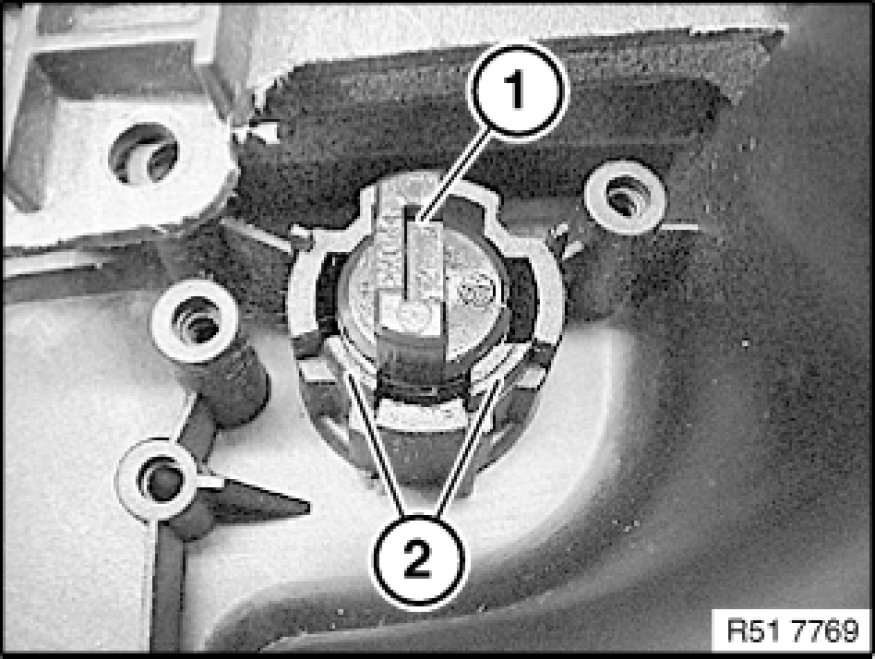

Carefully release catches (2) and pull out lock (1) with ignition key.
