Removing and Installing/Replacing Trim on Armrest of Left or Right Side Trim Panel

51 43 ... - Removing and installing/replacing trim on armrest of left or right side trim panel





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

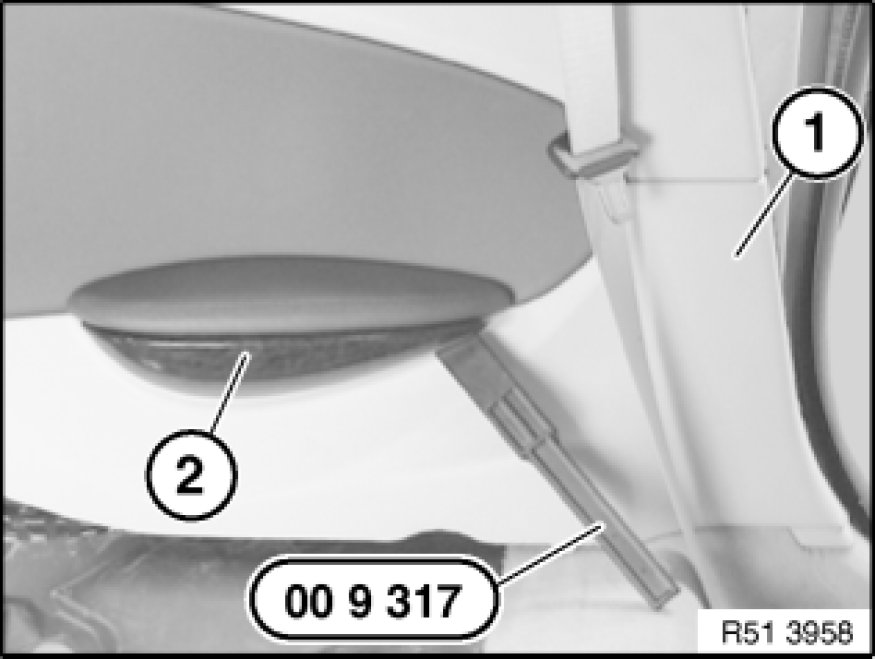

Lever out trim (1) on side trim panel (2) with special tool 00 9 317 00 9 317 Trim Panel Wedge in direction of arrow and remove.

Important!
Do not damage side trim panel (1) when removing.





Installation Note:

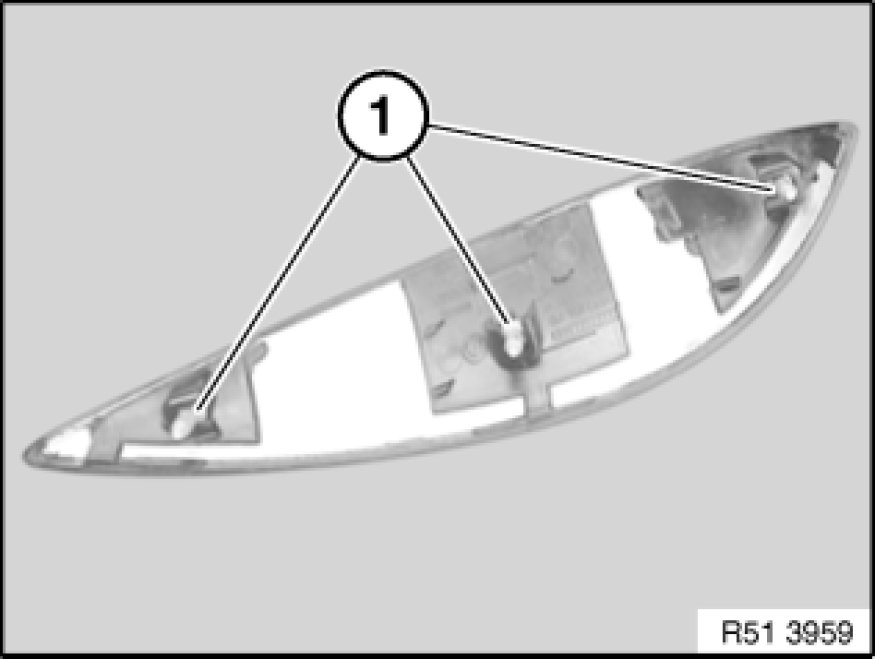

Guides (1) must not be damaged.
