Removing and Installing/Replacing Side Trim Panel, Footwell, on A-Pillar, Right

51 43 075 - Removing and installing / replacing side trim panel, footwell, on A-pillar, right





Necessary preliminary tasks:
- Remove front entrance cover strip (inside) 51 47 000 Removing and Installing/Replacing Front (Inside) Left or Right Entrance Cover Strip





Detach mucket on door (1) in area of side trim panel (2).
Unclip side trim panel (2) in direction of arrow from retaining points (3).
Remove side trim panel (2).





Installation:

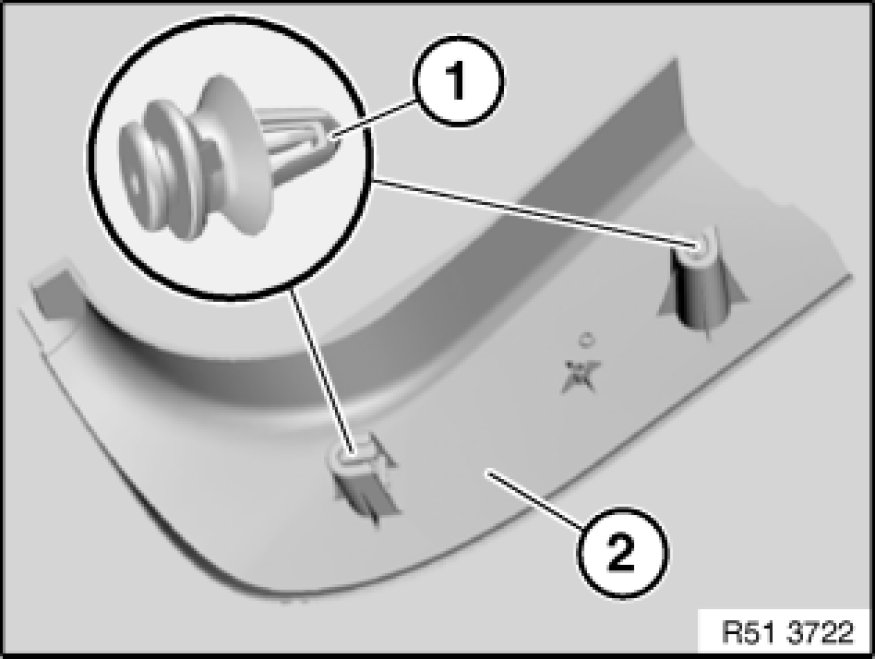

If necessary, lever out clips (1) remaining in bores.
If necessary, replace faulty clips (1).
Position side trim panel (2) preinstalled with clips (1) on associated bores and clip into place.
