Removing and Installing/Replacing Panel for Roof Pillar at Front (A-pillar), Left or Right

51 43 201 - Removing and installing/replacing panel for roof pillar at front (A-pillar), left or right

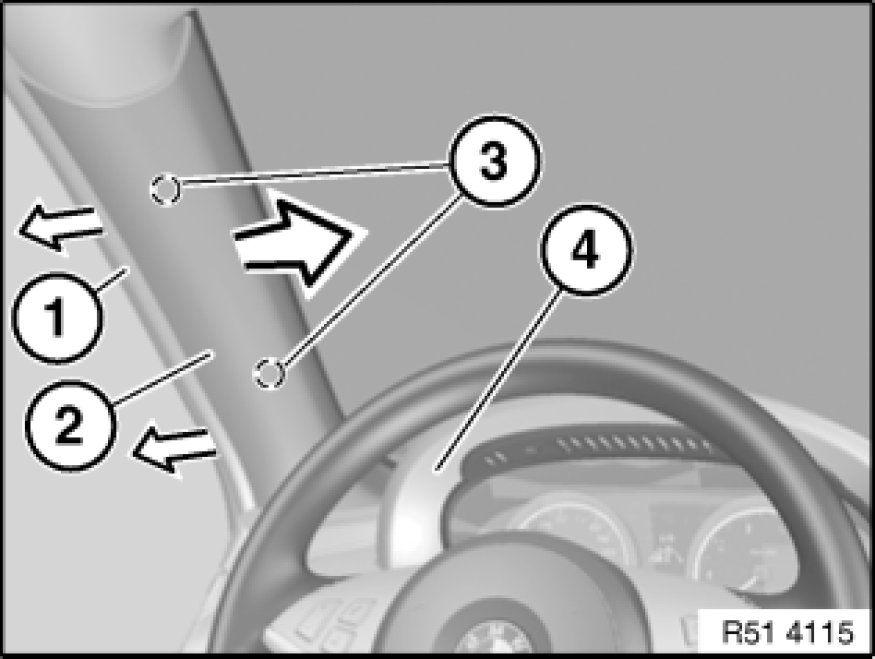

Detach mucket (1) in area of panel (2).
Unclip panel (2) at fastening points (3).
Feed out panel (2) from instrument panel (4) and remove.





Installation:

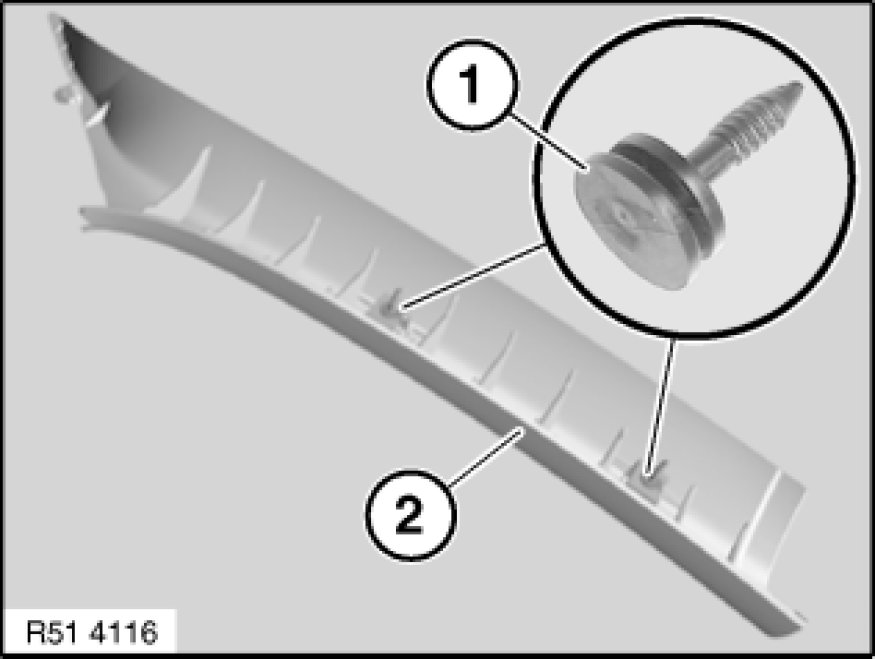

If necessary, lever out clips (1) remaining in rail.
If necessary, replace faulty clips (1).
Make sure guides (3) of panel (2) are correctly seated in associated mountings.
Position panel (2) preinstalled with clips (1) on associated bores and clip into place.
