Removing and Installing/Replacing Front Bottom Right Wheel Arch Trim




51 71 ... - Removing and installing/replacing front (bottom) right wheel arch trim





Turn steering wheel/front wheel to left.

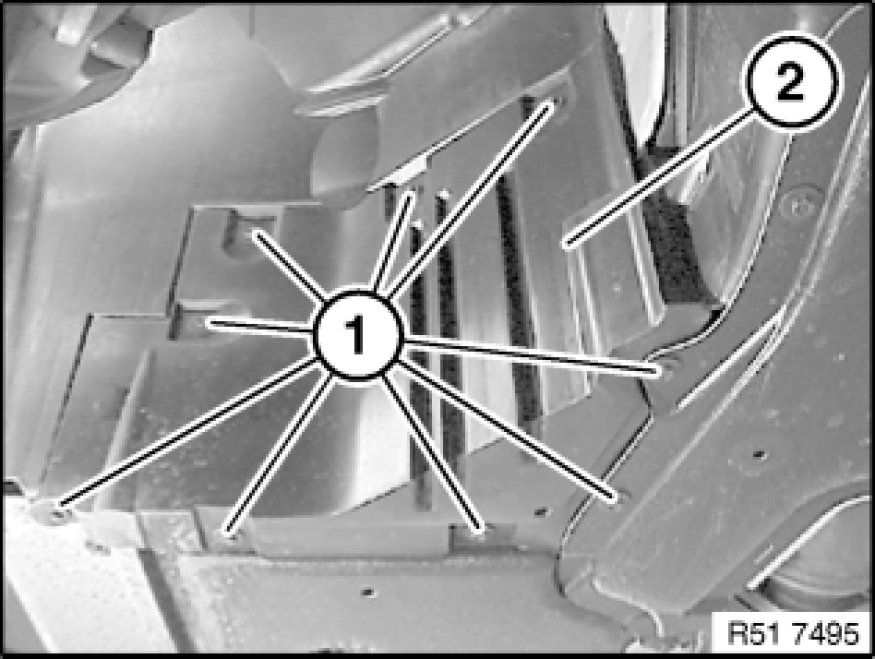

Release screws (1).
Remove wheel arch trim (2) under assembly underside protection at side rear.
