51 46 050 Removing and Installing/Replacing Top Trim on Rear Apron

51 46 050 - Removing and installing/replacing top trim on rear apron





Necessary preliminary tasks:
- Remove luggage compartment floor trim 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel (luggage compartment mat).

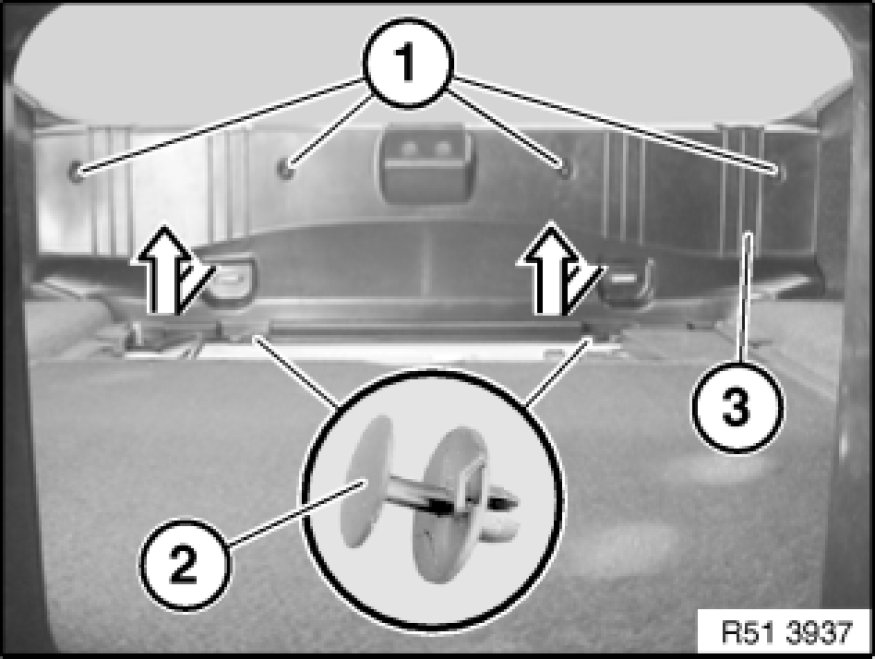

Release protective caps (1) and screws underneath.
Lever out expander rivets (2).
Lever out trim (3) inwards/upwards.

Installation:
Replace damaged protective caps (1) and expander rivets (2).
Make sure rear lid seal is correctly seated.





Installation:

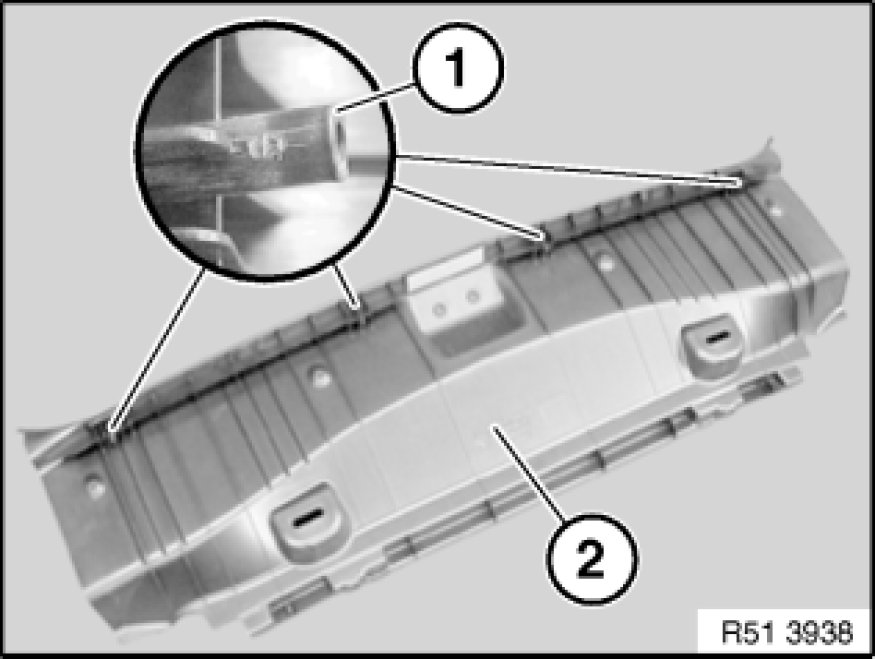

Guides (1) of trim (2) must not be damaged.
