51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel

51 45 181 - Removing and installing/replacing bottom right trim for instrument panel

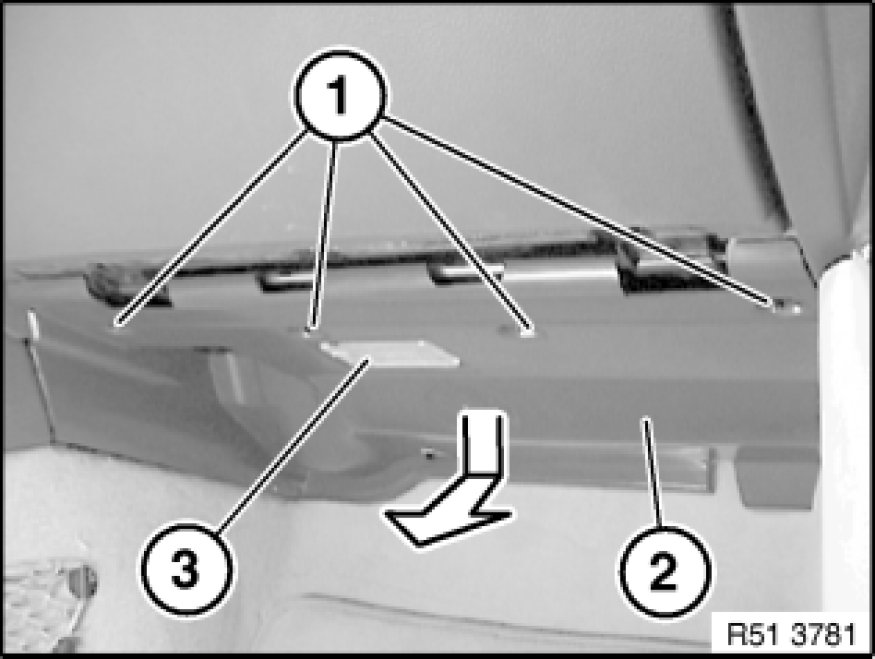

Release screws (1).
Feed out bottom right instrument panel trim (2) in direction of arrow.
Disconnect plug connection of footwell light (3).
Remove bottom right instrument panel trim (2).





Installation:

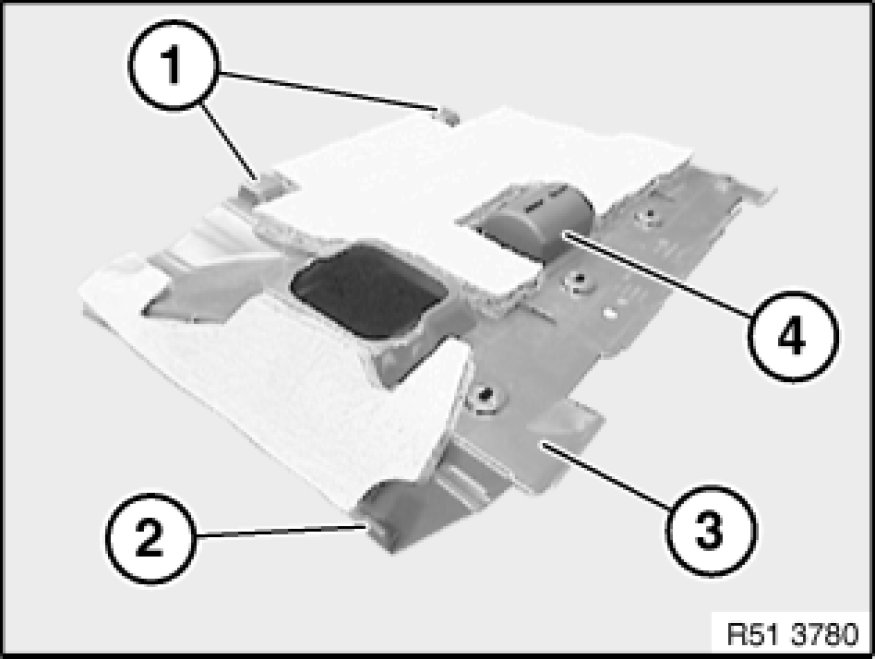

Mounts (1) and guide (2) of bottom right instrument panel trim (3) must not be damaged.

Replacement:
- Remove footwell light Removing and Installing/Replacing Footwell Light(4).
