51 45 115 Removing and Installing Speaker Frame on Panel For Instrument Panel At Top

51 45 115 - Removing and installing speaker frame on panel for instrument panel at top





Special tools required:
- 00 9 341

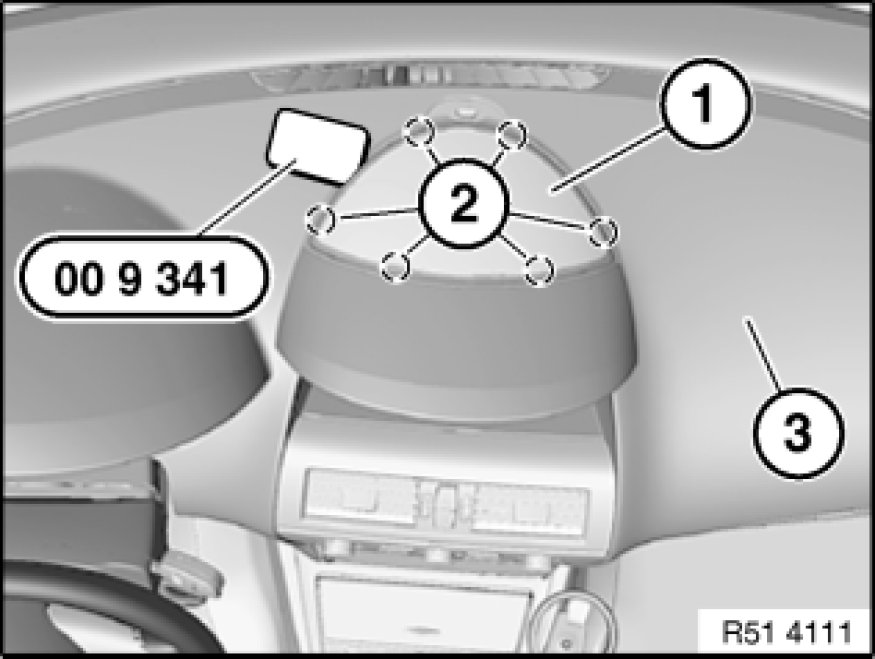

Unclip speaker frame (1) with special tool 00 9 341 at points (2).

Raise speaker frame (1) slightly from instrument panel (3) and disconnect plug connection at solar sensor.

Remove speaker frame (1).





Installation:

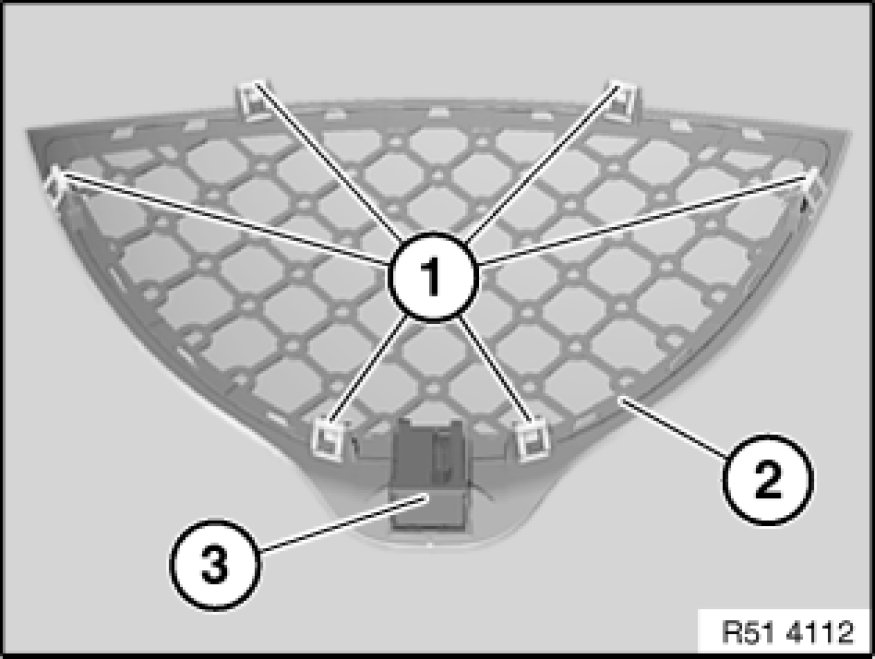

Retainers (1) on speaker frame (2) must not be damaged.

Replacement:

Remove solar sensor Service and Repair(3).
