51 16 200 Removing and Installing Storage Compartment

51 16 200 - Removing and installing storage compartment





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge





Necessary preliminary tasks:
- Remove trim for preselector lever (gear lever)
- Remove trim for storage compartment 51 16 212 Removing And Installing Trim For Center Console
- Remove central trim for instrument panel 51 45 310 Removing and Installing (Replacing) Centre Trim For Instrument Panel
- Remove rear seat Rear Seat - Normal
- Remove rear cup holder 51 16 204 Removing and Installing/Replacing Rear Cup Holder
Specification with telephone:
- Disconnect plug for eject box Removing and Installing/Replacing Eject Box





Fold rear centre armrest back.

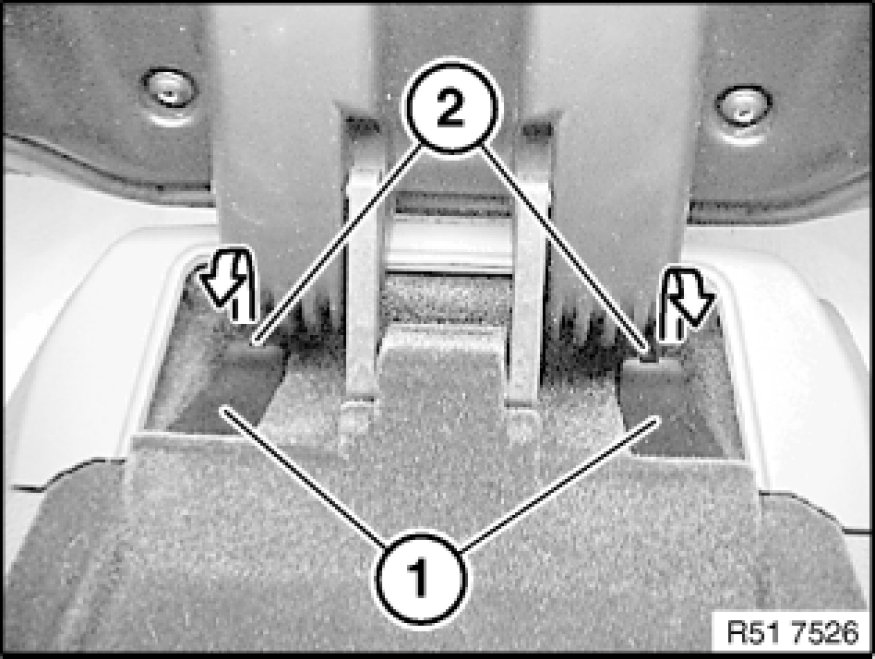

Unclip covers (1) on openings (2) in direction of arrows and release screws underneath.





Installation:

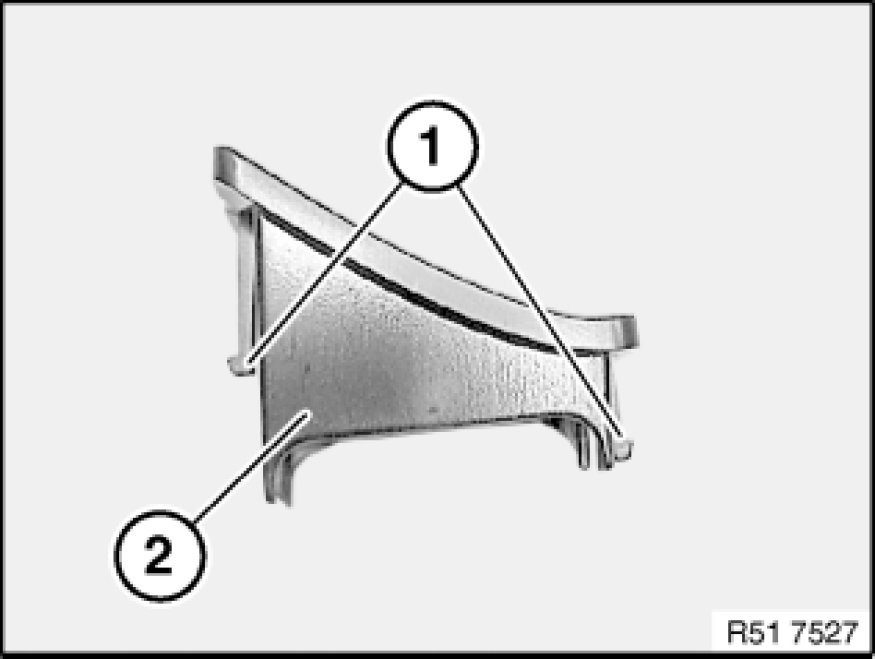

Catches (1) on cover (2) must not be damaged.

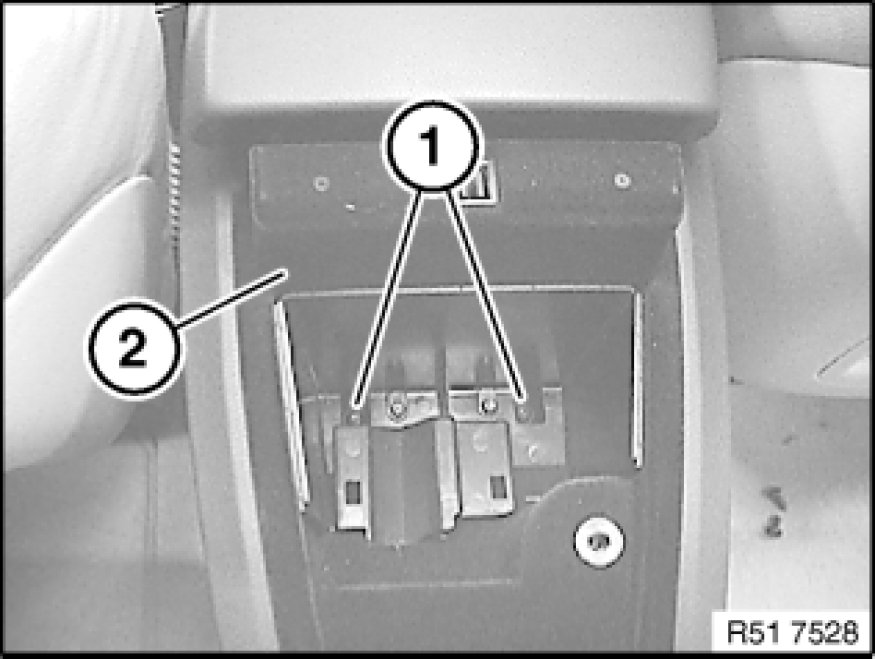

Release screws (1) on storage compartment (2).

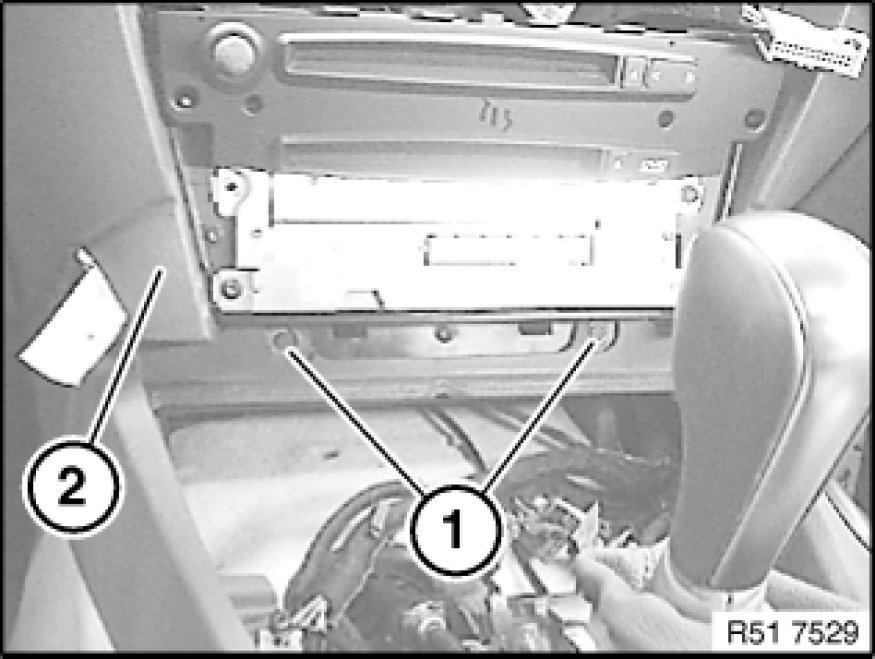

Release screws (1) on instrument panel (2).

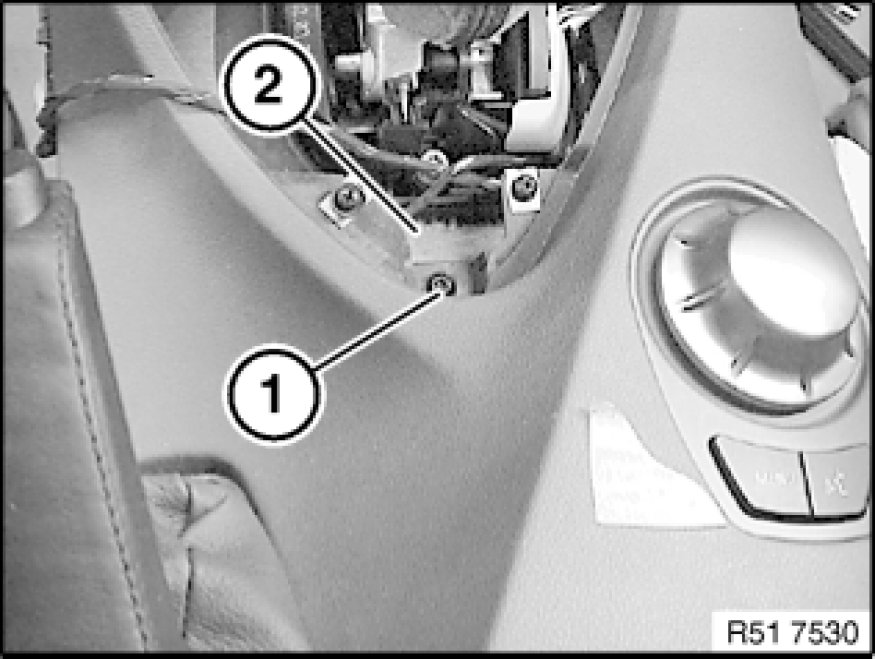

Release screw (1) on transmission tunnel (2).

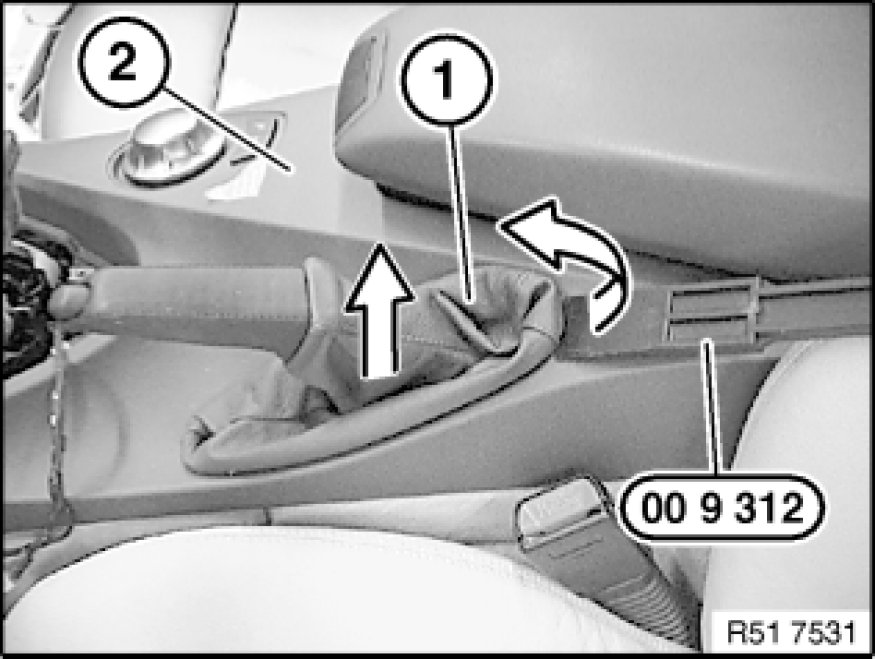

Unclip gaiter (1) upwards with special tool 00 9 317 00 9 317 Trim Panel Wedge.
Raise storage compartment (2) and if necessary disconnect plug connections from below.
Feed out storage compartment (2) past gaiter (1) and remove towards top rear.
