Home >> BMW >> 2007 >> M6 Convertible (E64) V10-5.0L (S85) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Console >> Service and Repair >> 51 16 ... Overview of Storage Compartment (Centre Console)

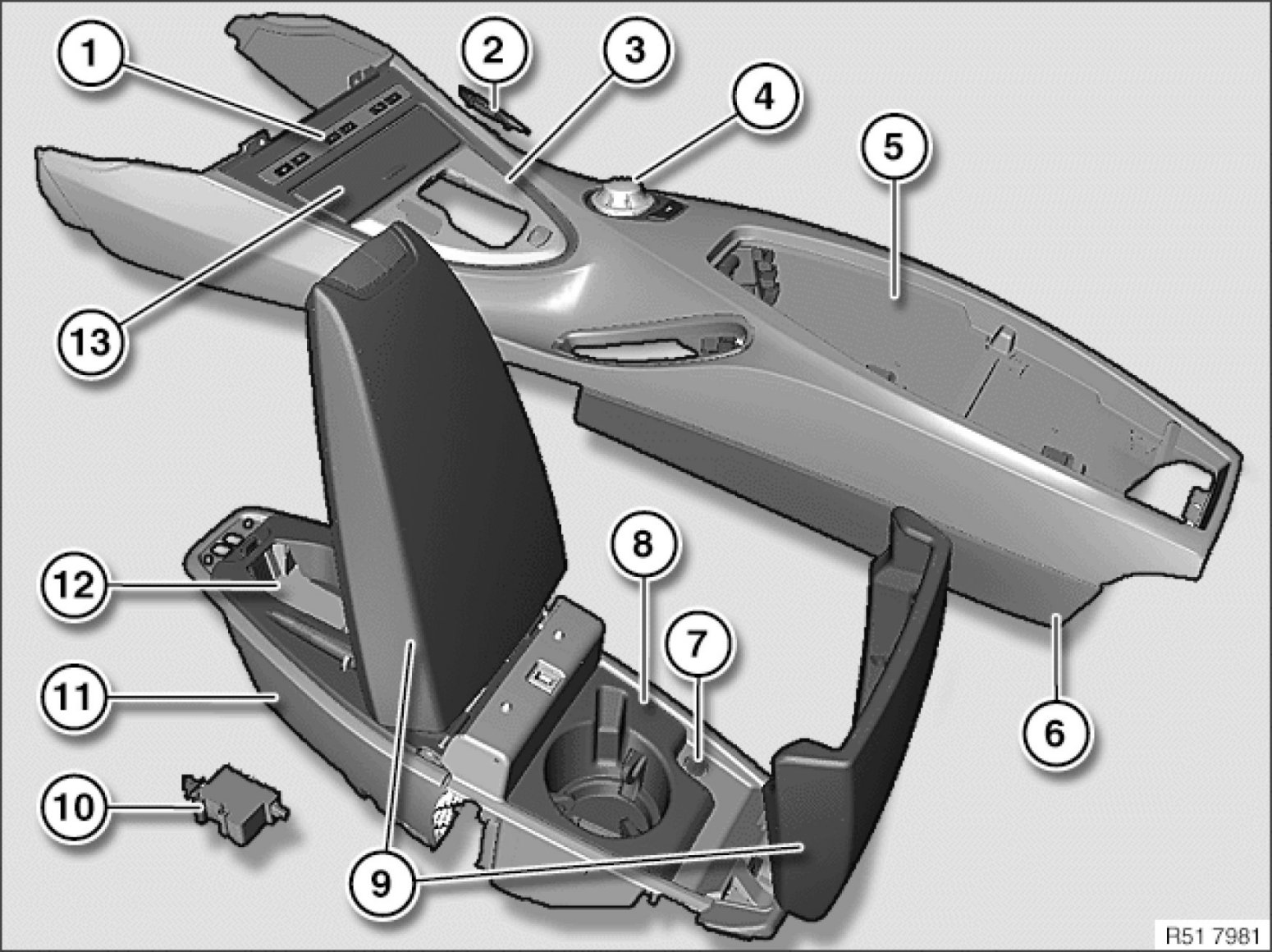

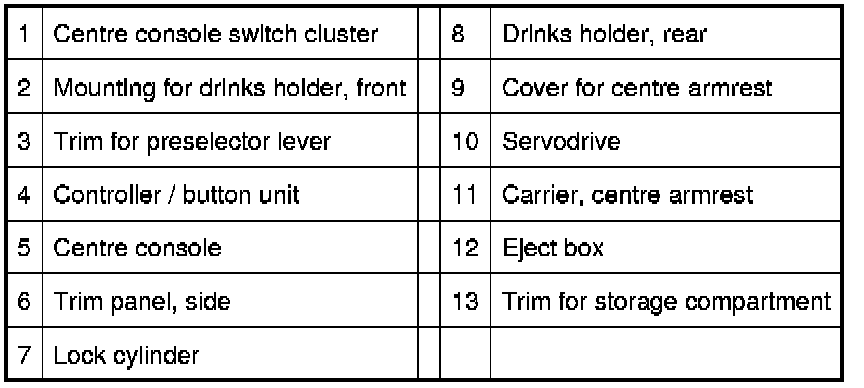

51 16 ... Overview of Storage Compartment (Centre Console)




51 16 .. - Overview of storage compartment (centre console)
